Fuel Filter: Locations

Fuel Filter:

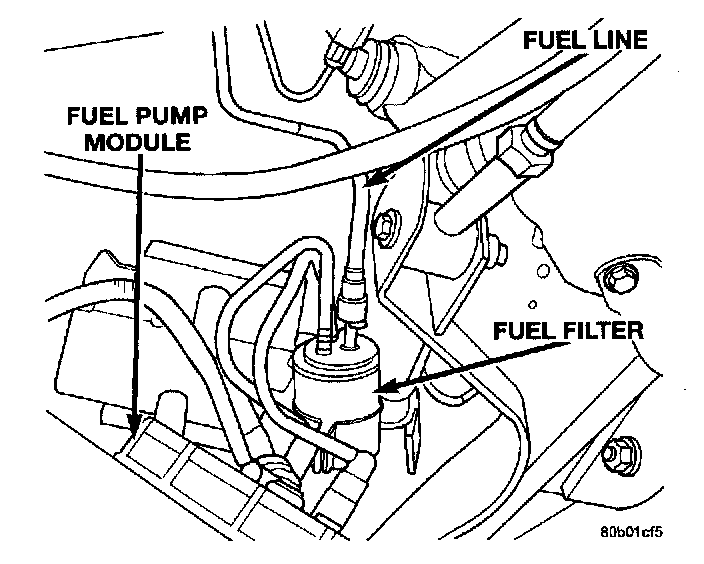

Fuel Pump Module/Fuel Filter:




The fuel filter mounts to the frame above the rear of the fuel tank.
