Home >> Chrysler >> 2000 >> Cirrus L4-2.4L VIN X >> Repair and Diagnosis >> Locations >> Connector Locations >> Figure 21

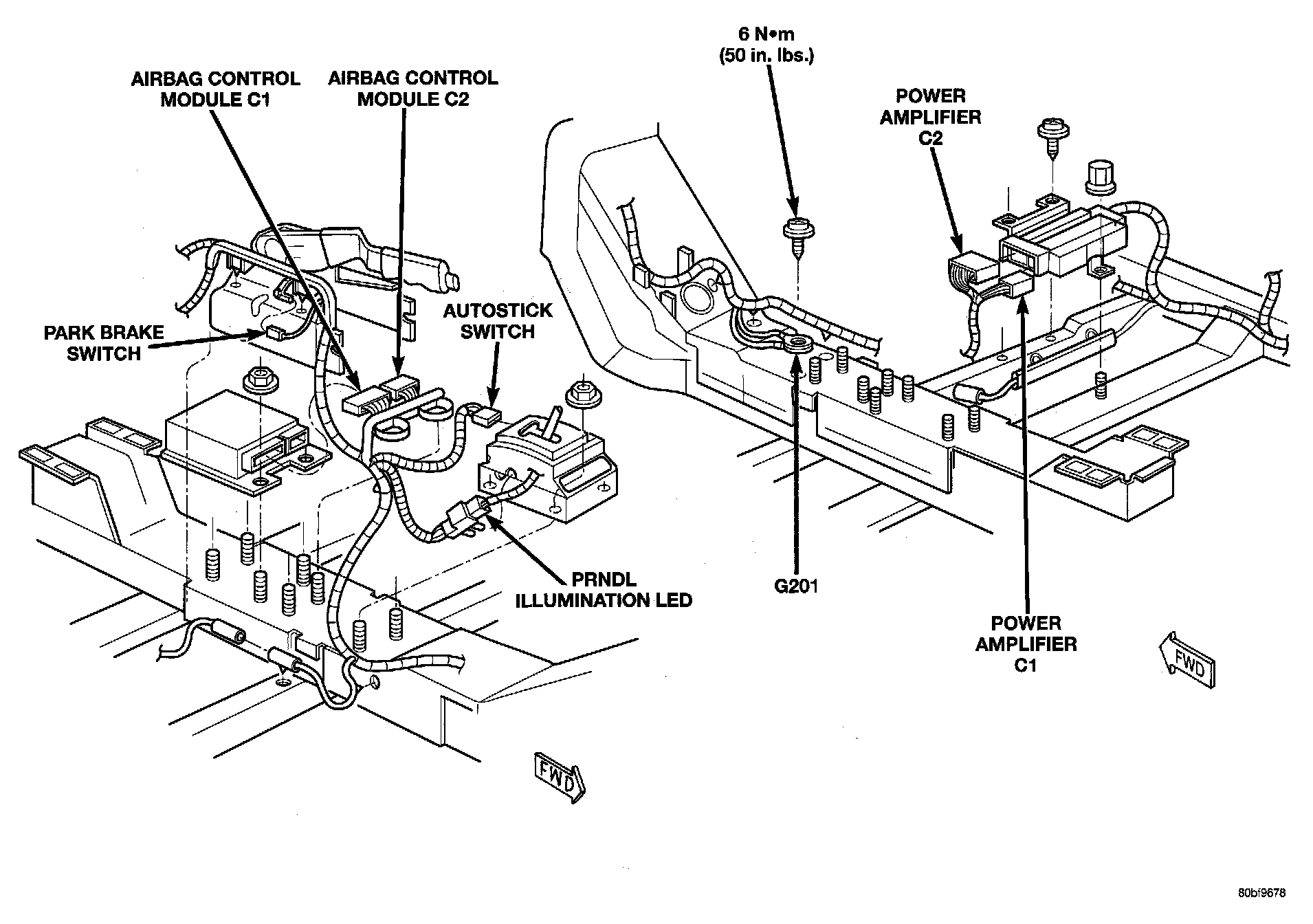

Figure 21

Console Connectors:
