Home >> Chrysler >> 2000 >> Cirrus L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signal Switch

Turn Signal Switch

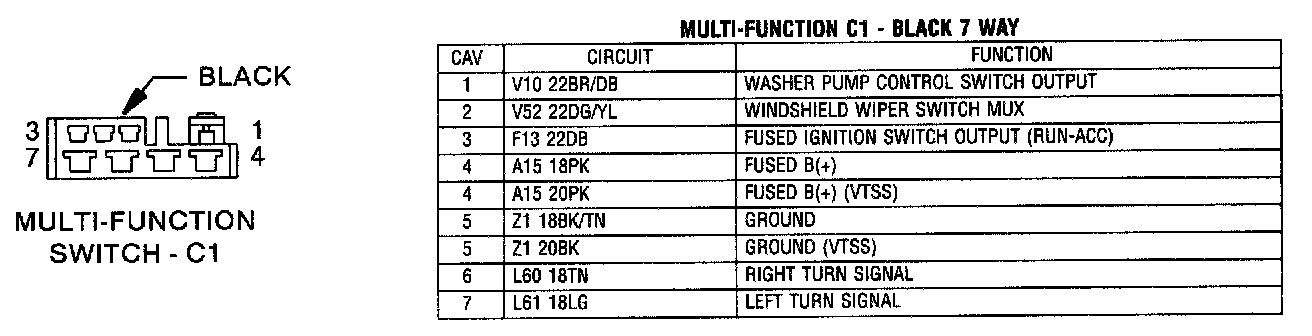

Multi-Function Switch - C1:
