Power Door Lock Switch
Power Door Lock Switch

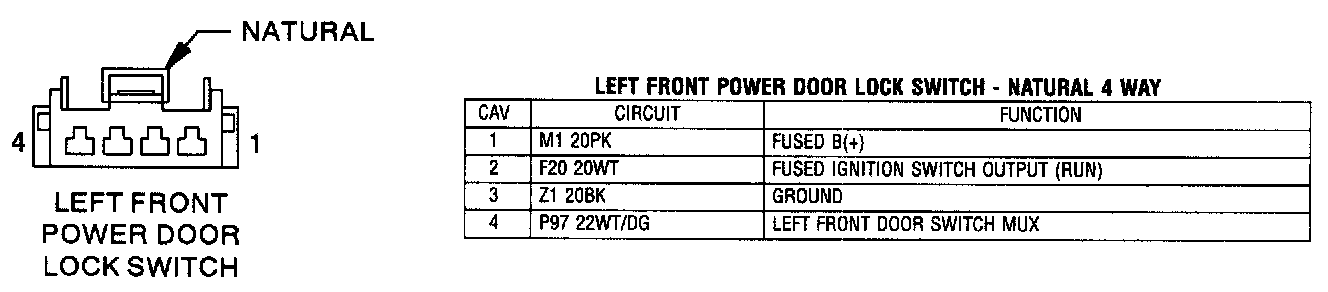

Left Front Power Door Lock Switch:

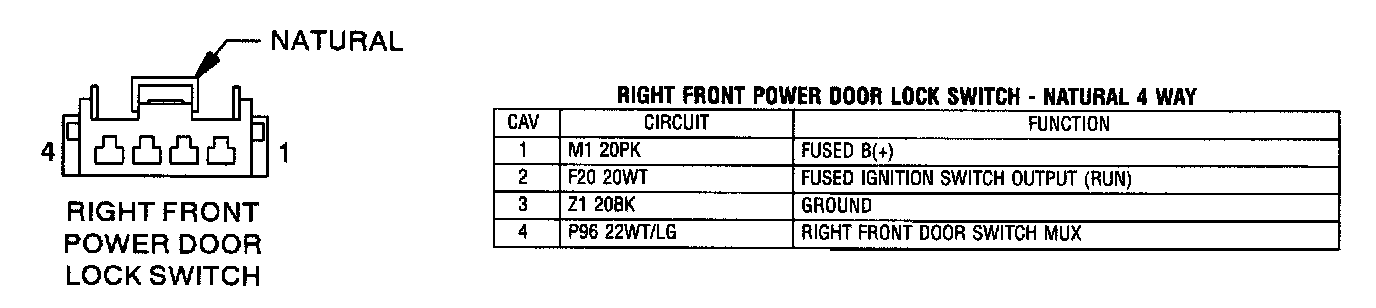

Right Front Power Door Lock Switch:
