Lock Cylinder Switch

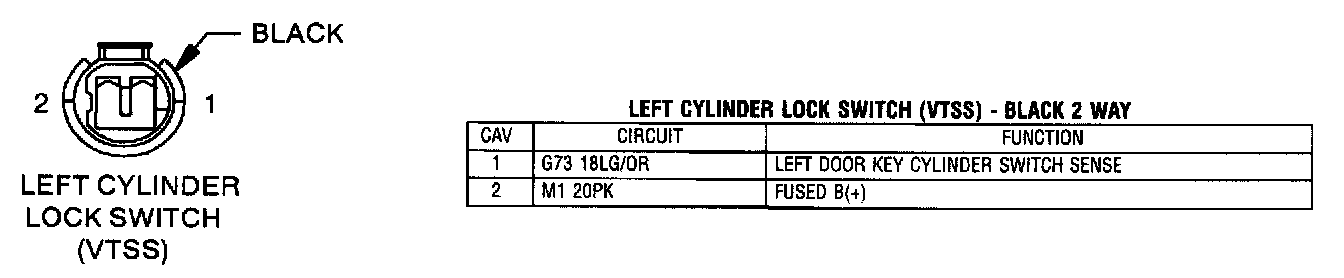

Left Cylinder Lock Switch (VTSS):

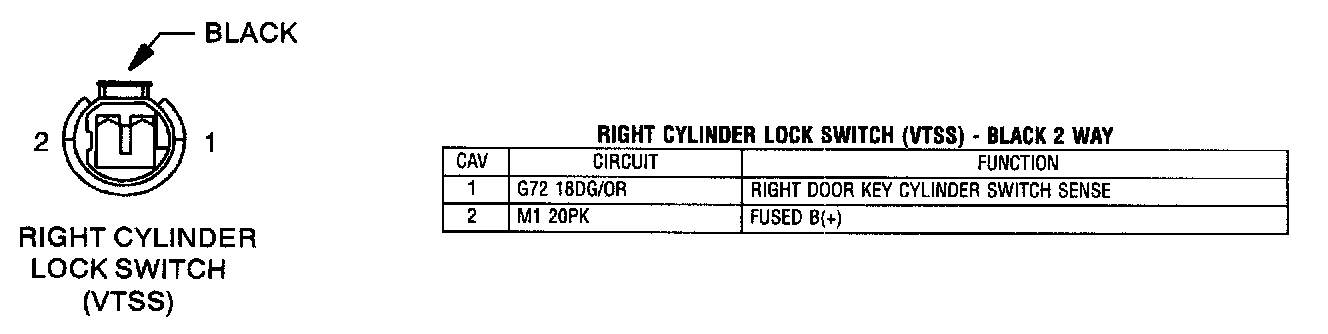

Right Cylinder Lock Switch(VTSS):

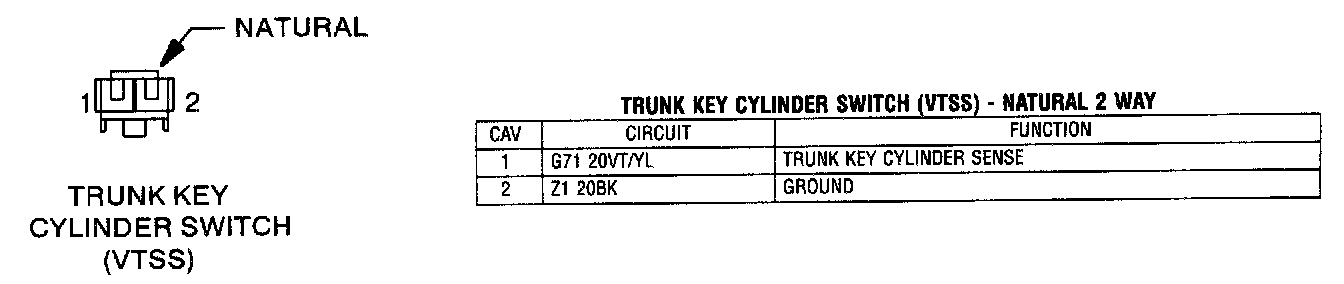

Trunk Key Cylinder Switch(VTSS):
