Checking Speed Control Set/Resume Switch

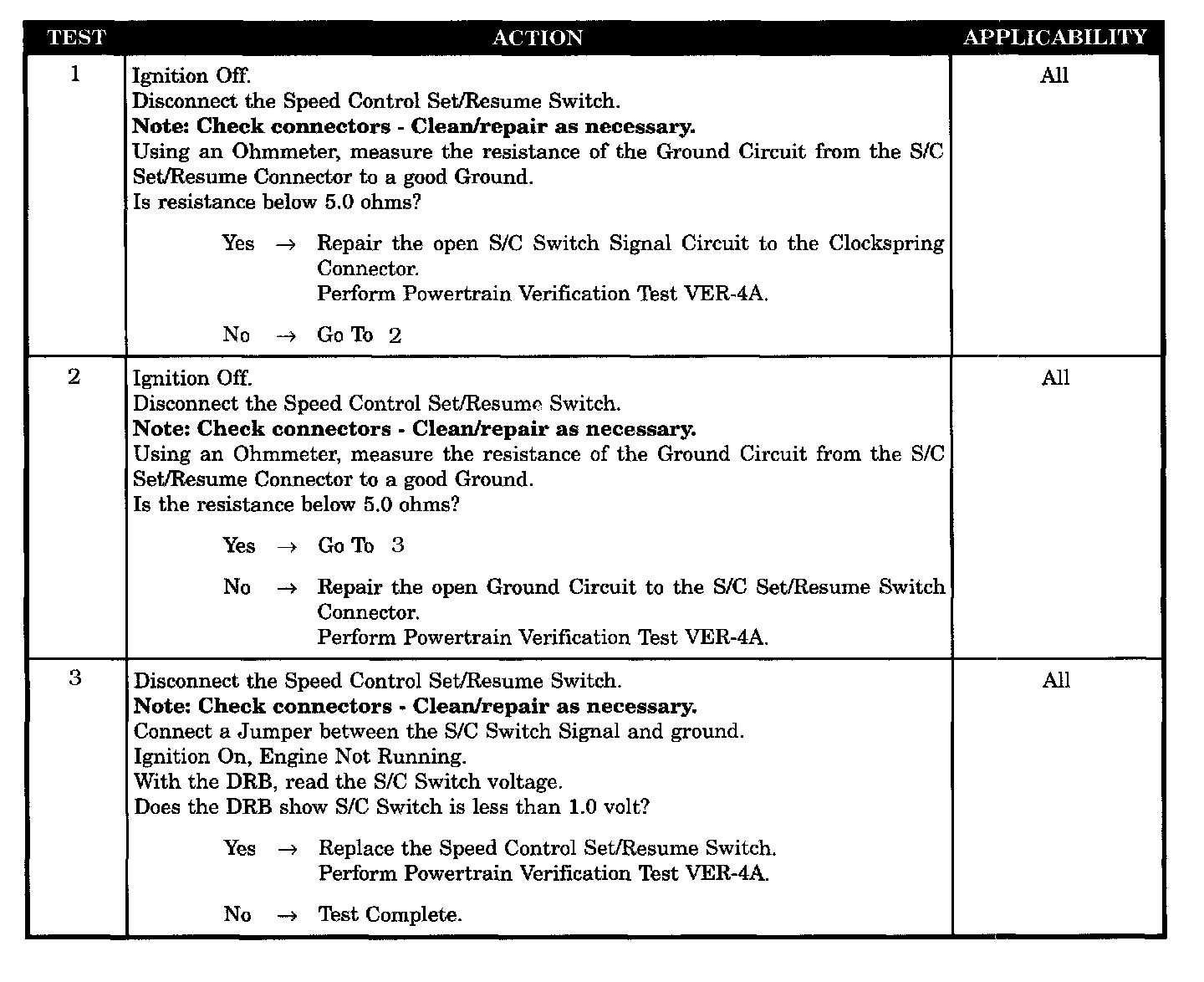

Tests 1 - 3:




SYMPTOM
SPEED CONTROL SET/RESUME SWITCH

POSSIBLE CAUSES
^ S/C switch signal circuit to clockspring connector open
^ Ground circuit to S/C SET/RESUME switch connector open
^ Speed control SET/RESUME switch defective
