Knock Sensor: Locations

Knock Sensor:

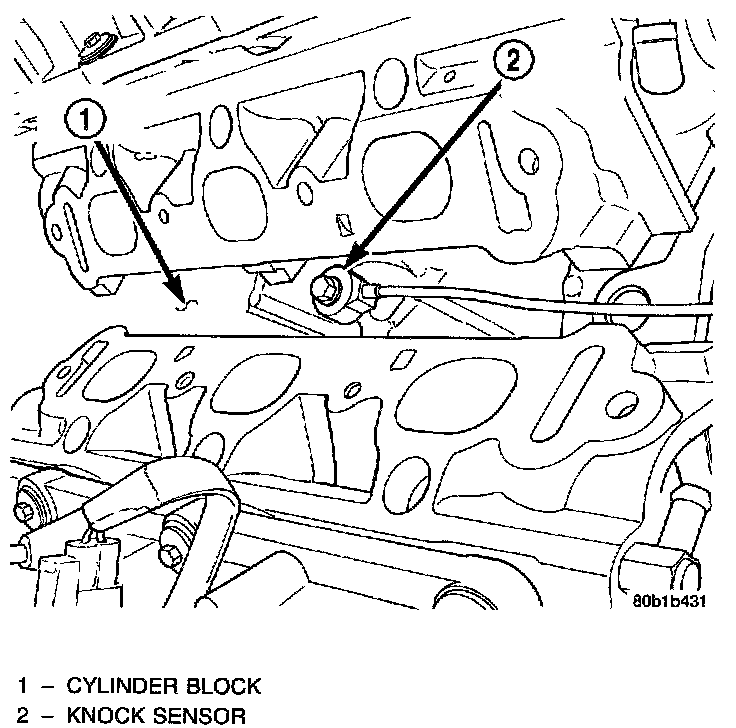

The knock sensor screws into the cylinder block, directly below the intake manifold.
