Home >> Chrysler >> 1999 >> Sebring V6-2.5L VIN N >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Radiator

Radiator

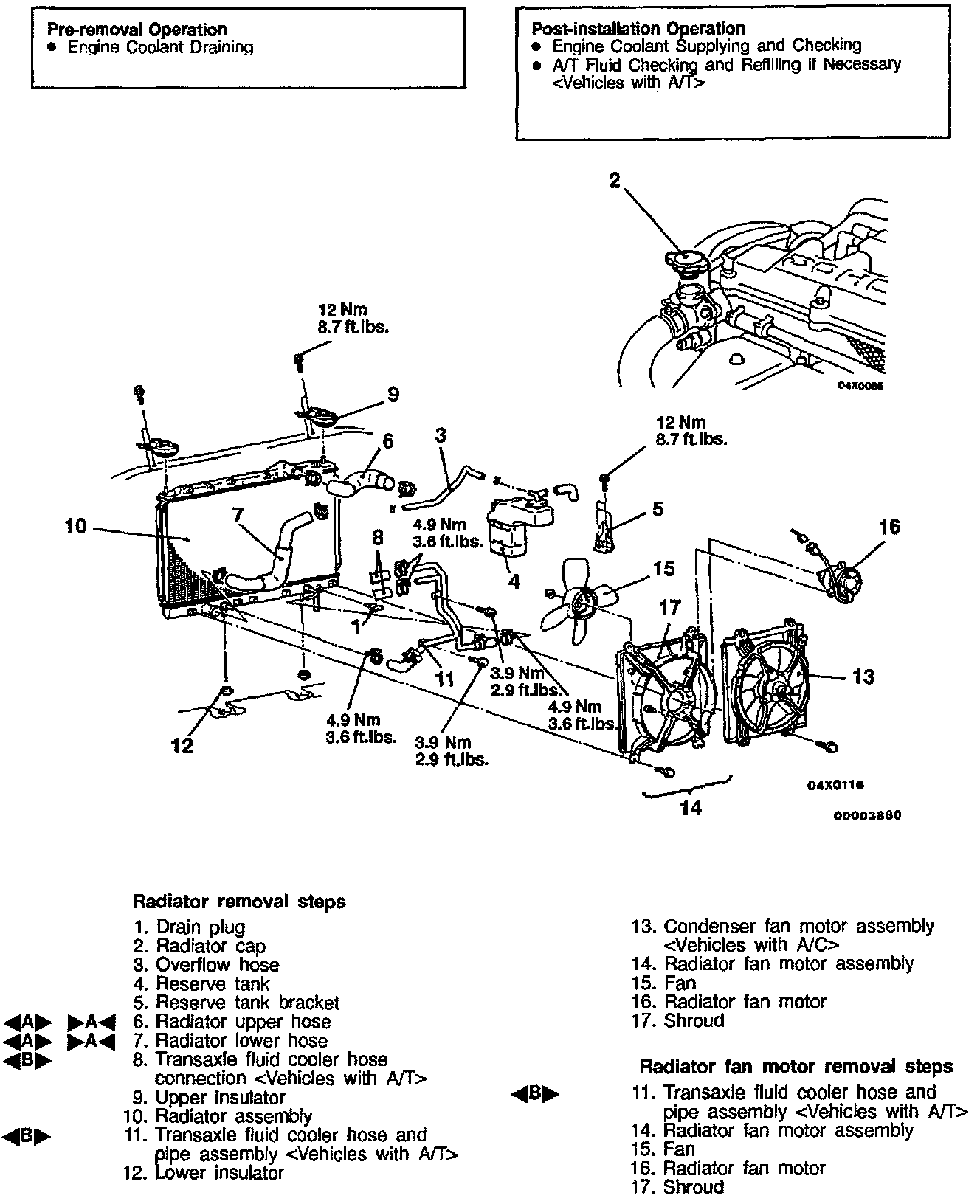

Part 1 Of 2:

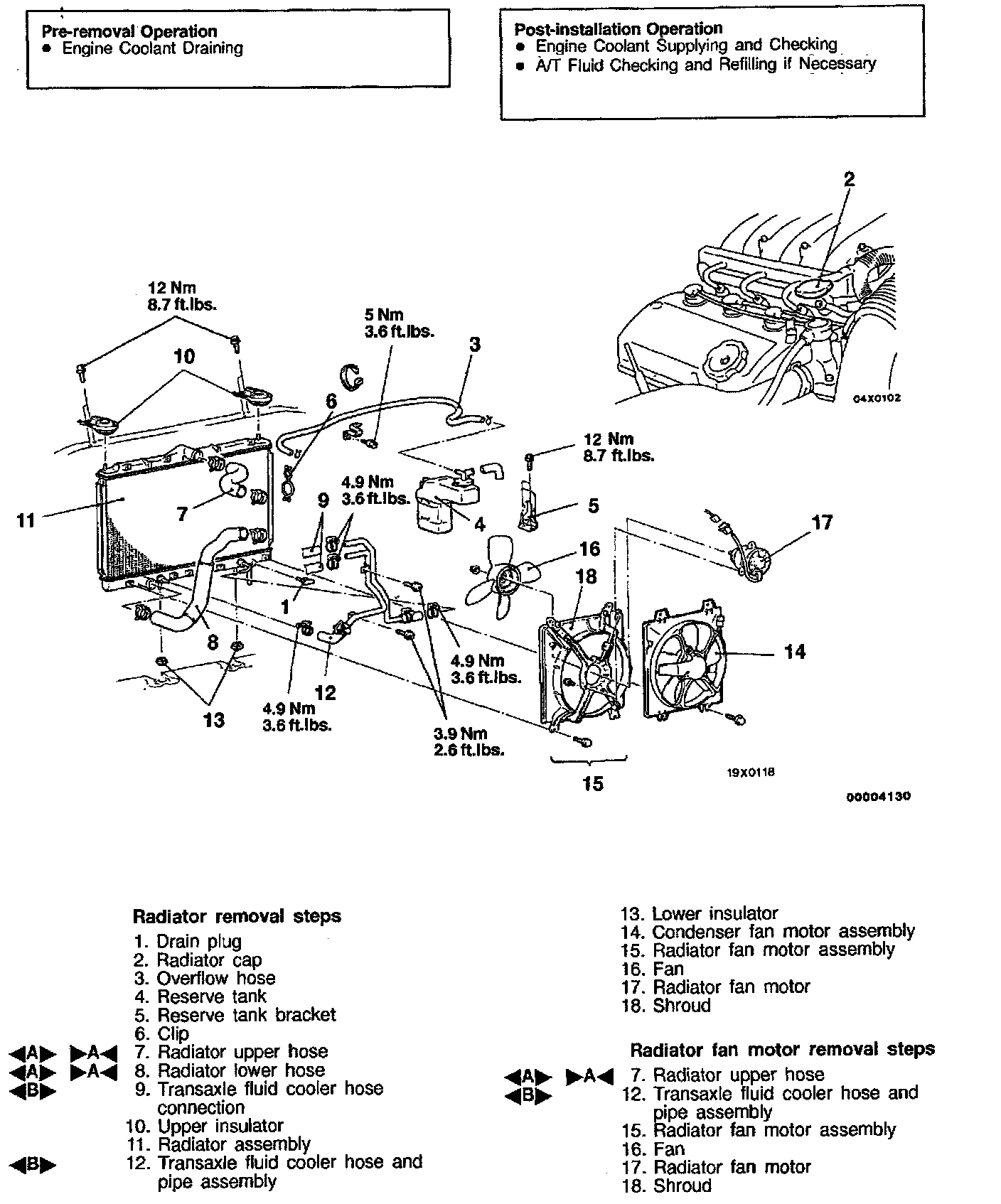

Part 2 Of 2:
