Timing Component Alignment Marks: Locations

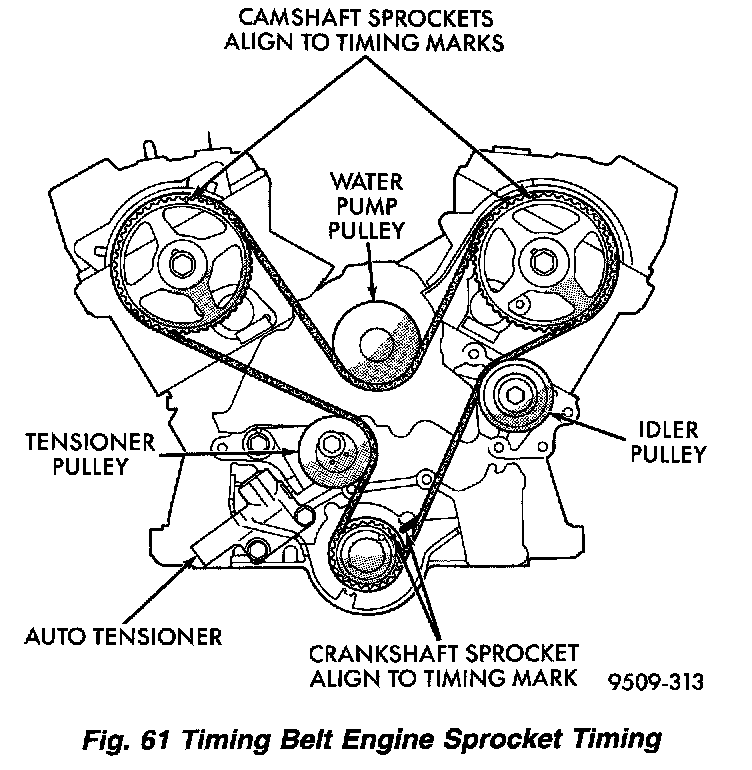

Figure 61:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information:Service and Repair
