Home >> Chrysler >> 1999 >> Sebring Convertible L4-2.4L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Control Module, A/T

Control Module, A/T

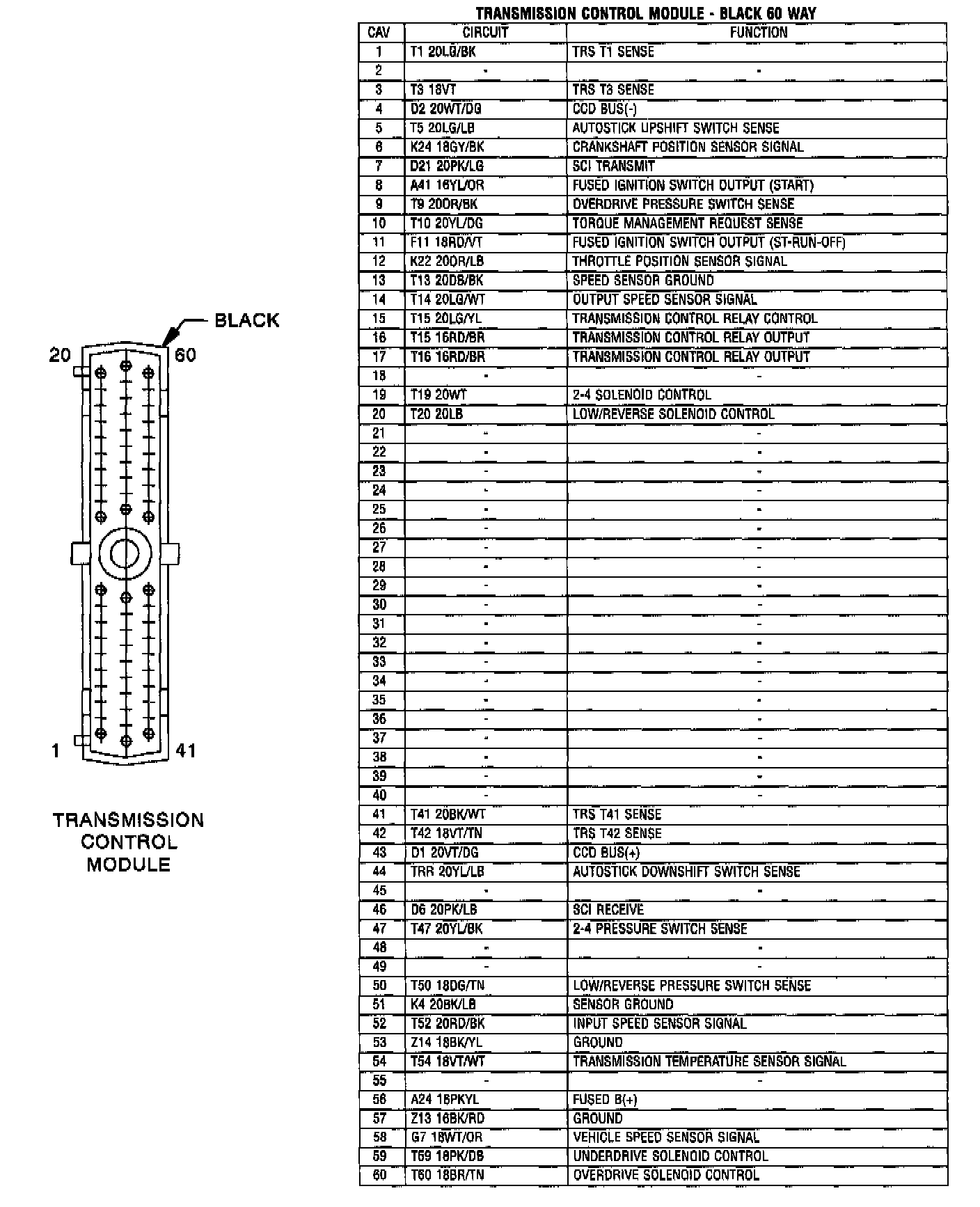

Transmission Control Module Black 60 Way:
