Home >> Chrysler >> 1999 >> Cirrus V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Timing Components

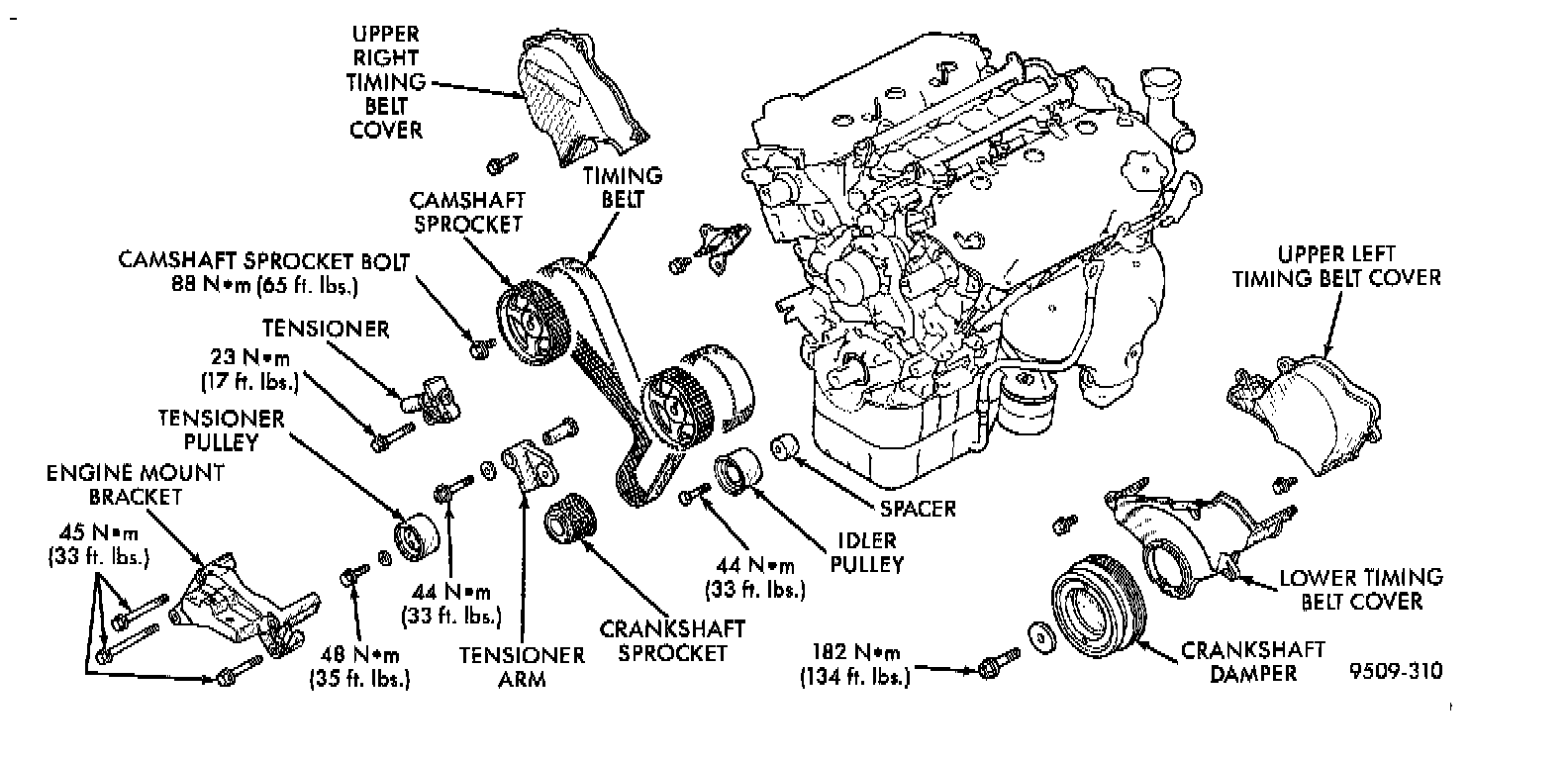

Timing Components

Timing Belt System:
