Main Relay (Computer/Fuel System): Diagrams

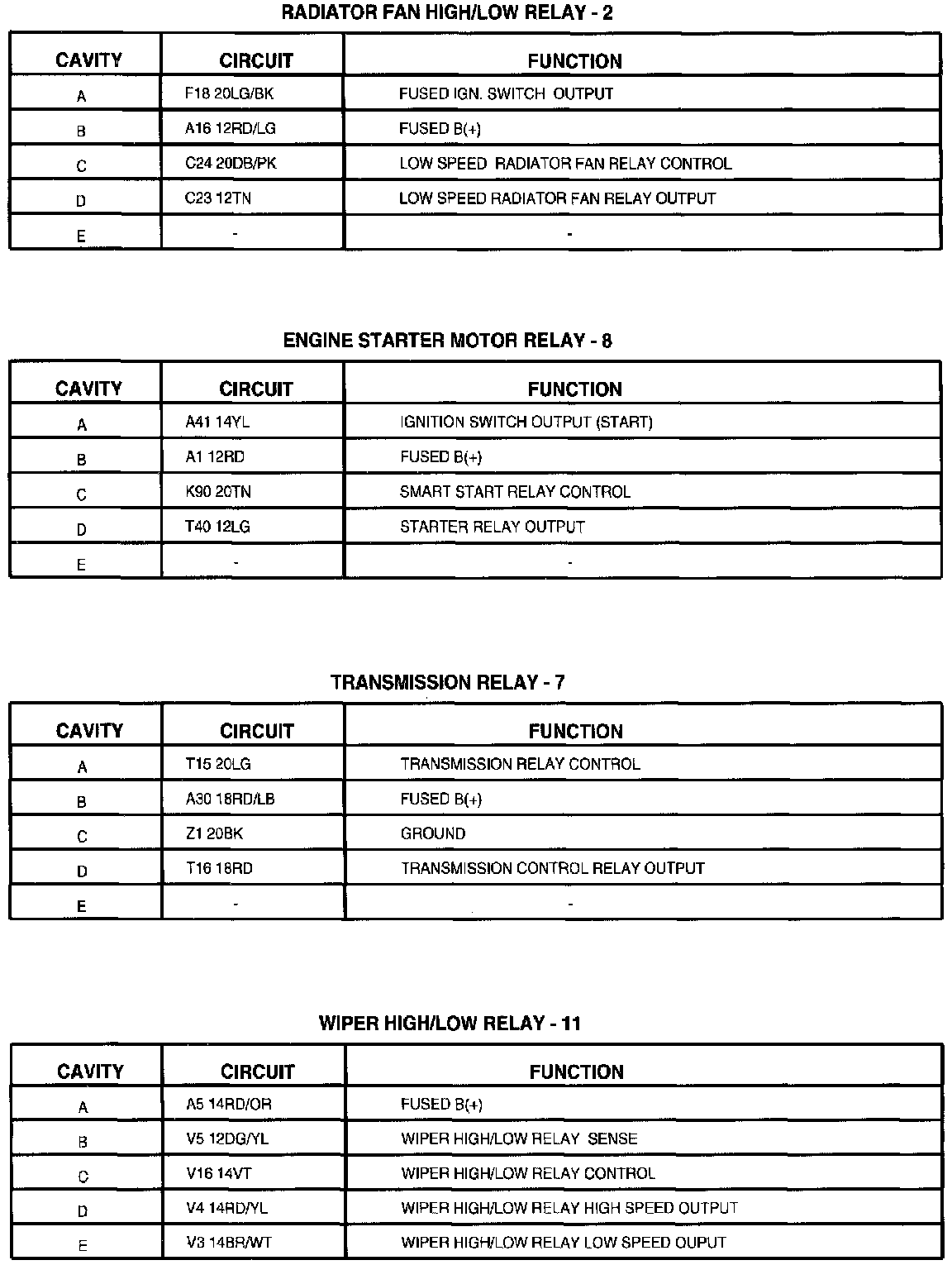

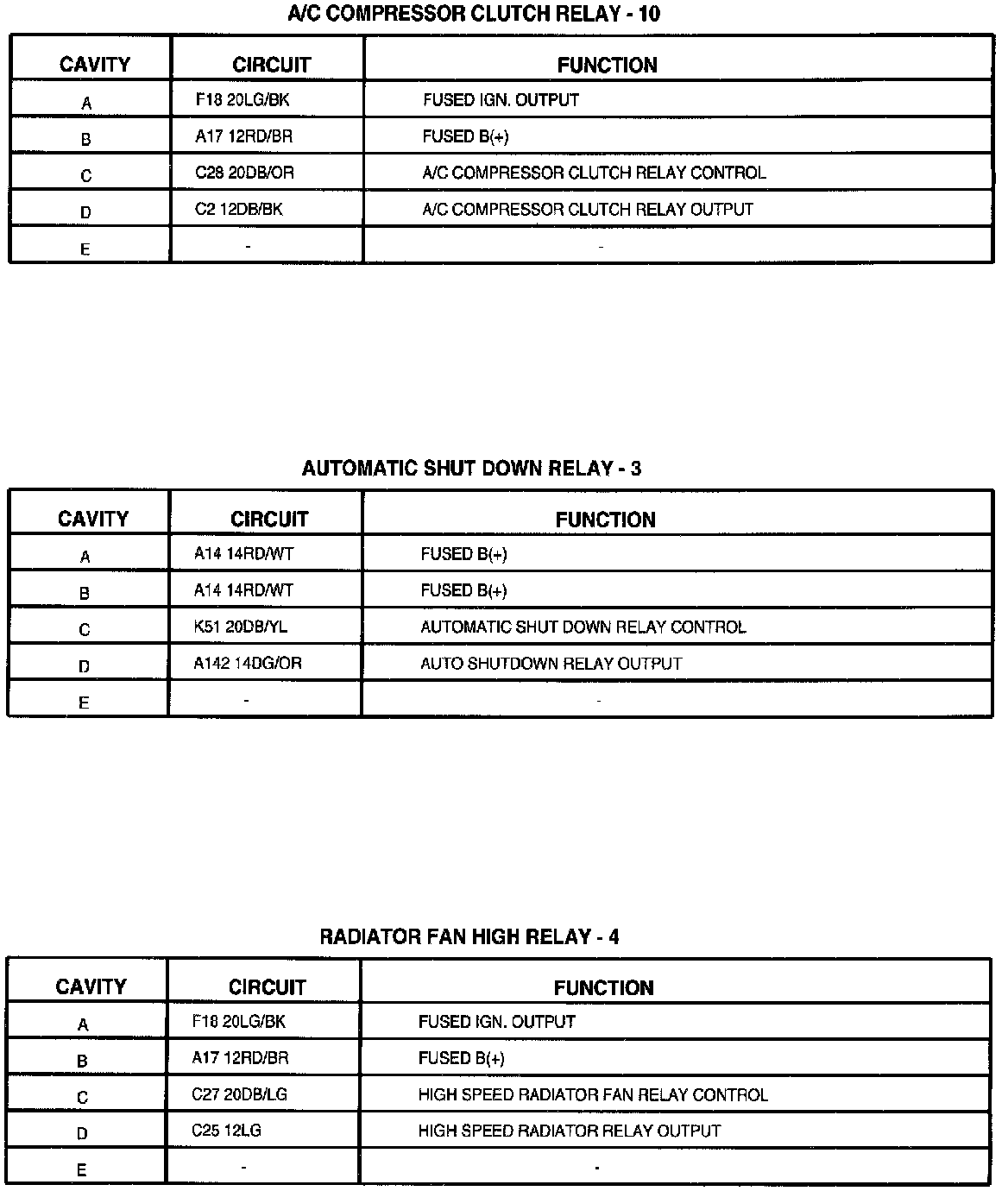

Power Distribution Center, ASD Relay Connector:

Power Distribution:

Power Distribution:

Power Distribution:
