Home >> Chrysler >> 1998 >> Concorde V6-3.2L VIN J >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Schematic Diagrams >> Automatic Temperature Control

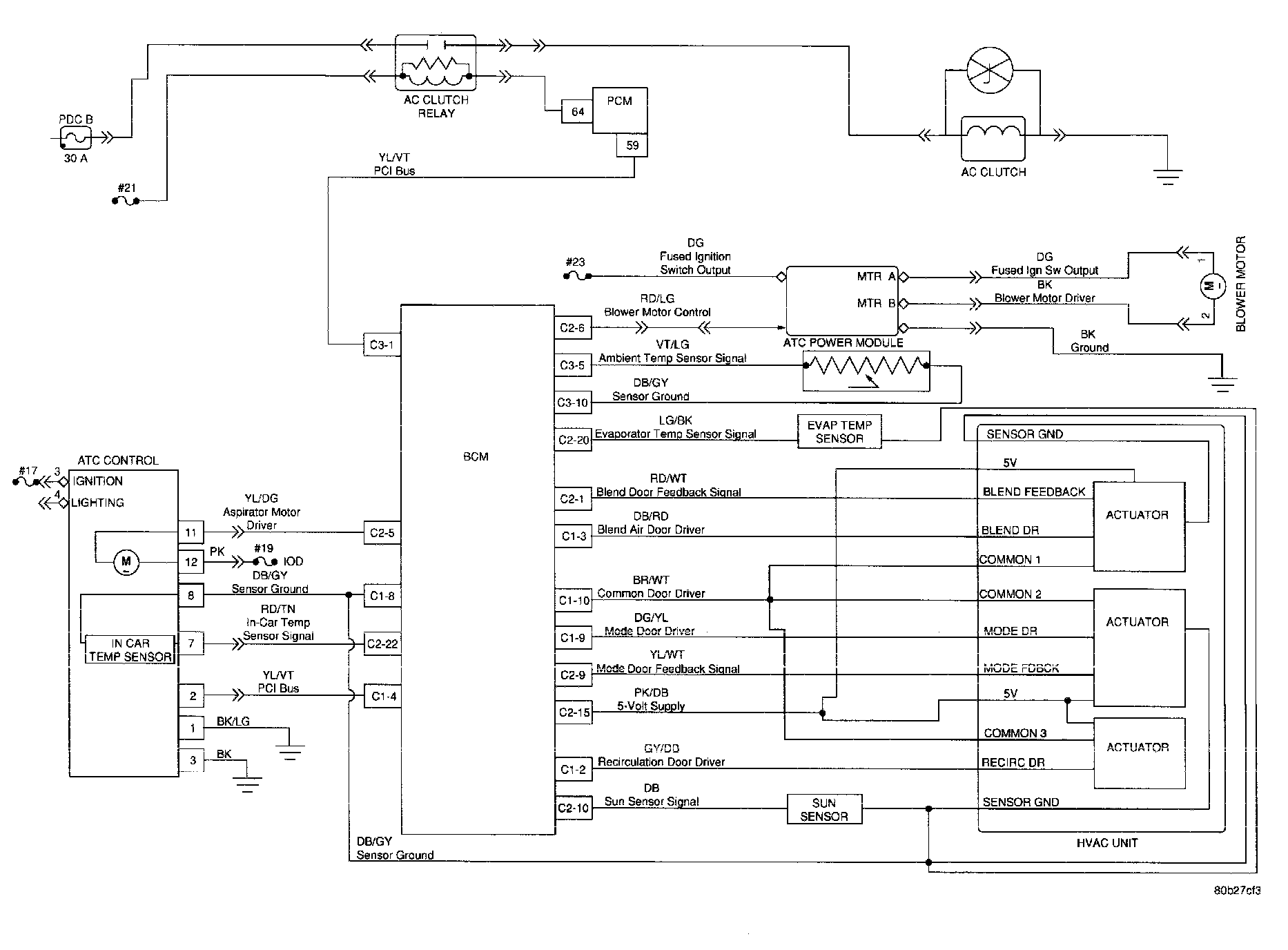

Automatic Temperature Control

Automatic Temperature Control:
