Home >> Chrysler >> 1998 >> Concorde V6-3.2L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Powertrain Management >> Engine Control Module

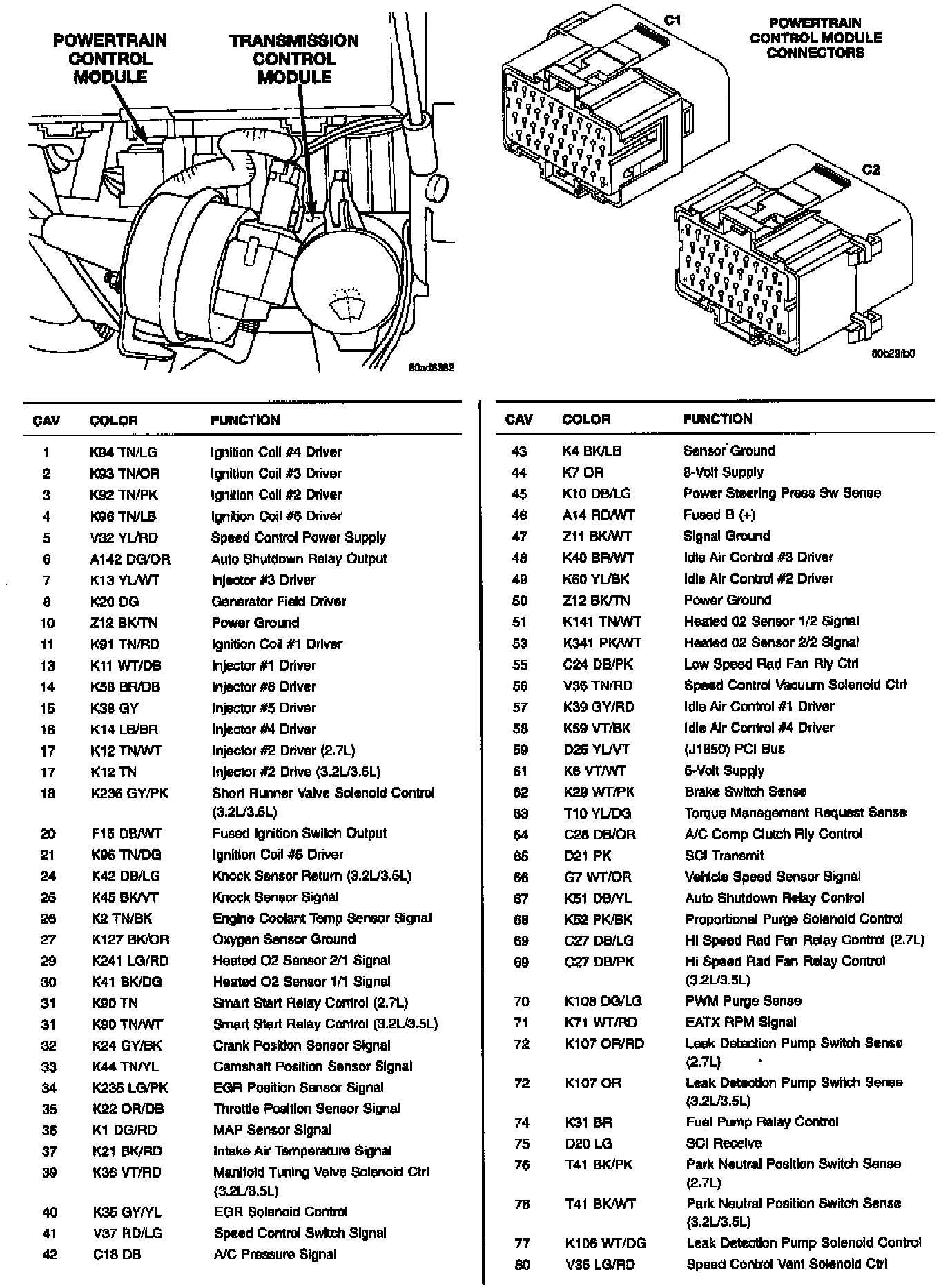

Engine Control Module

Powertrain, Body And Trans Control Modules:
