Transmission Control Systems
Transmission Control Systems

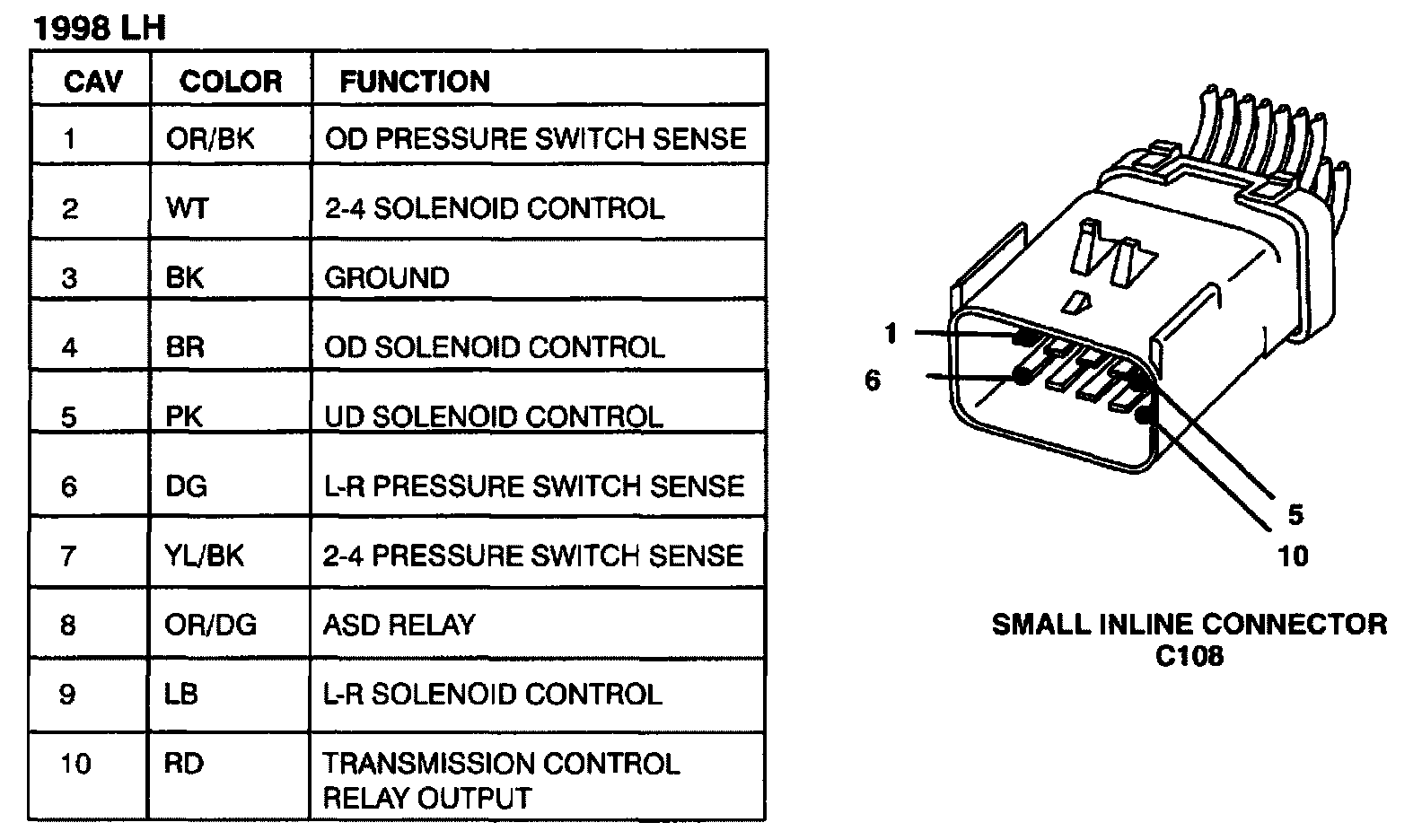

In-line 10 Way (Harness Side):

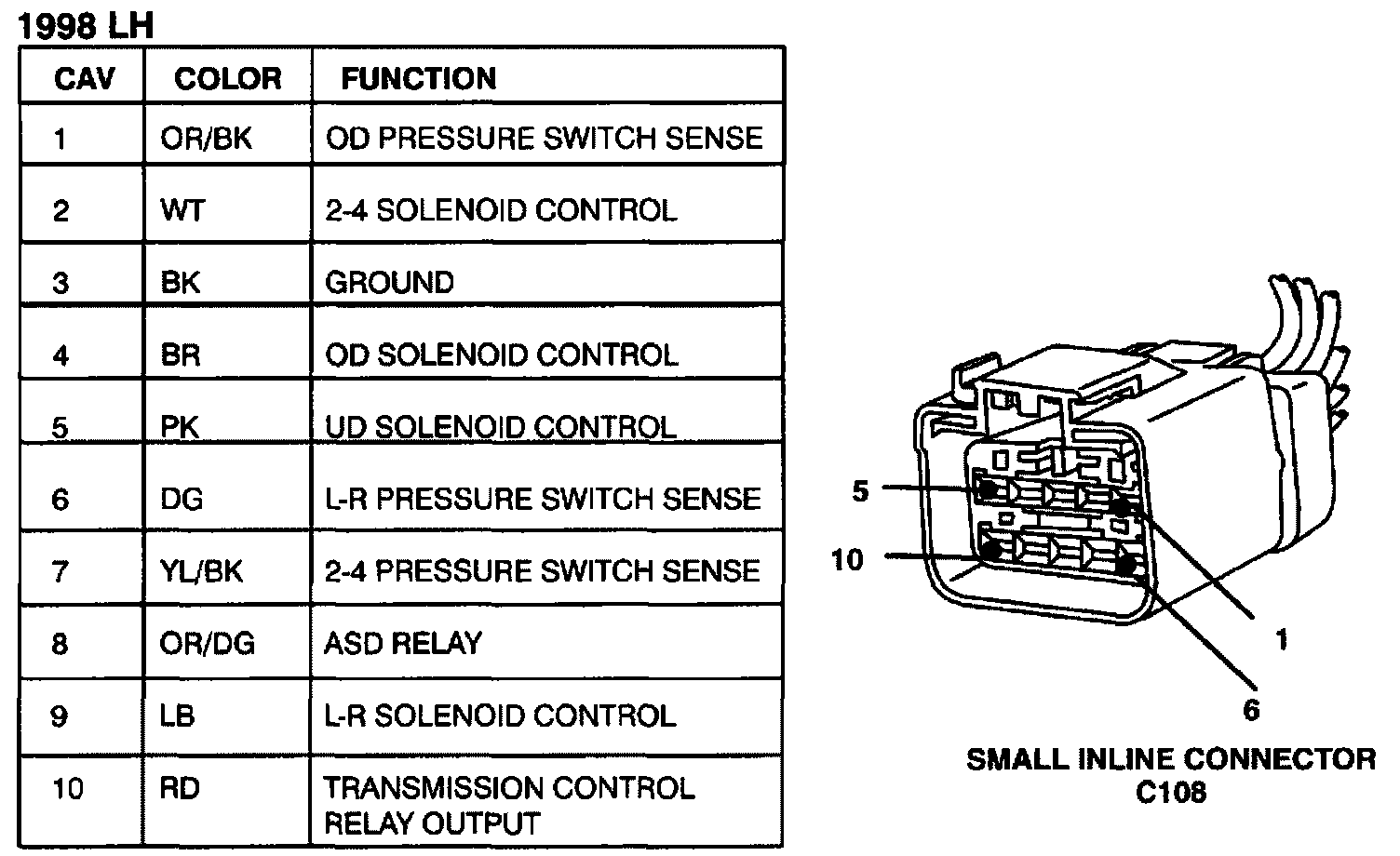

In-line 10 Way (Transmission Side):

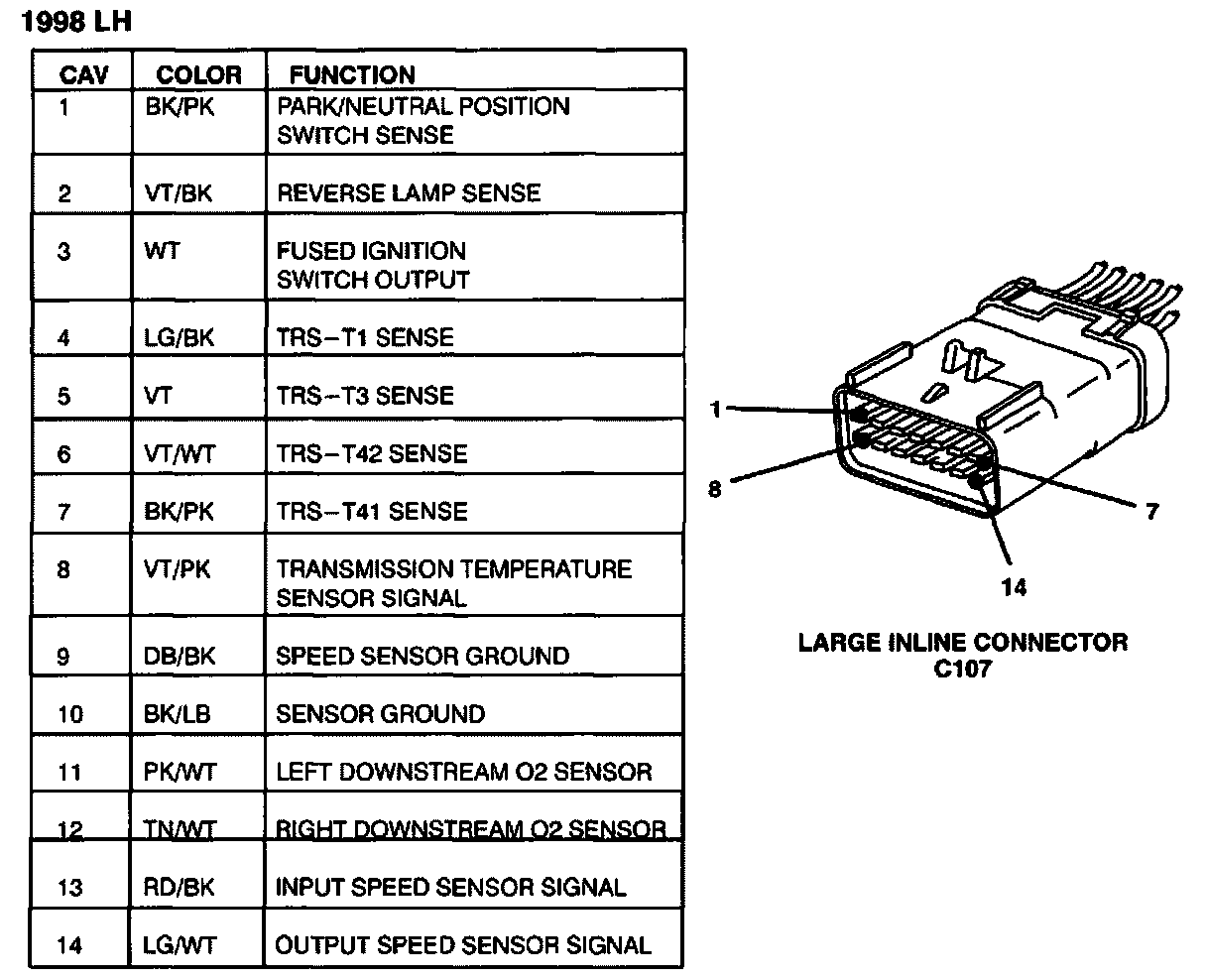

In-line 14 Way (Harness Side):

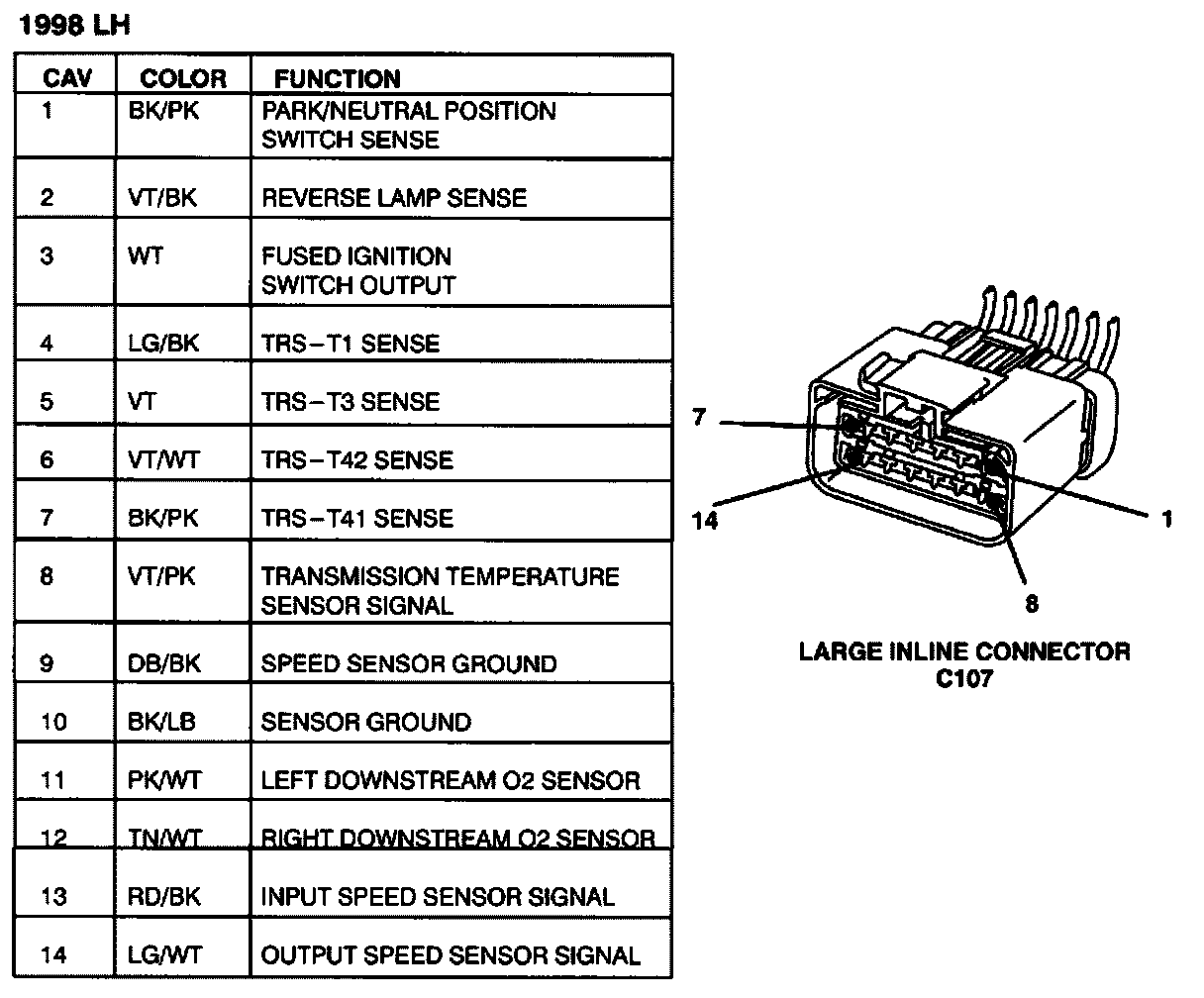

In-line 14 Way (Transmission Side):
