Home >> Chrysler >> 1997 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seat Belt Control Module

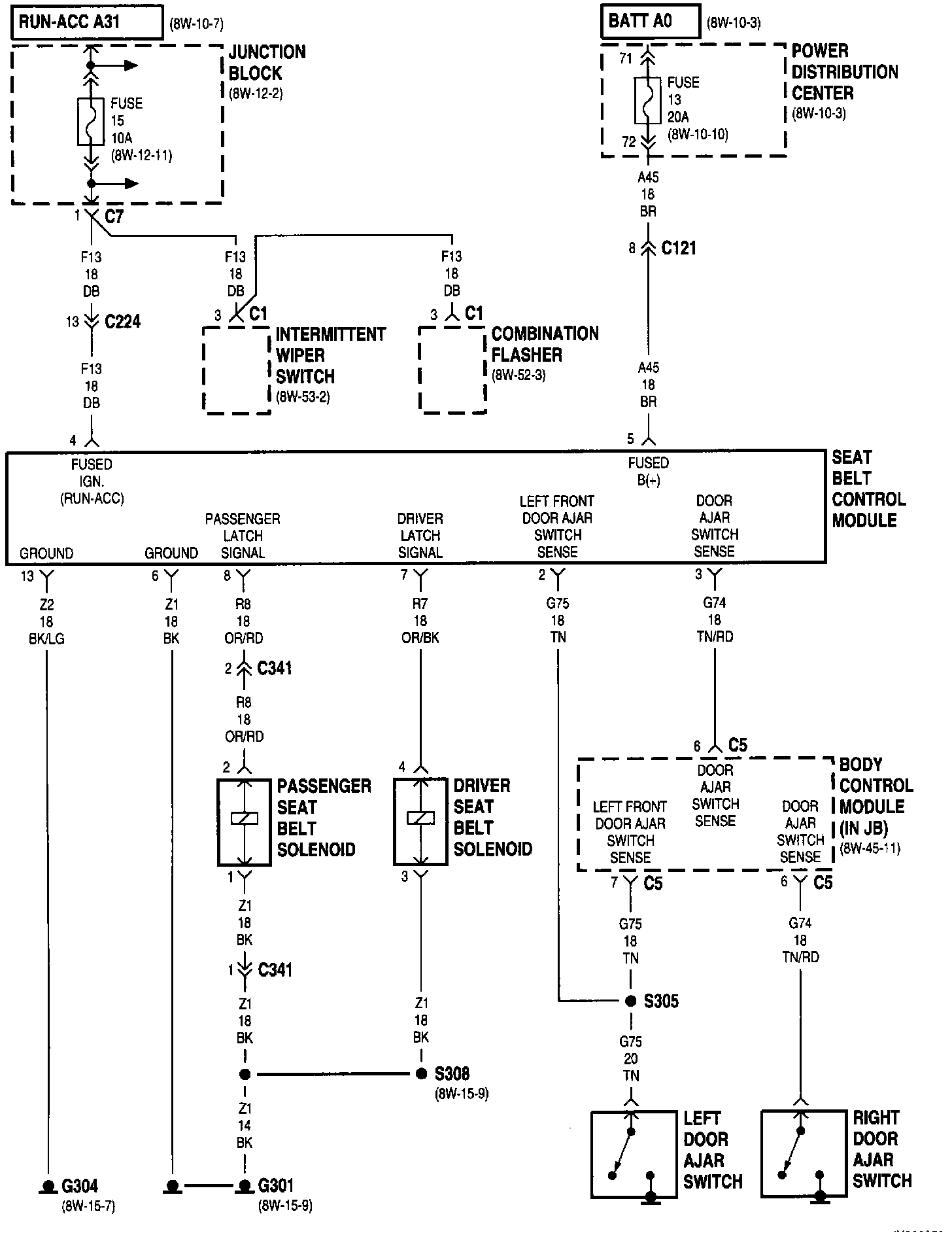

Seat Belt Control Module

Restraint System:
