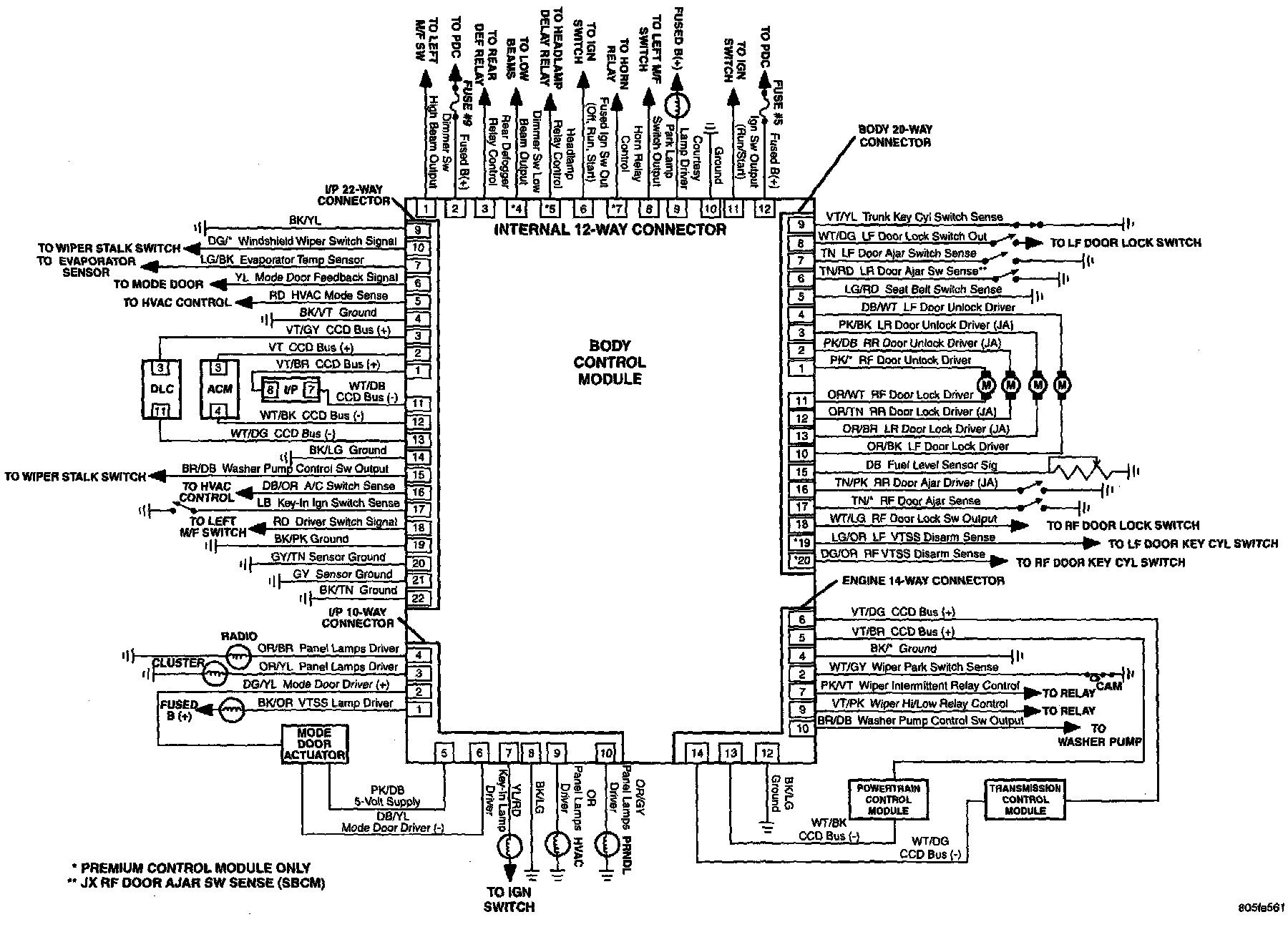

Home >> Chrysler >> 1997 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Block Diagrams
