Power Seat Switch Inspection (Testing Continuity)

Operate the power seat switch to check continuity. See Fig 1 .

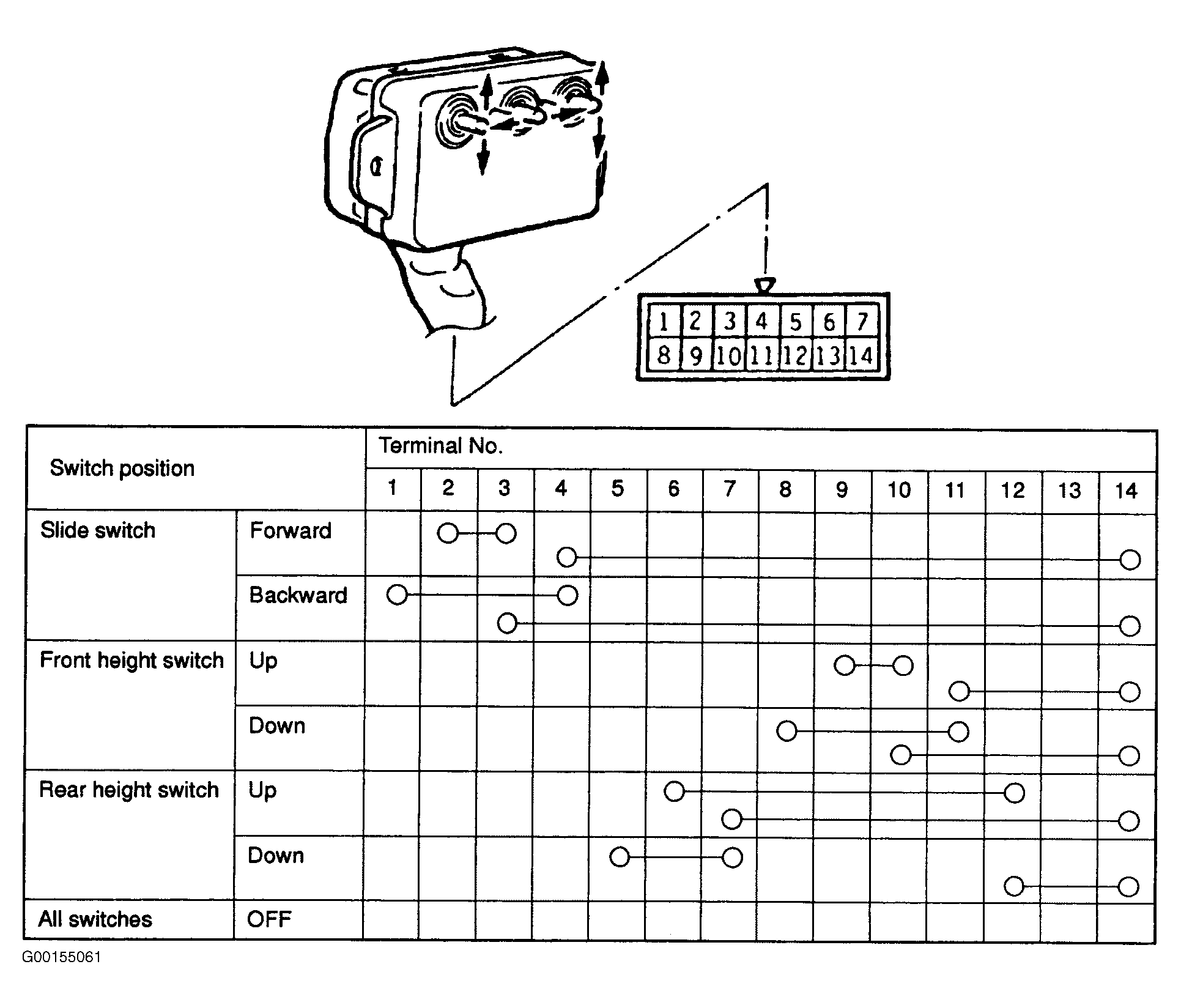

Fig 1: Testing Switch Continuity

G00155061

Courtesy of CHRYSLER CORP.
