Connector Identification

CONNECTOR IDENTIFICATION

Connector	See Fig.
Brakelight Switch	Fig. Fig 1
Clockspring	Fig. Fig 2
Cruise Control Relay	Fig. Fig 3
Cruise Control Servo	Fig. Fig 4
Cruise Control Switches	Fig. Fig 5
Data Link Connector	Fig. Fig 6
Manual Valve Lever Position Switch (MVLPS)	Fig. Fig 7
Powertrain Control Module (PCM)	Fig. Fig 8

Fig 1: Identifying Brakelight Switch Connector Terminals

G95H14487

Courtesy of CHRYSLER CORP.

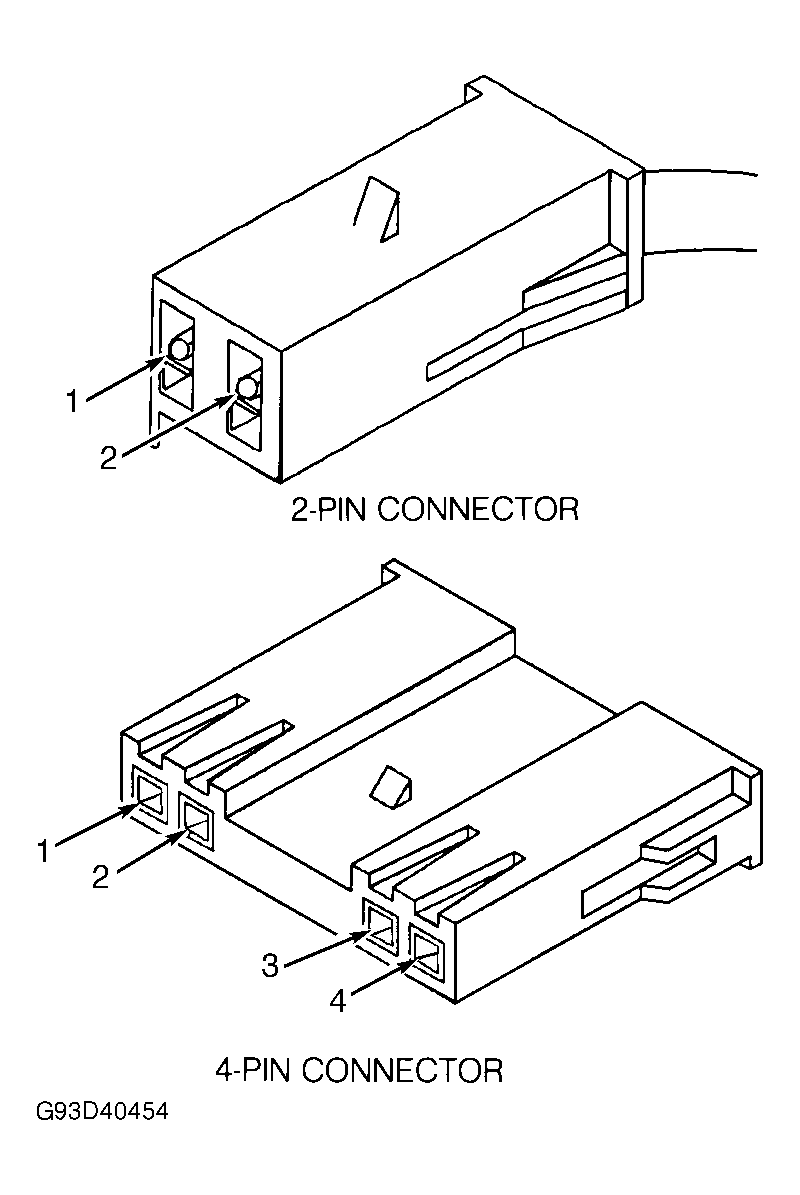

Fig 2: Identifying Clockspring Connector Terminals

G93D40454

Courtesy of CHRYSLER CORP.

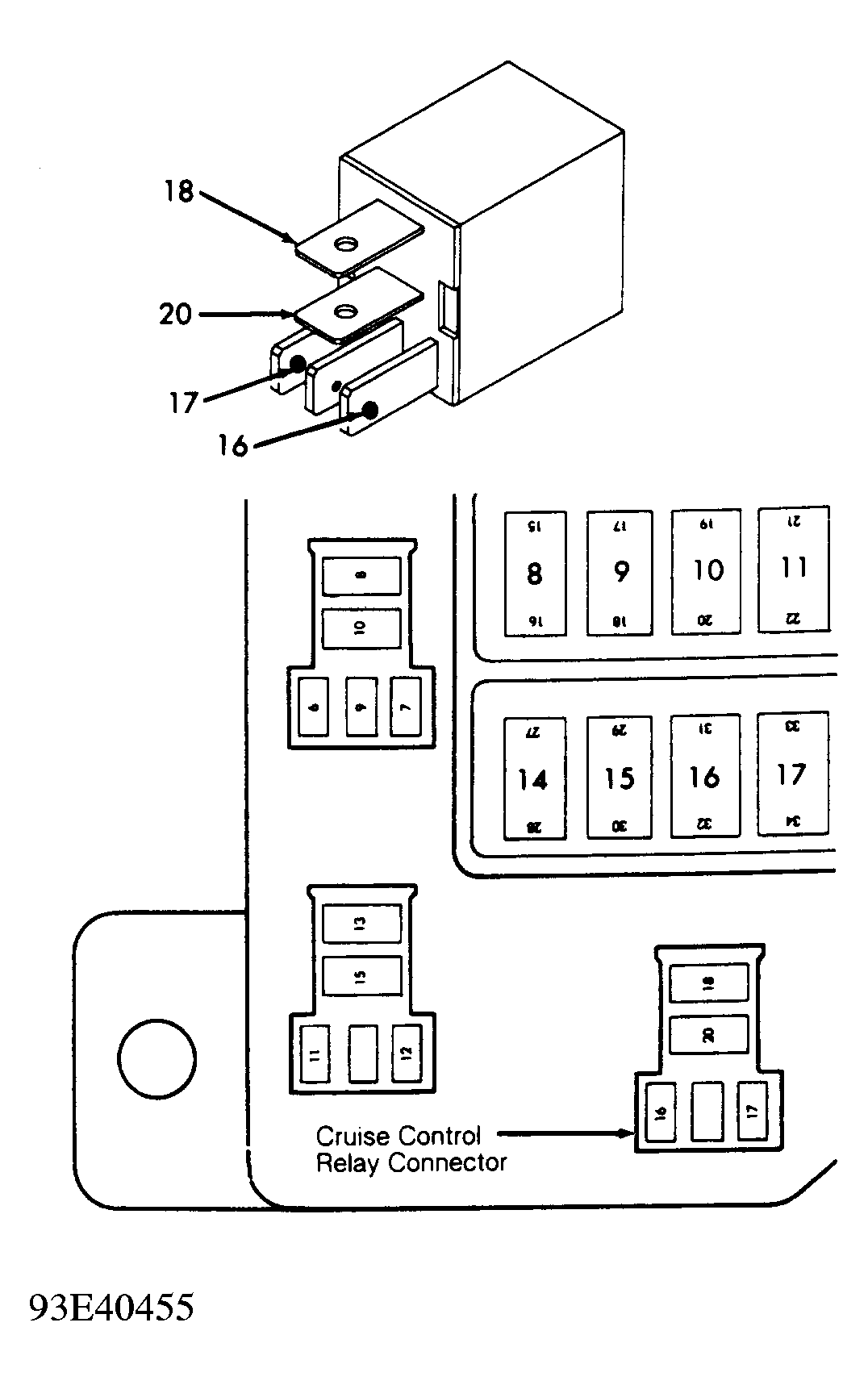

Fig 3: Identifying Cruise Control Relay Connector Terminals

G93E40455

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Cruise Control Servo Connector Terminals

G93F40456

Courtesy of CHRYSLER CORP.

Fig 5: Identifying Cruise Control Switches Connector Terminals

G93G40457

Courtesy of CHRYSLER CORP.

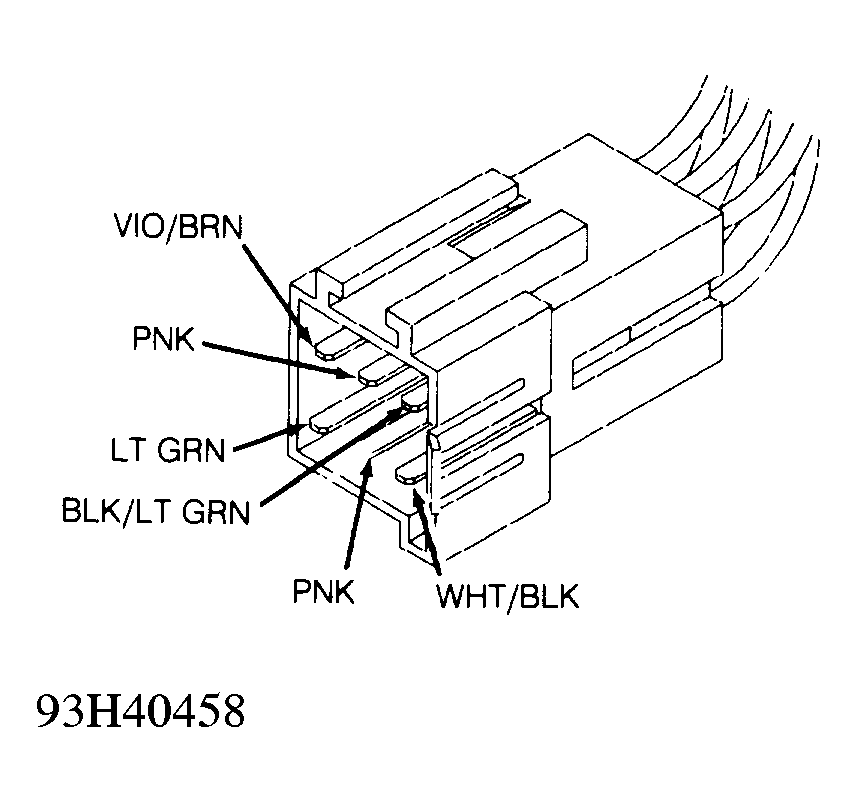

Fig 6: Identifying Data Link Connector Terminals

G93H40458

Courtesy of CHRYSLER CORP.

Fig 7: Manual Valve Lever Position Sw. (MVLPS) Connector Terminal ID

G93I40459

Courtesy of CHRYSLER CORP.

Fig 8: Powertrain Control Module (PCM) Connector Terminal ID

G93B40460

Courtesy of CHRYSLER CORP.
