Power Distribution

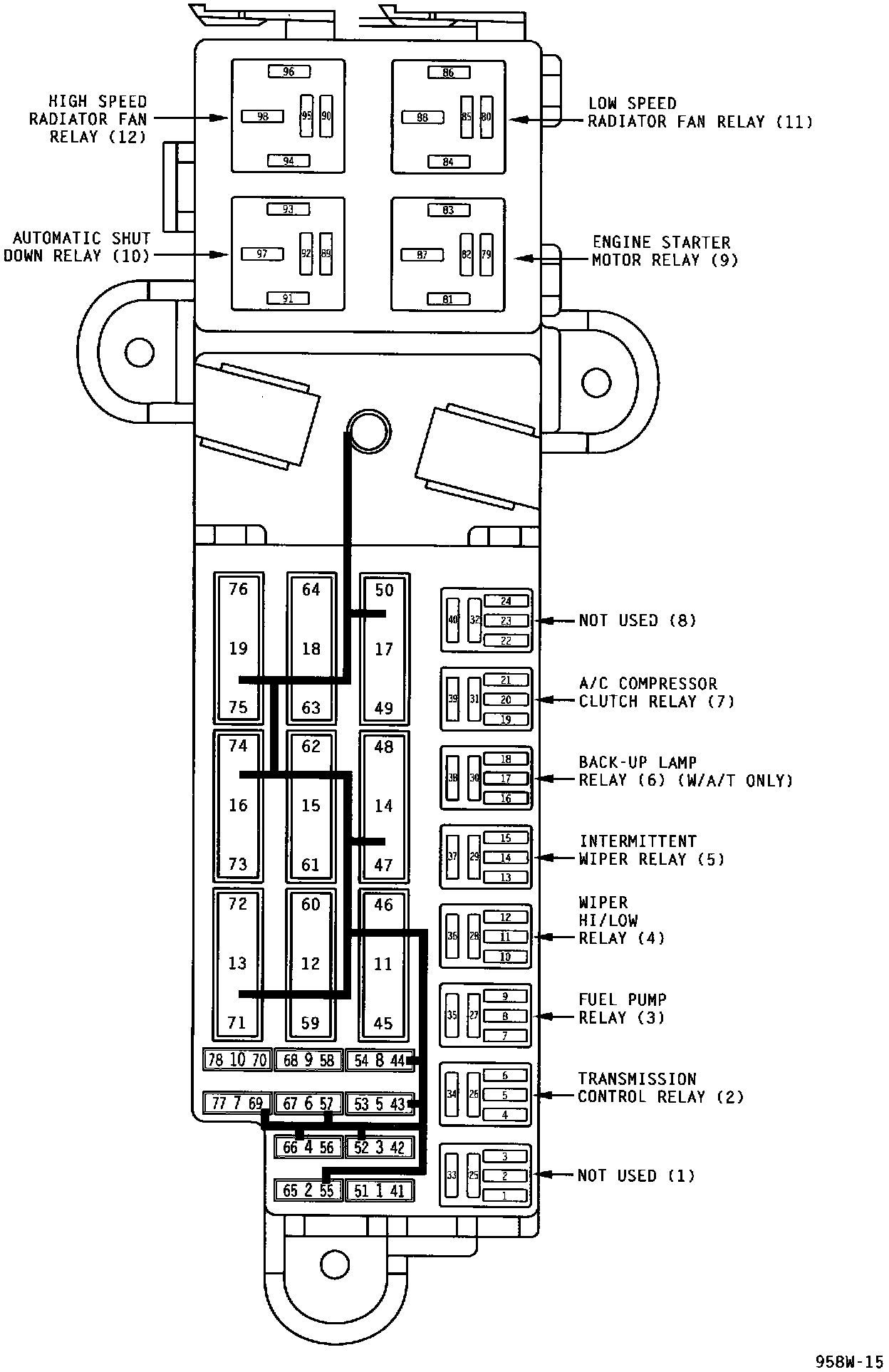

Power Distribution (Part 1 Of 4):

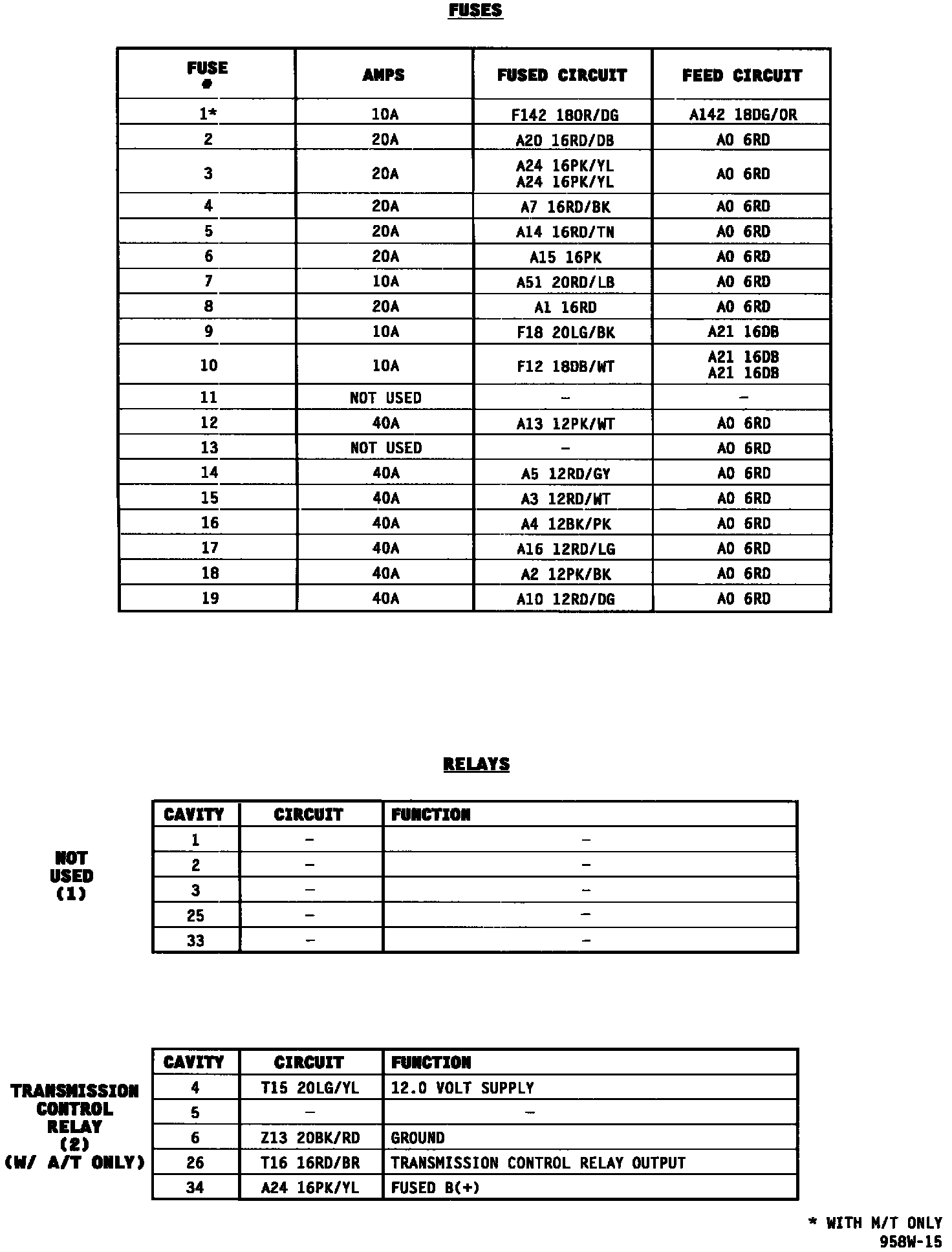

Power Distribution (Part 2 Of 4):

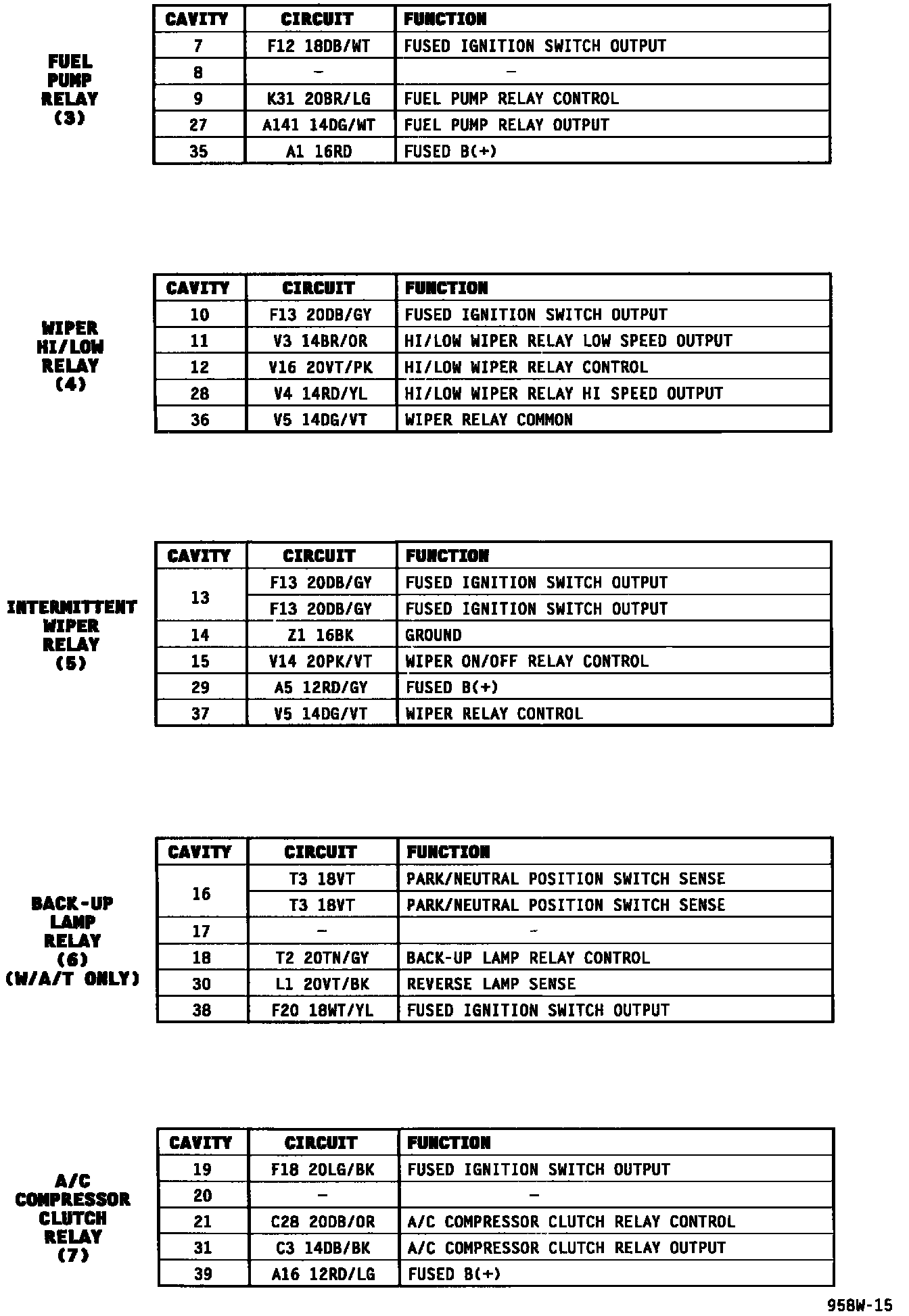

Power Distribution (Part 3 Of 4):

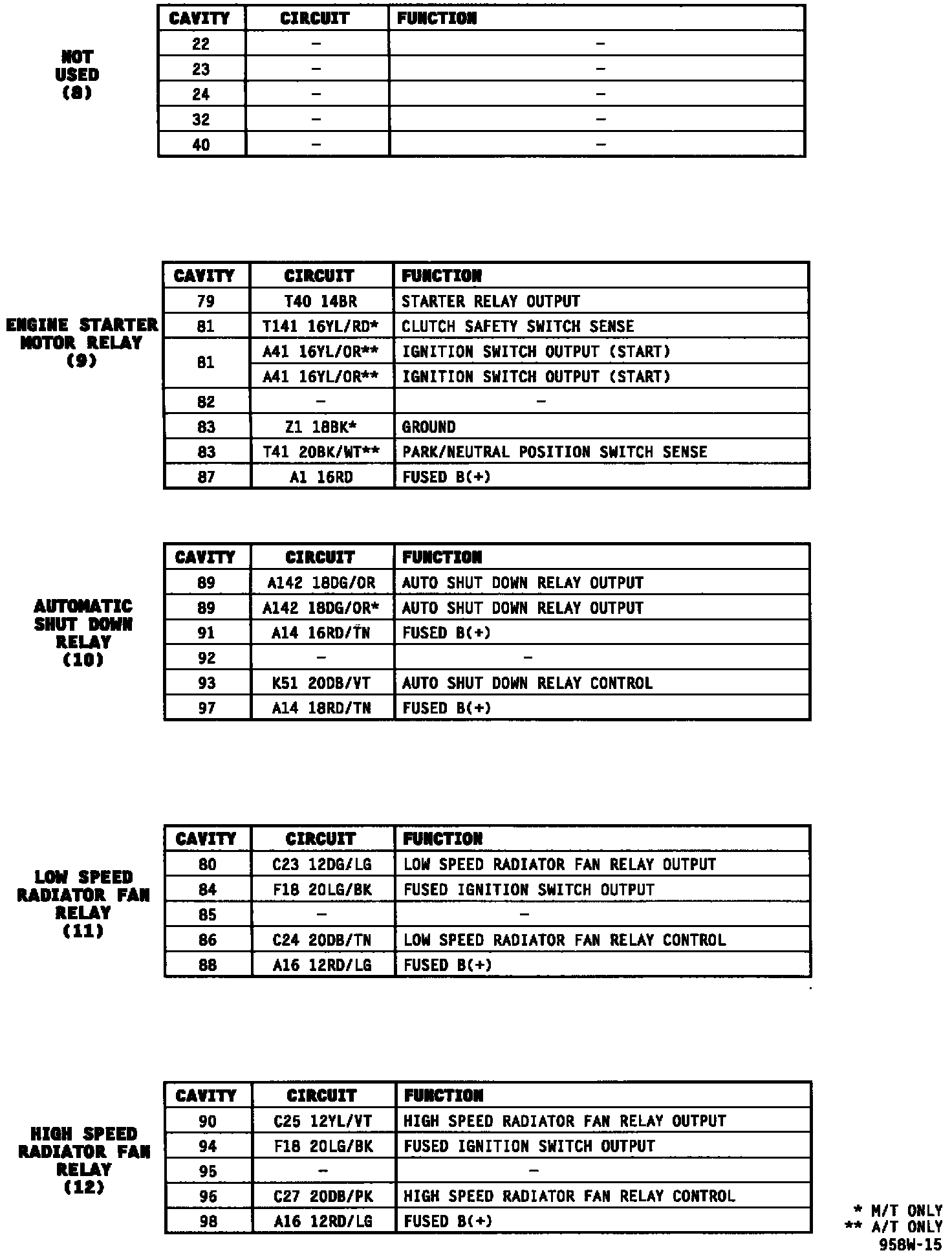

Power Distribution (Part 4 Of 4):






NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
