Home
>>
Chrysler
>>
1993
>>
Lebaron Convertible L4-135 2.2L DOHC Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
System Specifications
>>
Component Tightening Specifications and Sequences
Component Tightening Specifications and Sequences

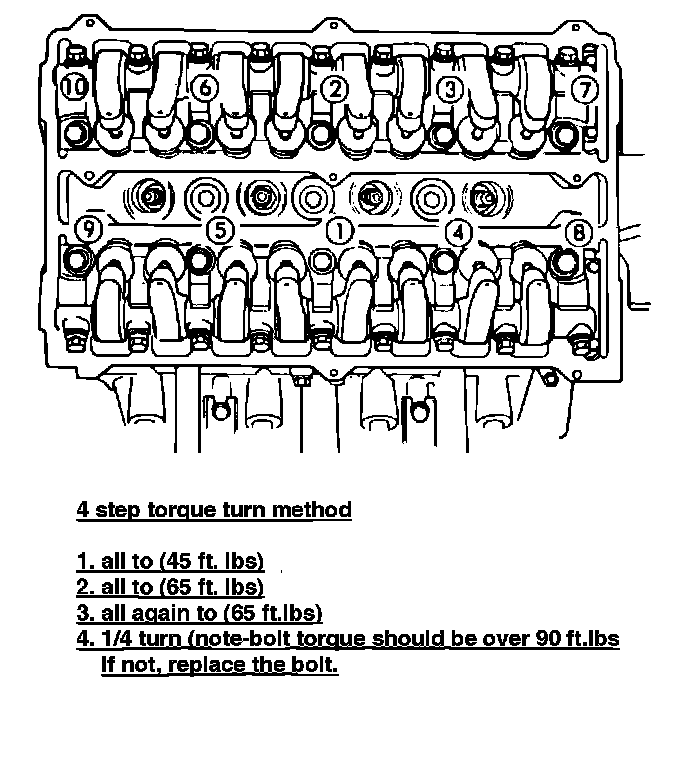

Fig. 11 Cylinder Head Tightening Sequence. 1991-92 2.2L/4-135 Turbo III Engine (VIN A).:
