Manifold Pressure/Vacuum Sensor: Service and Repair

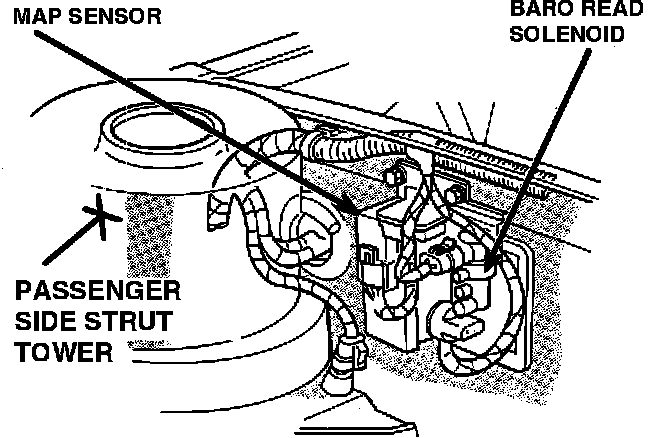

Map And Baro Read Solenoid Location:

Removal

1. Disconnect vacuum hose and electrical connector from sensor.
2. Remove sensor mounting screws and remove sensor.

Installation

1. Install sensor and tighten screws.
2. Connect vacuum hose and sensor electrical connector.
