Solar Sensor: Service and Repair

REMOVAL AND INSTALLATION

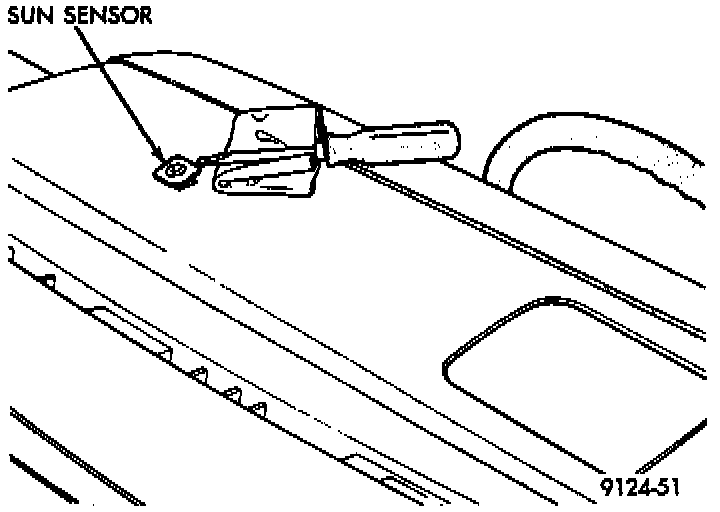

Sun Sensor Removal:

1. Carefully pry up the sensor from the instrument panel with a screwdriver. Place a rag under the screwdriver to prevent scratching of the instrument panel.
2. Disconnect the sensor at the wiring harness. To install, reverse the preceding operation. Snap the sensor securely to the instrument panel.
