Vacuum Control System Diagnosis Chart
Vacuum Control System Diagnosis Chart

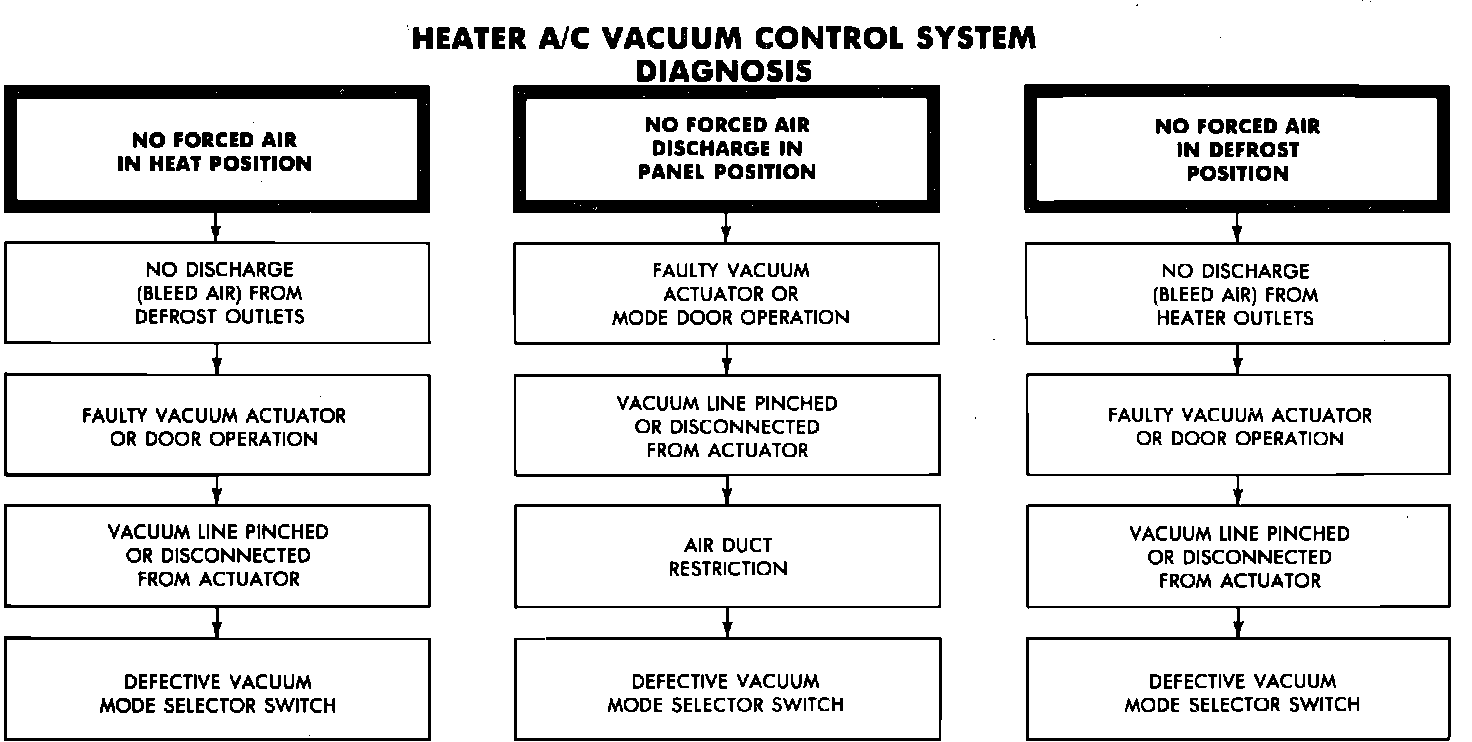

Heater & A/C Vacuum Control System Diagnosis:
