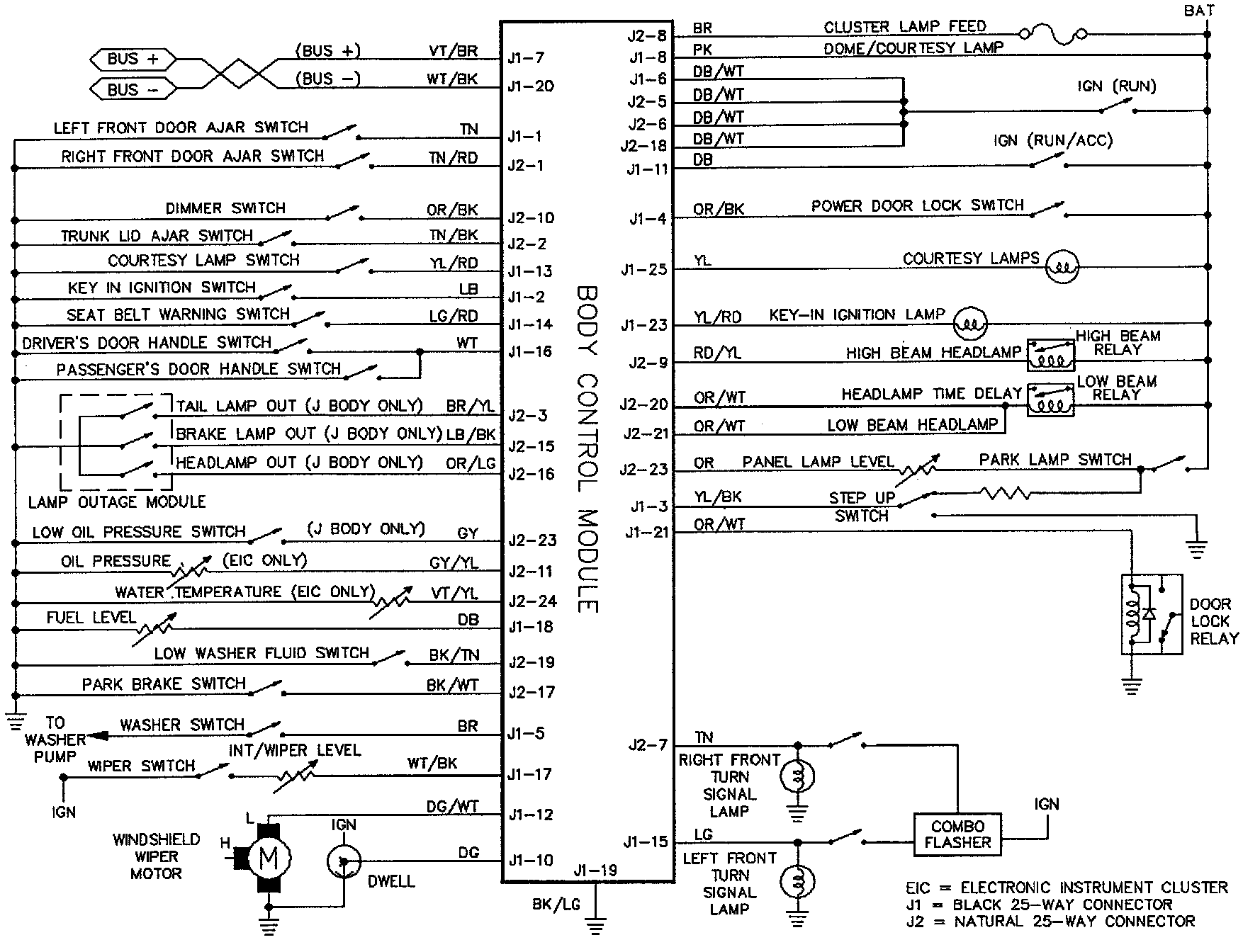

Home >> Chrysler >> 1993 >> Lebaron Convertible L4-135 2.2L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> Wiring Diagrams >> Schematic Diagrams >> Body Control Module (Premium)
