Home >> Chrysler >> 1993 >> Lebaron Convertible L4-135 2.2L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lamp Out Module >> 5-Way Connector

5-Way Connector

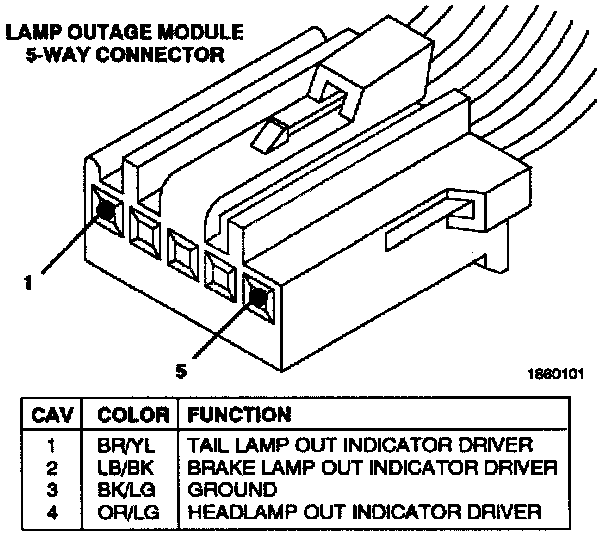

Lamp Outage Module 5 Way Connector:
