Lebaron Convertible L4-135 2.2L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compass
Compass

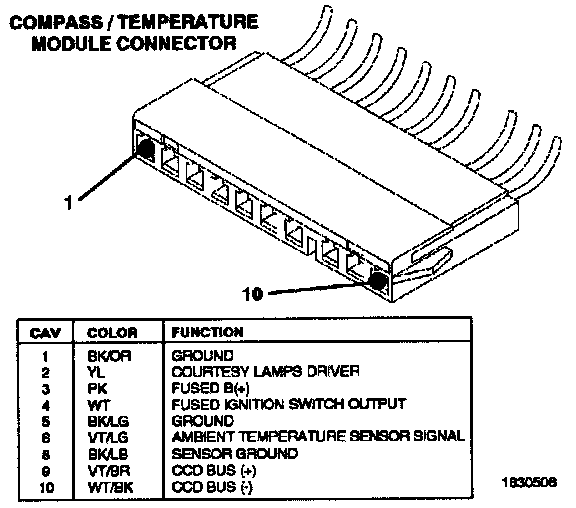

Compass/Temperature Module Connector:
