Test 16: Key In Ignition

Fig 1: Test 16: Circuit Diagram (For 1 of 2)

G90G16507

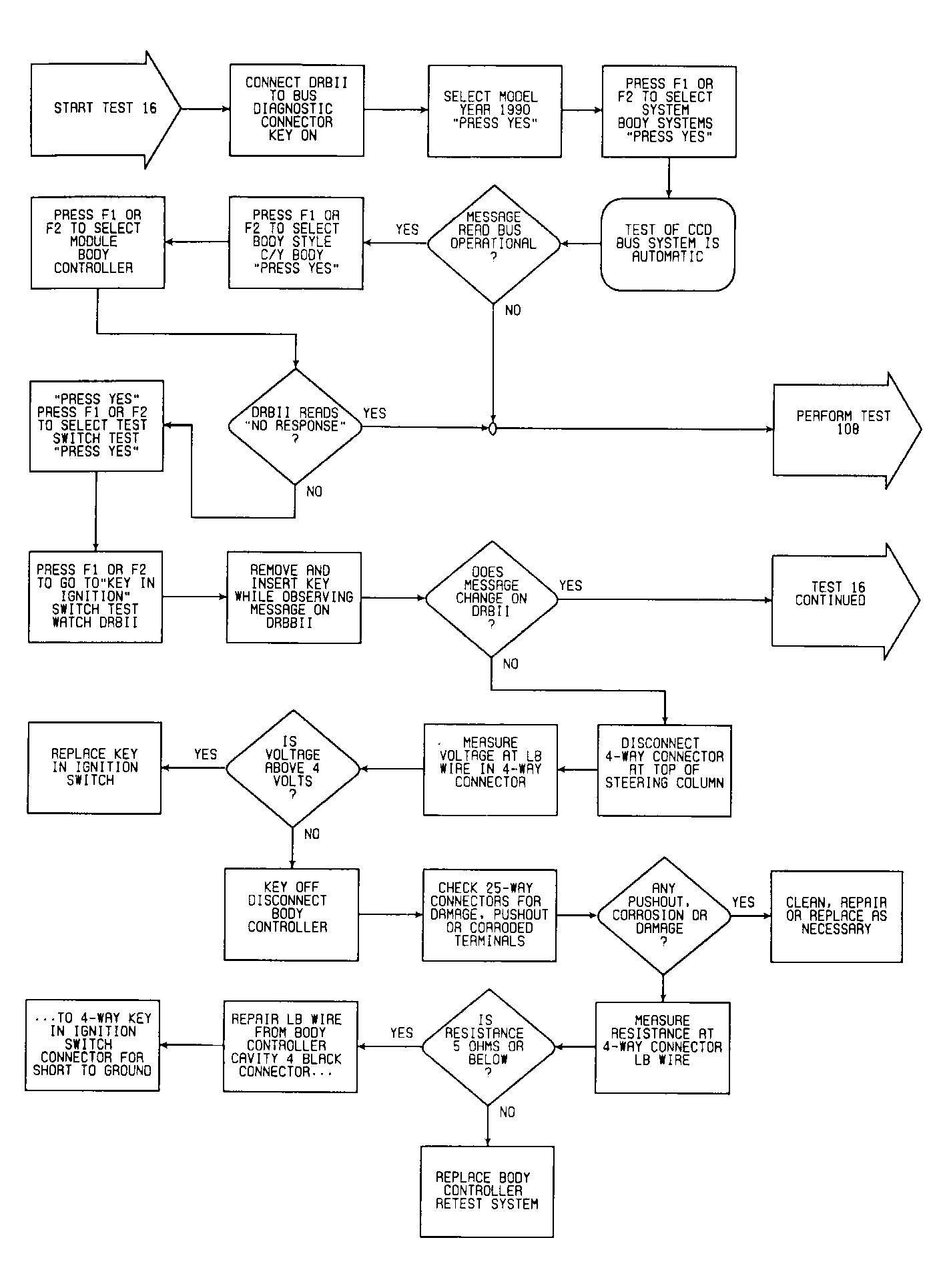

Fig 2: Test 16: Flow Chart (1 of 2)

G90D12255

Fig 3: Test 16: Circuit Diagram (For 2 of 2)

G90C16503

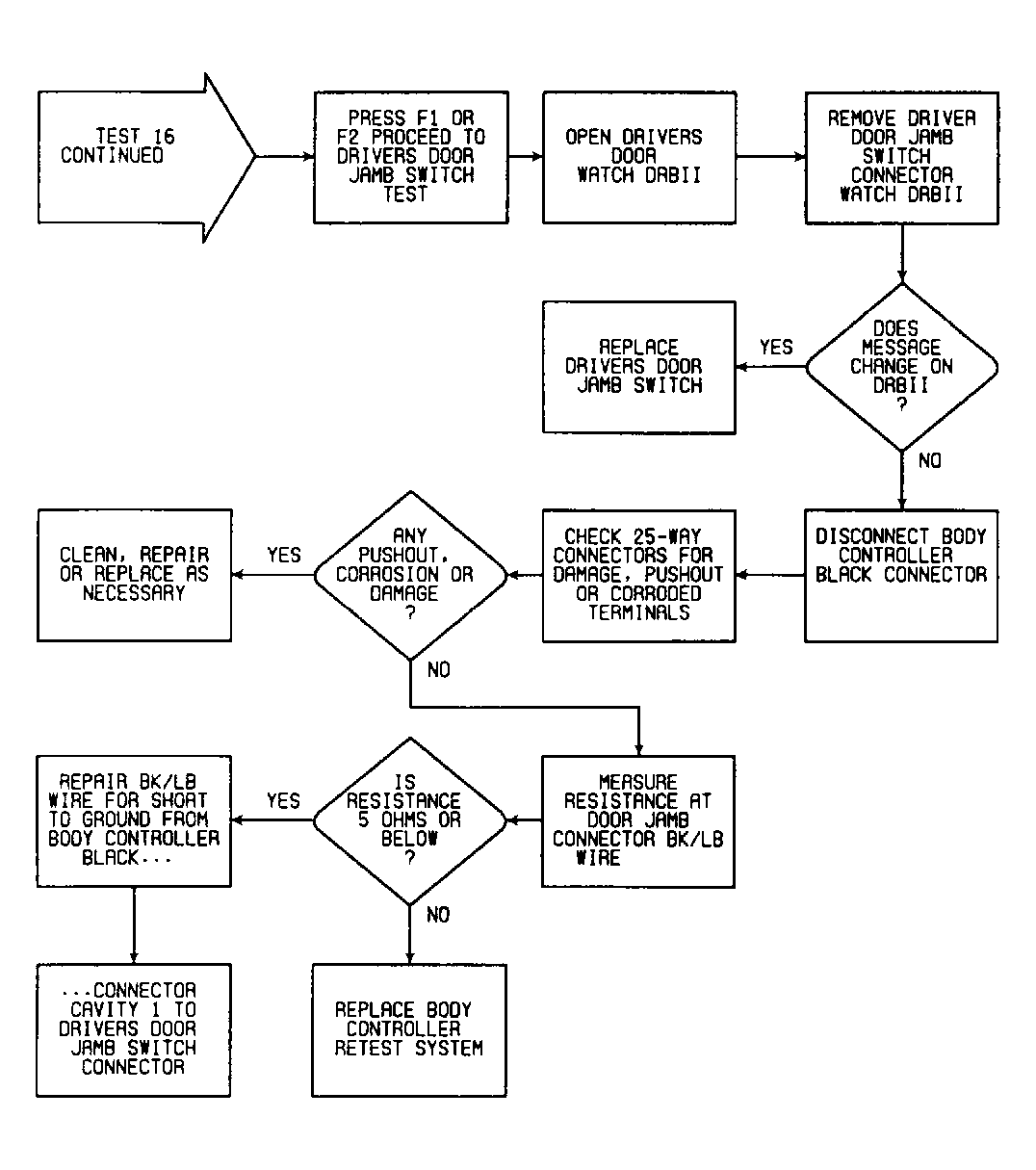

Fig 4: Test 16: Flow Chart (2 of 2)

G90E12256
