Engine Controls - Tests W/O Codes - BCC
>>
Test 108: Testing DRB-II For Proper Operation
Test 108: Testing DRB-II For Proper Operation

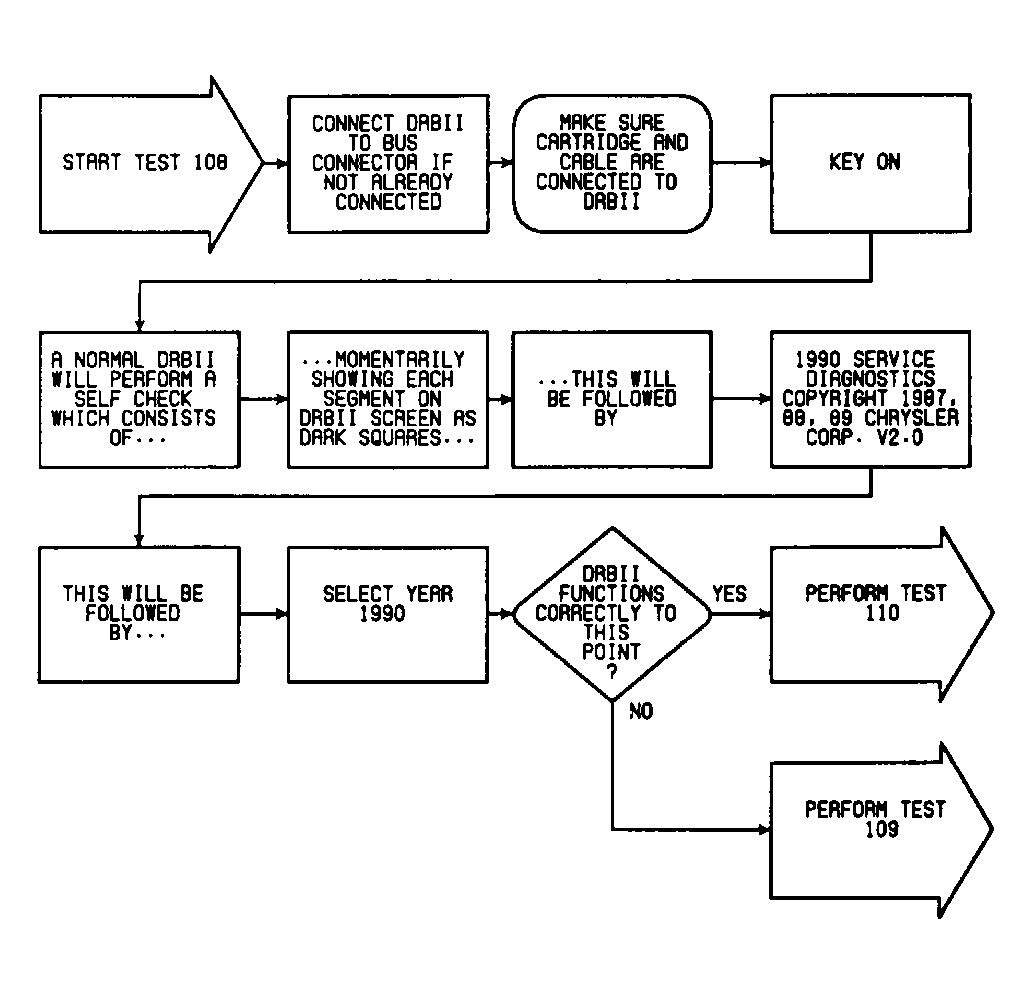

Fig 1: Test 108: Flow Chart
