Timing Component Alignment Marks: Locations

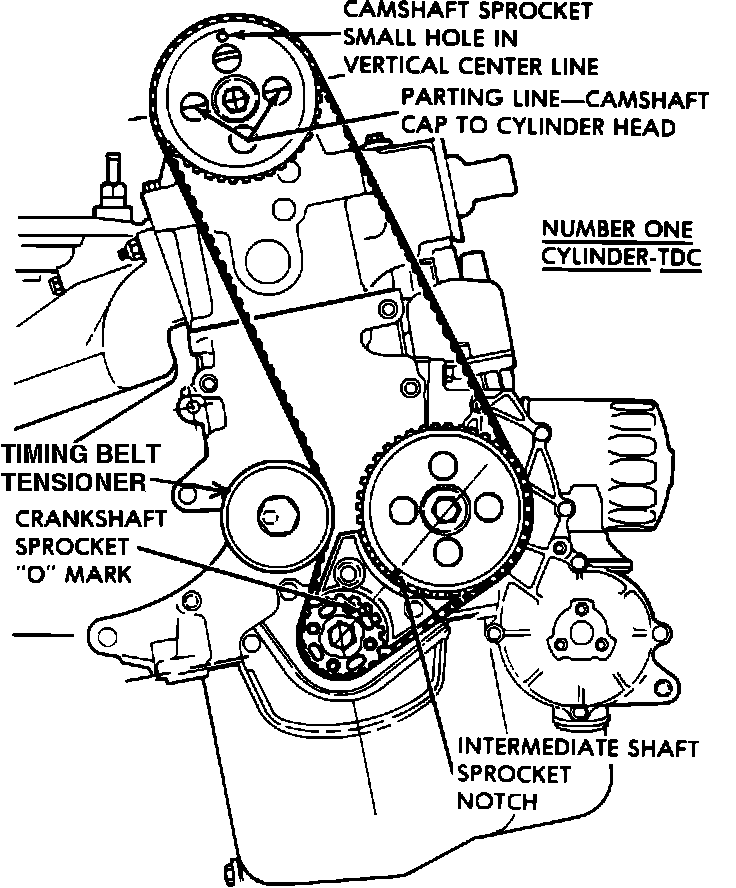

Cam Belt Routing:

Fig. 1 Crankshaft And Intermediate Sprocket Timing Marks:

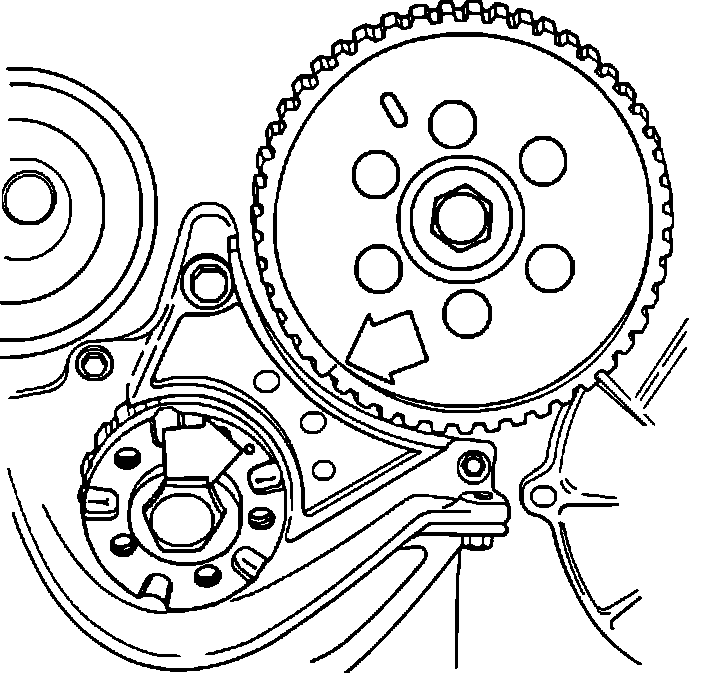

Fig. 2 Camshaft Sprocket:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information:Service and Repair
