Computers and Control Systems: Locations

Electronic Ignition System Components:




Engine Mounted Components:

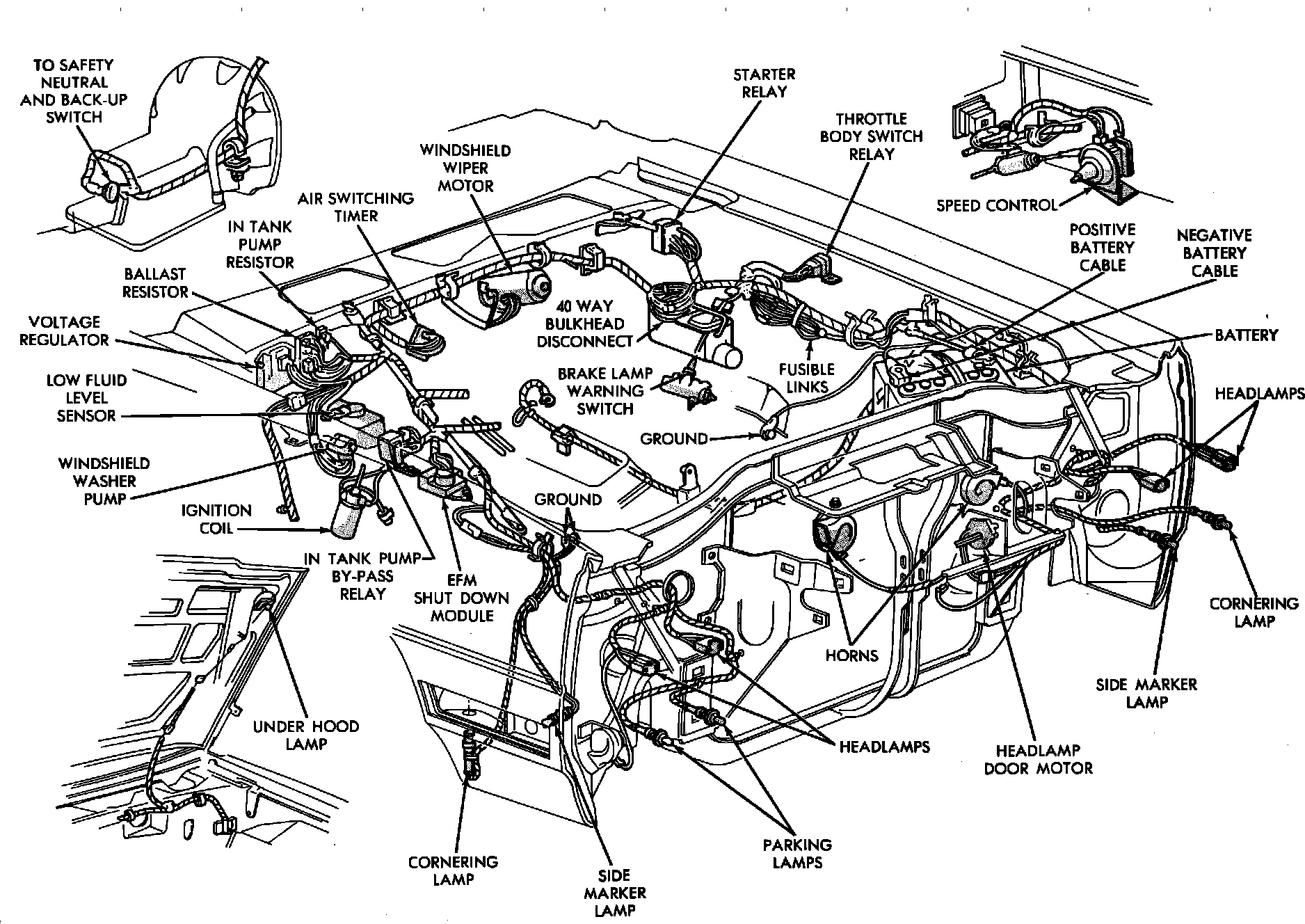

Engine Compartment Electrical Components:
