Installation Procedure

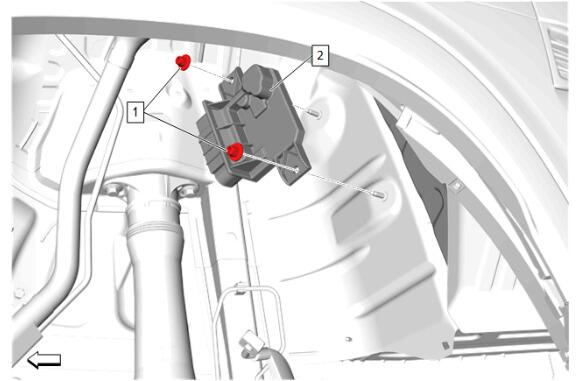

  1. GM6165862Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Fuel Pump Power Control Module Nut (1) - Install and tighten [2x] - Fastener Specifications

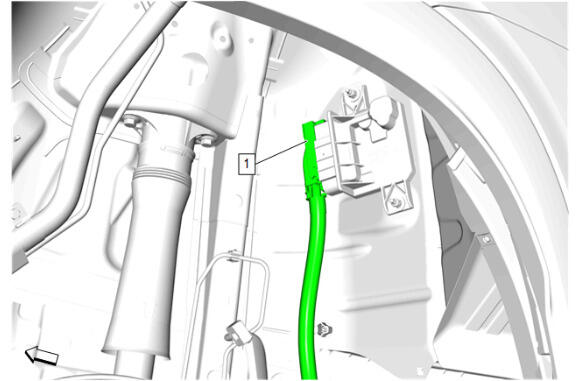

  3. GM6165861Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

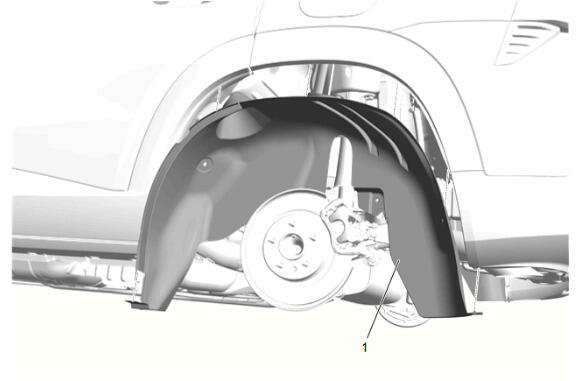

  4. GM5925337Courtesy of GENERAL MOTORS COMPANY

    Rear Wheelhouse Liner - Left Side (1) - Install - Rear Wheelhouse Liner Replacement

  5. If replacing, reprogram the module. Control Module References
