Installation Procedure

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

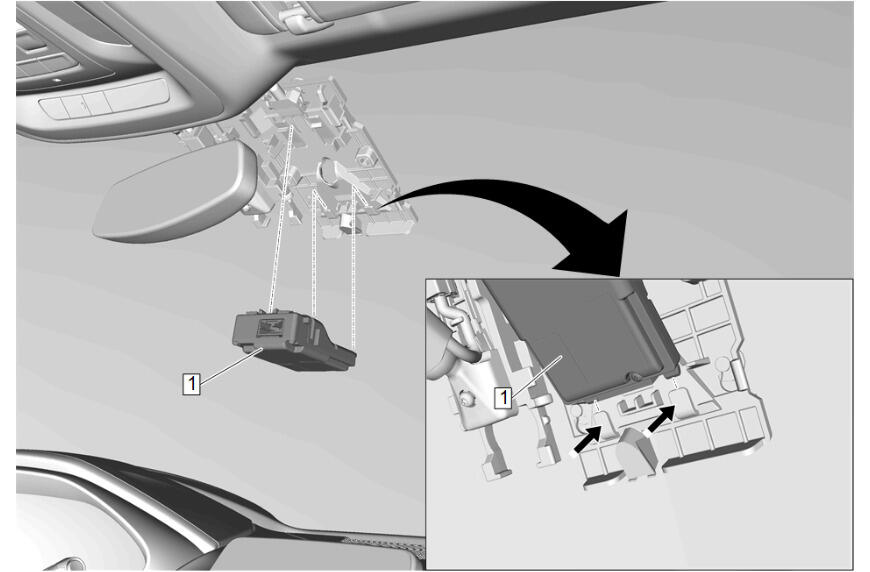

  1. GM5471192Courtesy of GENERAL MOTORS COMPANY

    Front View Camera (1) - Install

  2. Slide the front view camera (1) forward to engage.

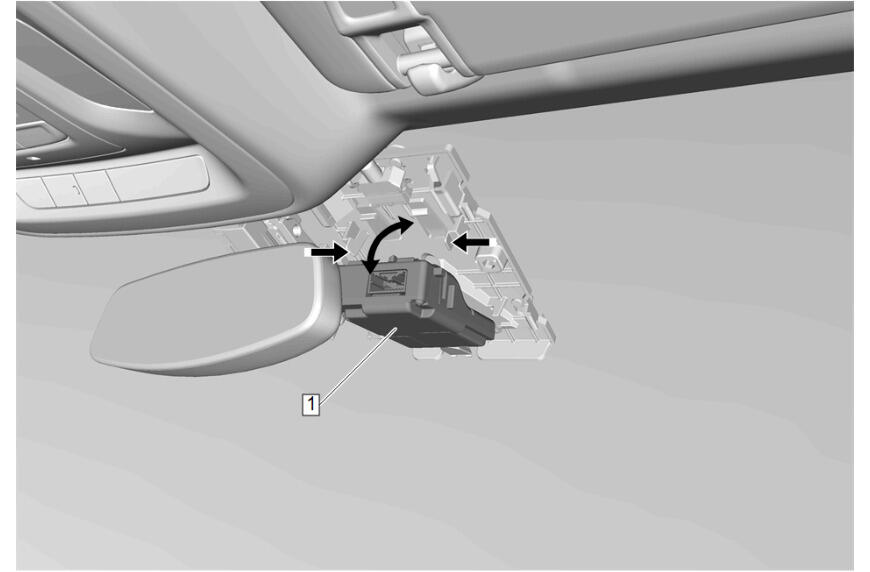

  3. GM5471185Courtesy of GENERAL MOTORS COMPANY

    Rotate the front view camera (1) upward and secure the retaining tabs.

  4. Connect the electrical connector.

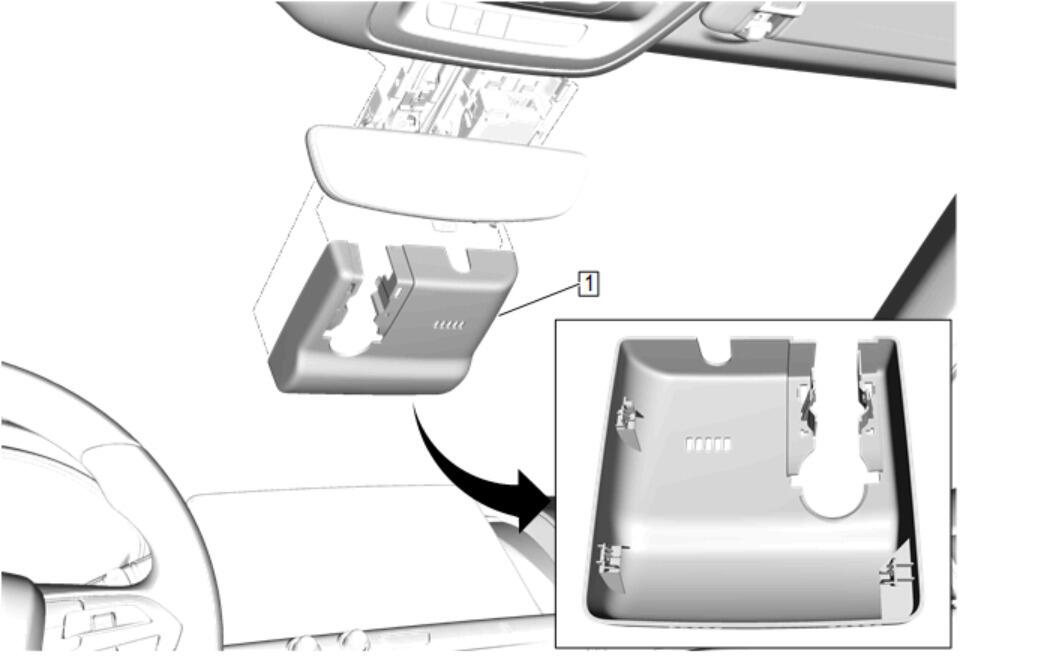

  5. GM5330339Courtesy of GENERAL MOTORS COMPANY

    Install the windshield multifunction sensor mount bracket cover (1) ensuring the retaining tabs are fully seated.

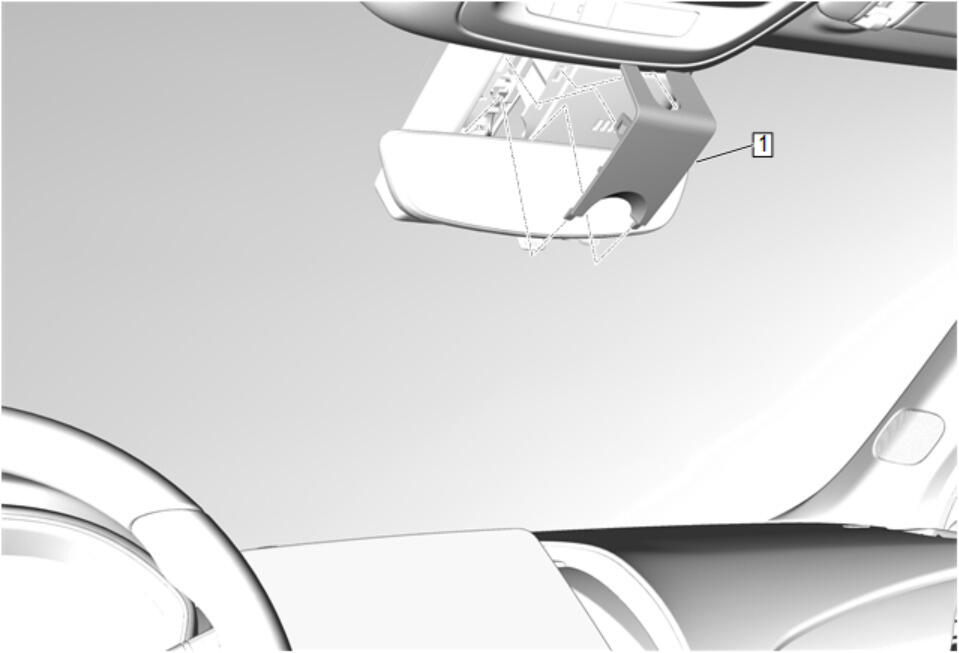

  6. GM5330333Courtesy of GENERAL MOTORS COMPANY

    Windshield Multifunction Sensor Mount Bracket Cover Insert (1) - Install

  7. Perform the necessary programming and setup procedure:Control Module References
