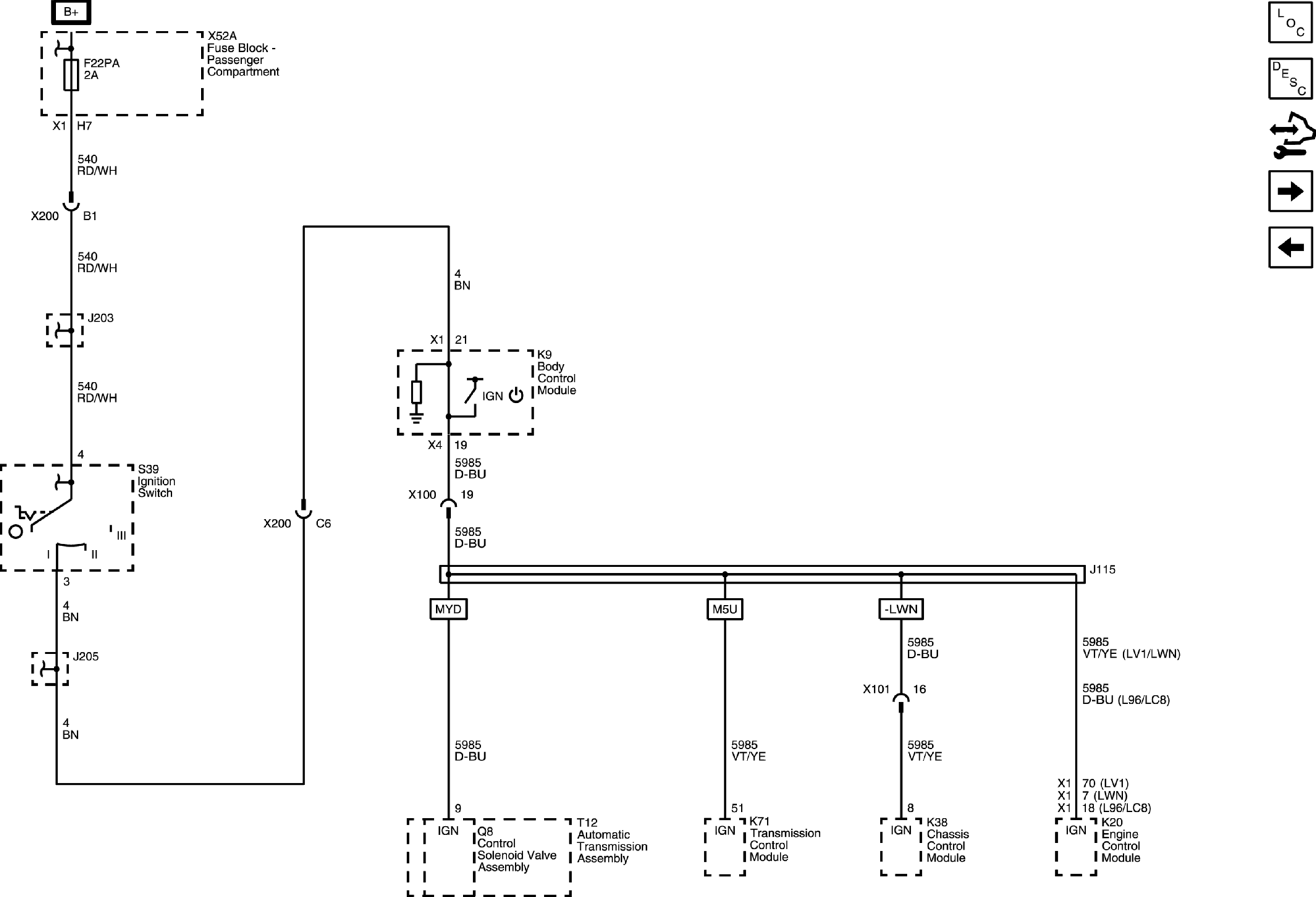

Home >> Chevrolet >> 2018 >> Express 2500 LS, 2.8L Eng VIN 1 >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic and Routing Diagrams >> Data Communication Schematics >> Accessory Wakeup
