Installation Procedure

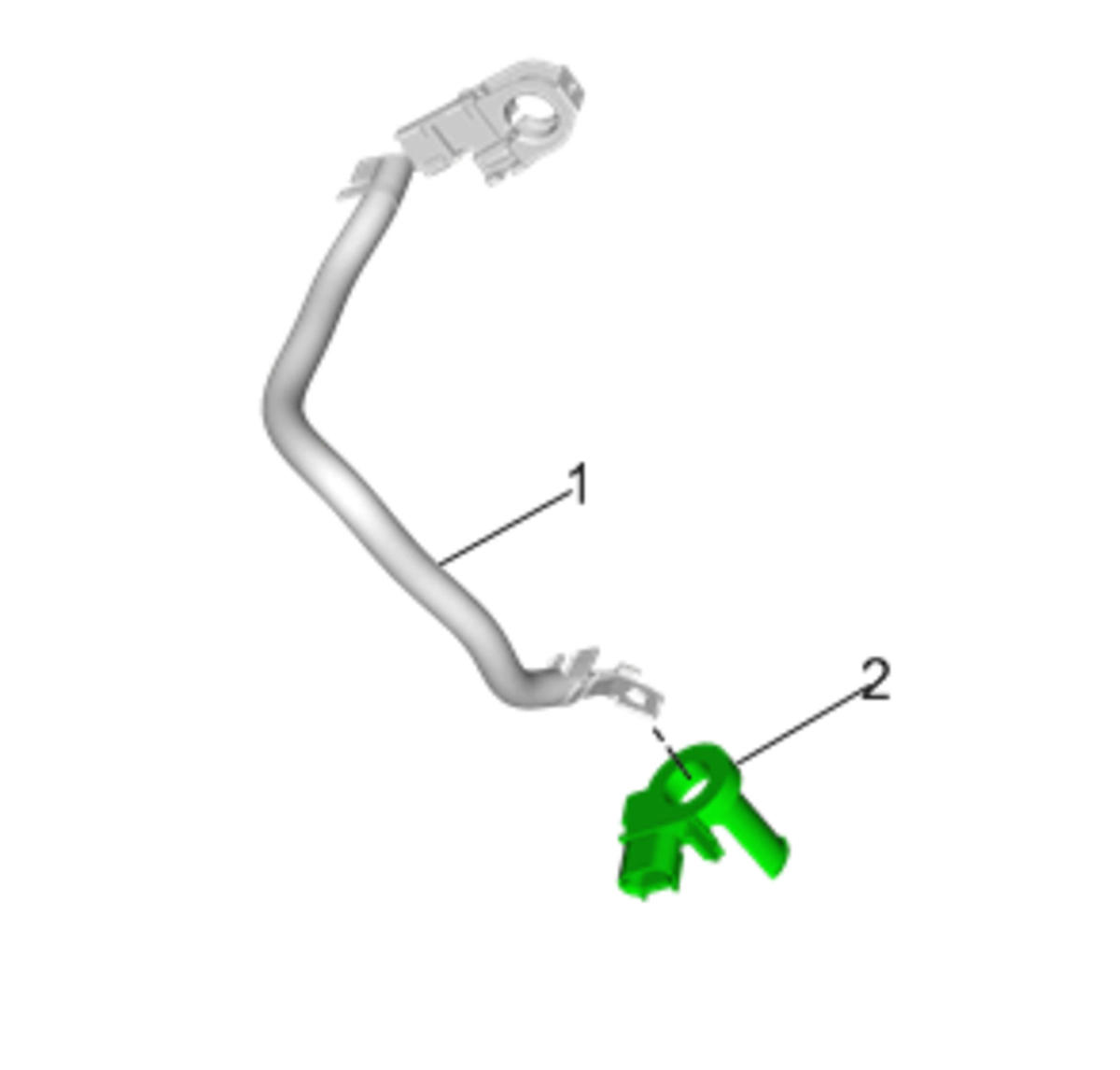

Install the battery current sensor (2) onto the battery negative cable (1) as shown.

Fig 1: Battery Current Sensor And Battery Negative Cable
Courtesy of GENERAL MOTORS COMPANY

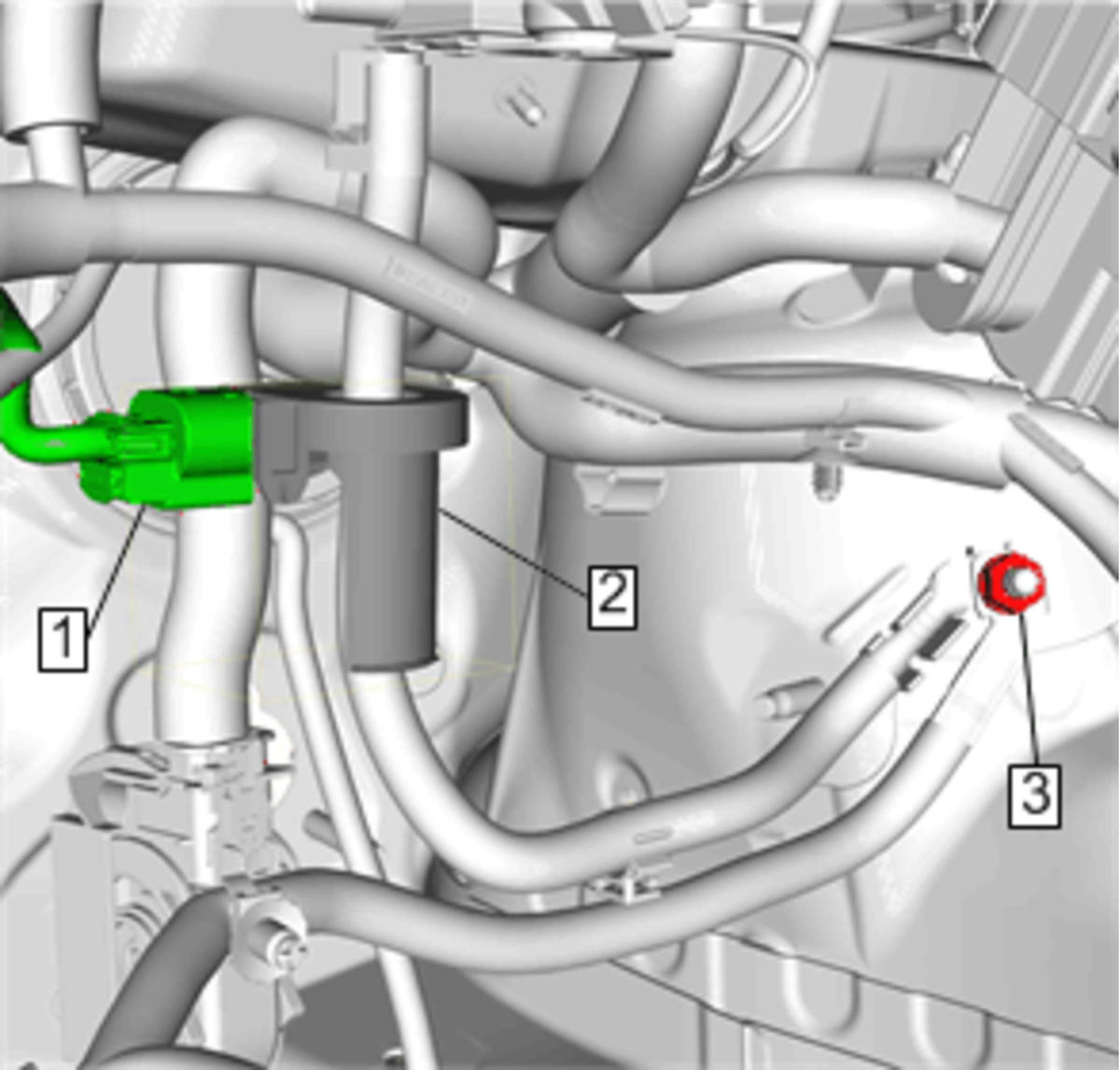

Install the battery negative cable to the frame rail and tighten the battery negative and positive cable ground nut (3) to 22 N.m (16 lb ft).

Fig 2: Body Harness Connector And Battery Current Sensor
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Connect the body harness connector (1) to the battery current sensor (2).
Install the battery. Refer to Battery Replacement .
