Installation Procedure

  1. Front Wheel Speed Sensor@Vehicle - Install

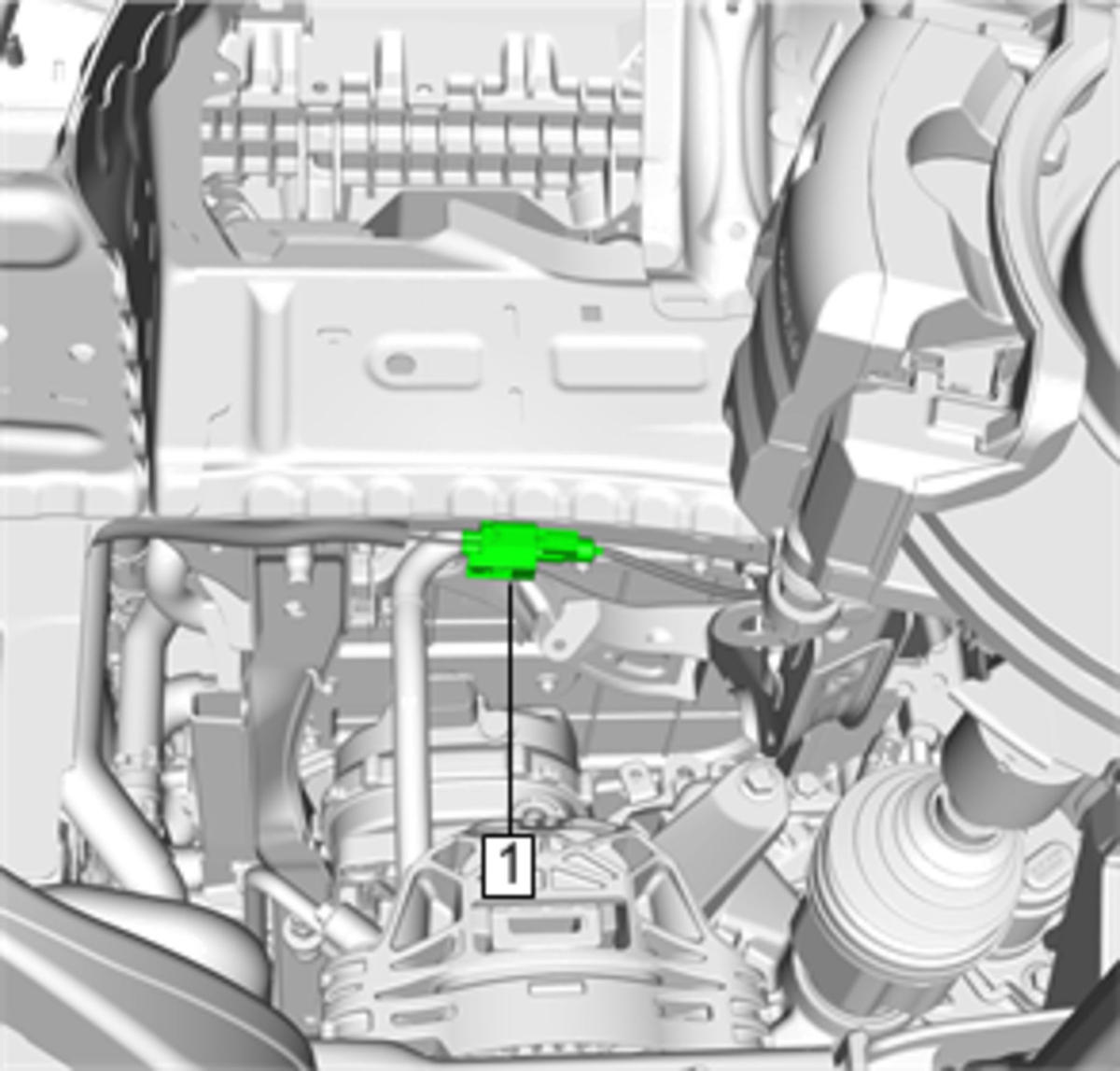

    2. Fig 1: Front Wheel Speed Sensor Electrical Connector
    GM4514609Courtesy of GENERAL MOTORS COMPANY
  2. Connect Front Wheel Speed Sensor Electrical Connector (1) @Forward Lamp Wiring Harness

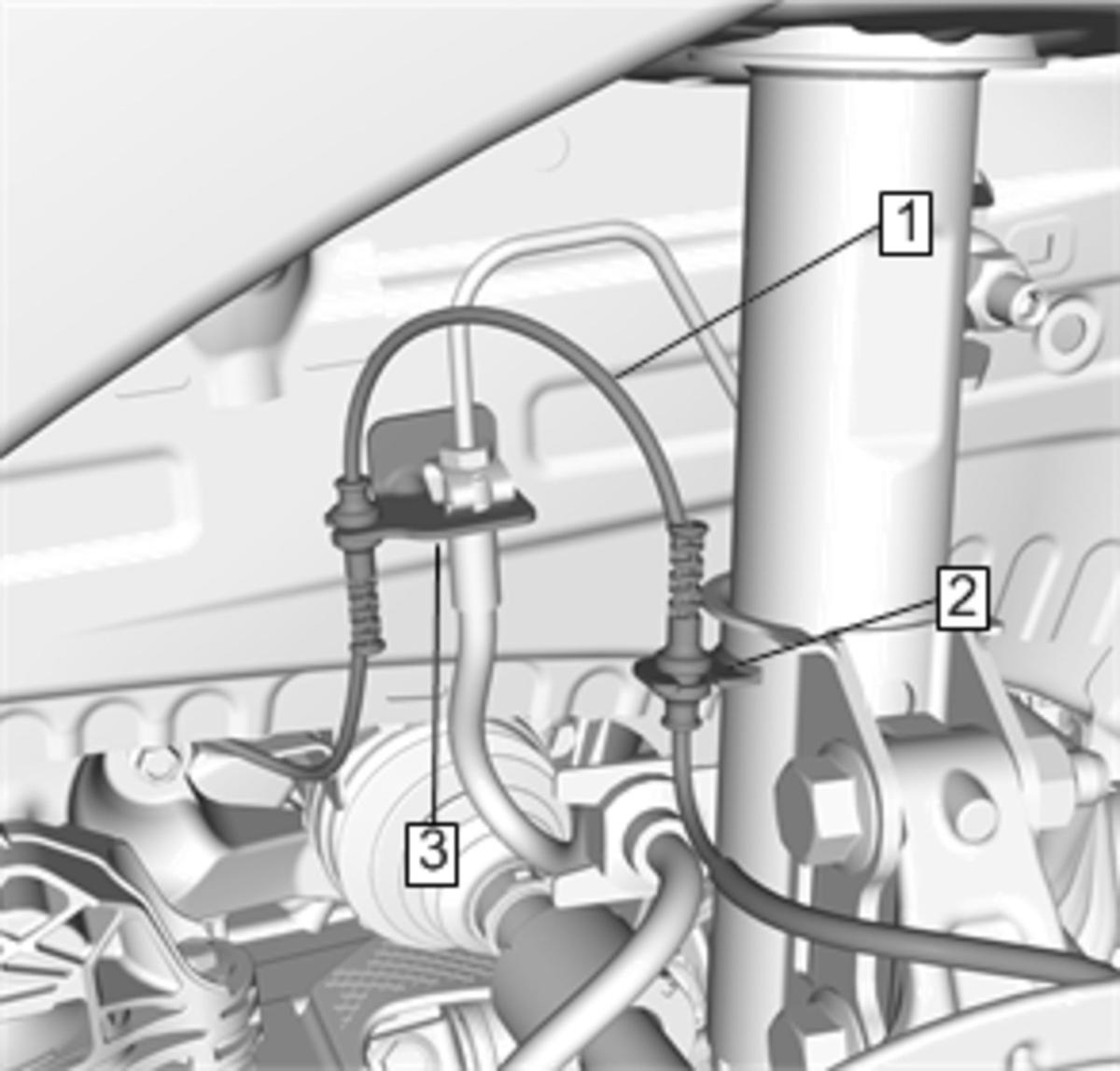

    3. Fig 2: Front Wheel Speed Sensor Wiring Harness
    GM4514608Courtesy of GENERAL MOTORS COMPANY
  3. Install Front Wheel Speed Sensor Wiring Harness(1)Front Compartment Side Rail Mounted Bracket (3)
  4. Install Front Wheel Speed Sensor Wiring Harness(1)Front Suspension Strut Mounted Bracket (2)

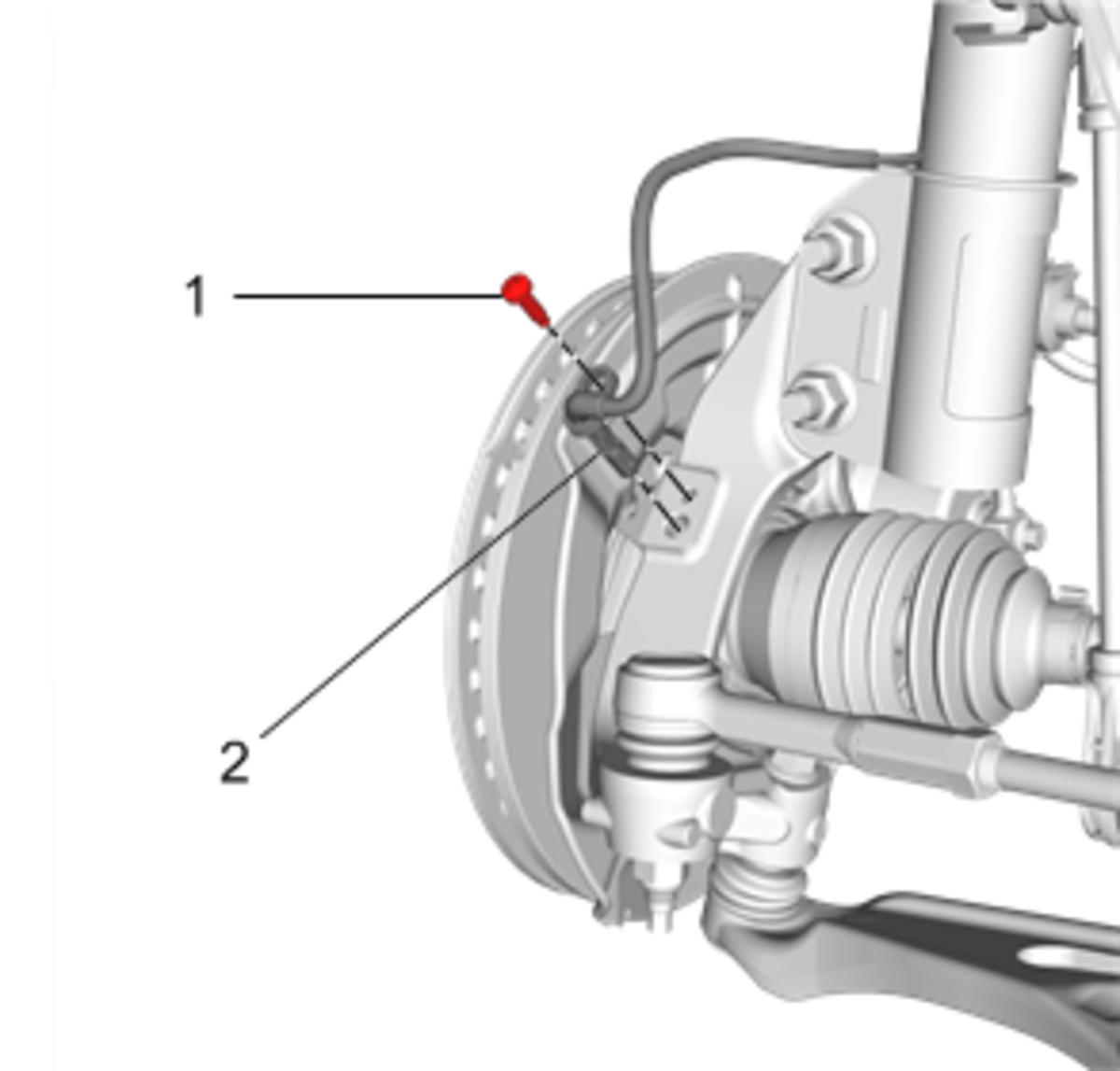

    5. Fig 3: Front Wheel Speed Sensor Bolt
    GM4514607Courtesy of GENERAL MOTORS COMPANY
  5. Install Front Wheel Speed Sensor (2) @Steering Knuckle
    6. CAUTION:

    Fastener Caution

  6. Install Front Wheel Speed Sensor Bolt (1) @Steering Knuckle and tighten 9 N.m (80 lb in)

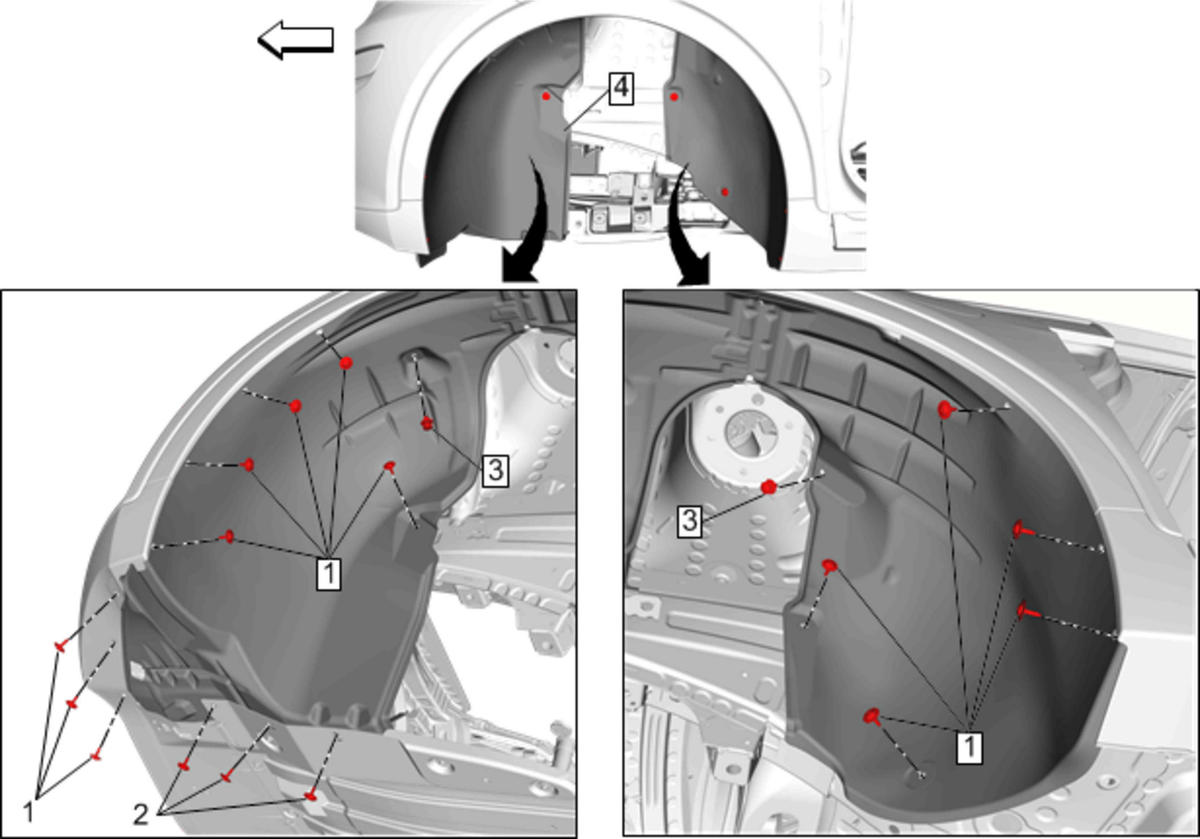

    7. Fig 4: Front Wheelhouse Liner
    GM4533726Courtesy of GENERAL MOTORS COMPANY
  7. Install Front Wheelhouse Liner (3)Front Wheelhouse Liner Replacement
  8. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  9. Lower the vehicle.
