Installation Procedure

    Fig 1: High Voltage Cable And Retainer Fasteners
    GM3604552Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the high voltage cable (2) into position on the frame and tighten the retainer fasteners (1) to 9 N.m (80 lb in).

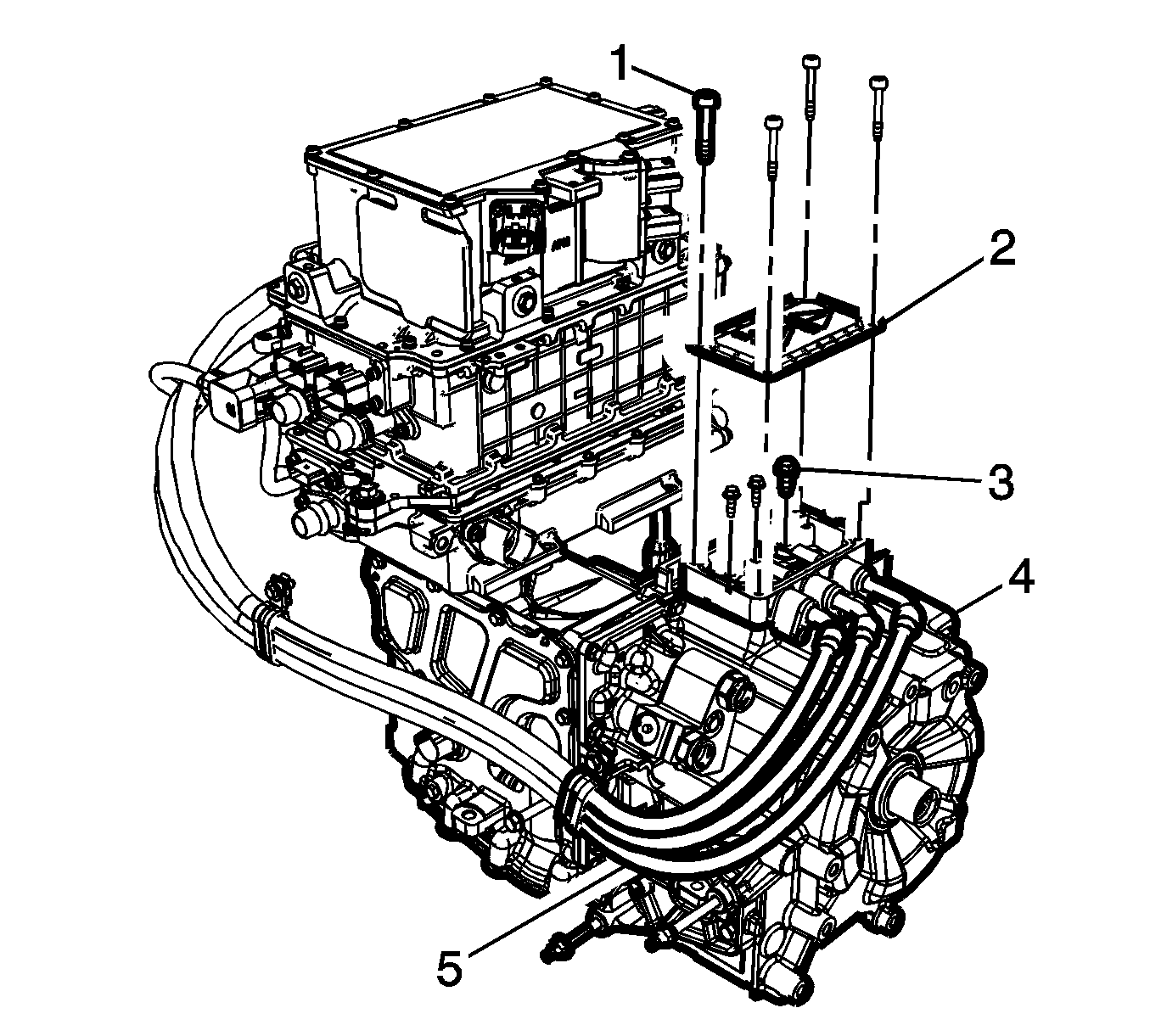

    2. Fig 2: High Voltage Connector Cover, Fasteners, High Voltage Cable, Fasteners And Transmission
    GM3604549Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Replace the connector to transmission seal with a NEW seal.

  2. Install the high voltage terminal fasteners (3) and tighten to 9 N.m (80 lb in).
  3. Install the high voltage cable cover (2) and tighten the cover fasteners (1) to 9 N.m (80 lb in).

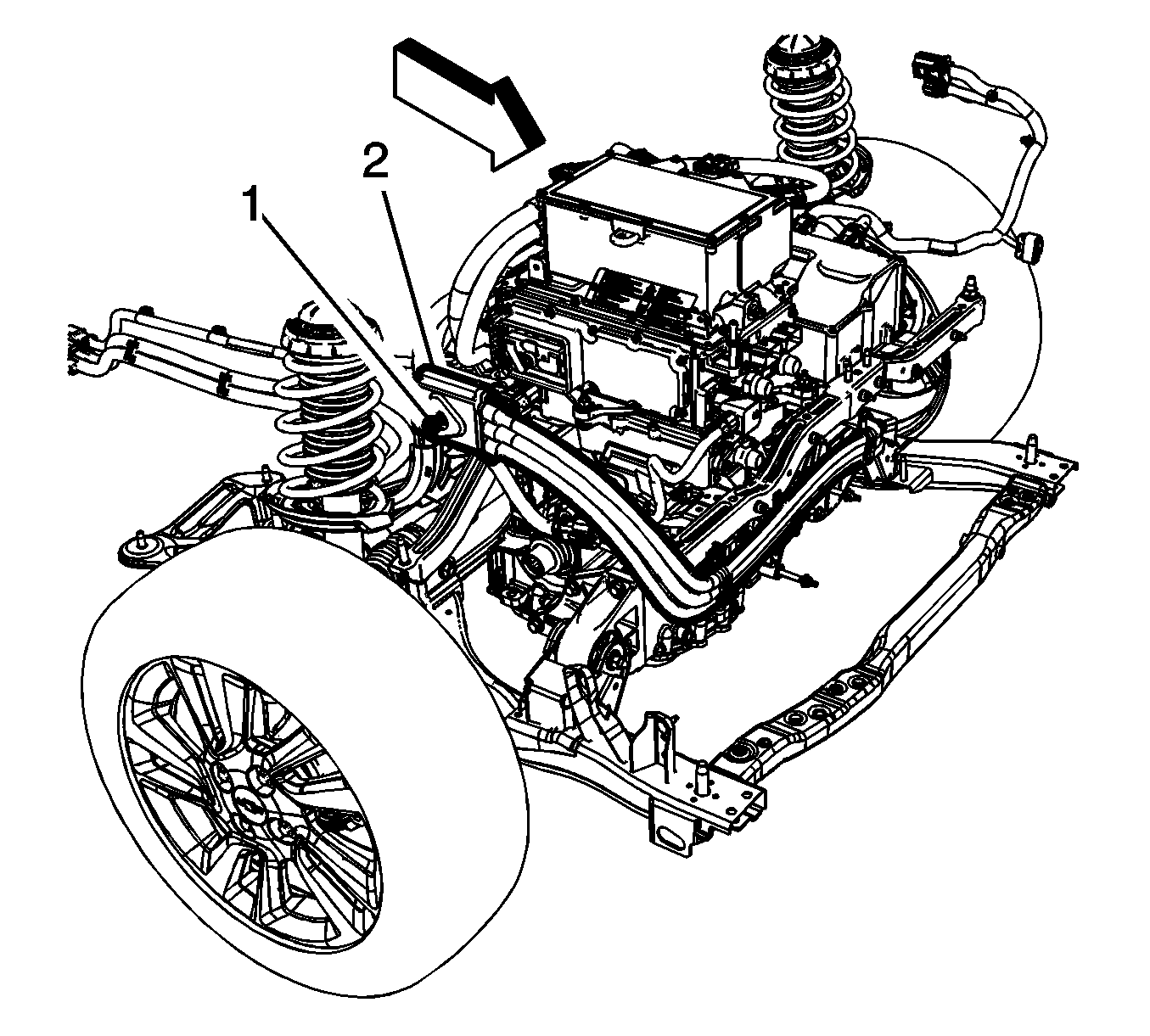

    4. Fig 3: High Voltage Connector Fastener And Connector
    GM3604554Courtesy of GENERAL MOTORS COMPANY
  4. Install the high voltage connector (2) to the drive motor generator power inverter module and tighten the fastener (1) to 9 N.m (80 lb in).
  5. Install the drive motor battery charger. Refer to Drive Motor Battery Charger Replacement .
  6. Install the high voltage disconnect circuit connector cover. Refer to High Voltage Disconnect Circuit Connector Cover Replacement .
