Front Seat Belt Guide Adjuster Replacement

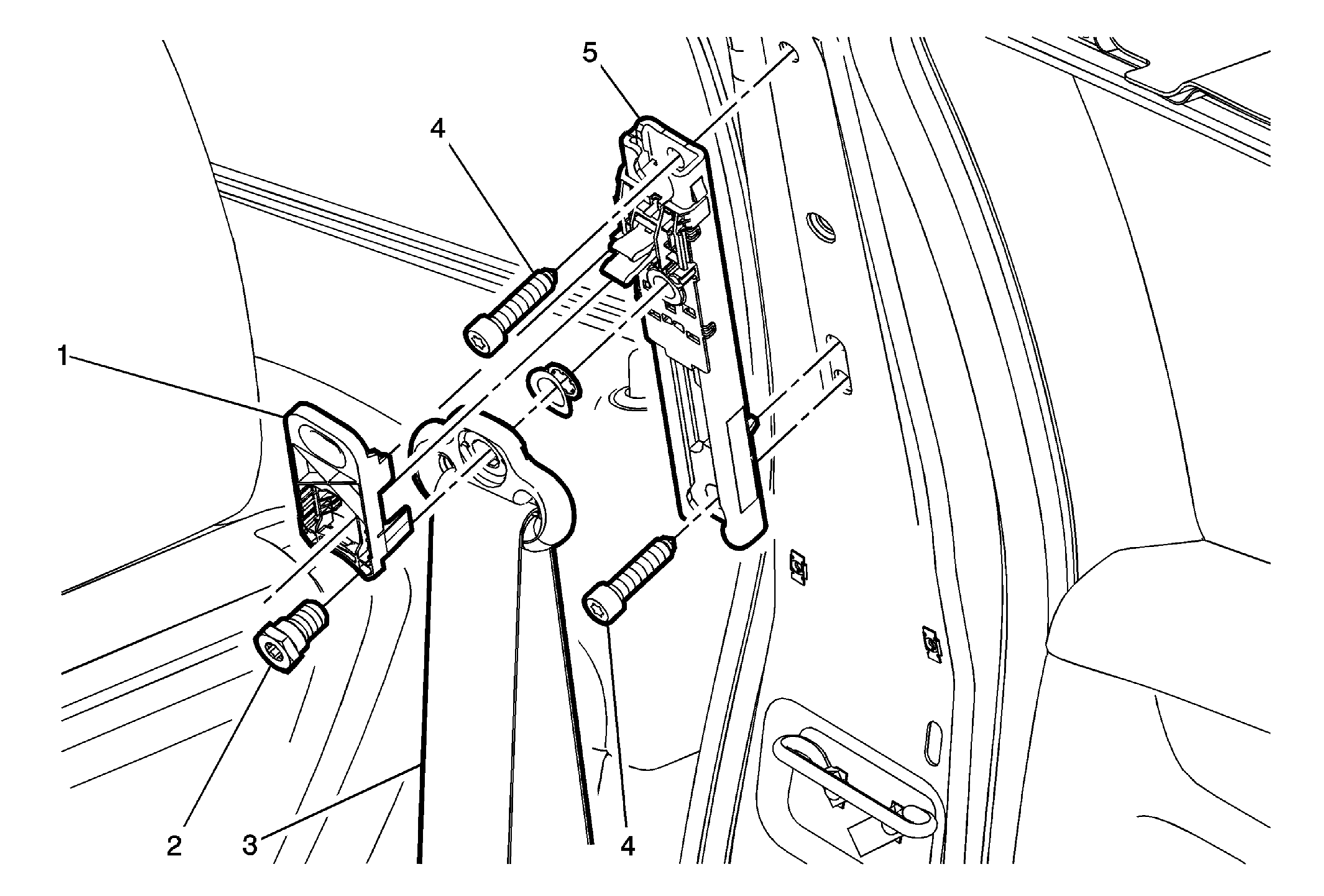

Fig 1: Front Seat Belt Guide Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement
1	Front Seat Belt Guide Adjuster Cover
2	Front Seat Belt Retractor Bolt CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
3	Front Seat Belt
4	Front Seat Belt Guide Adjuster Fastener (Qty: 2) Tighten  45 N.m (33 lb ft)
5	Front Seat Belt Guide Adjuster
