Steering Angle Sensor Replacement

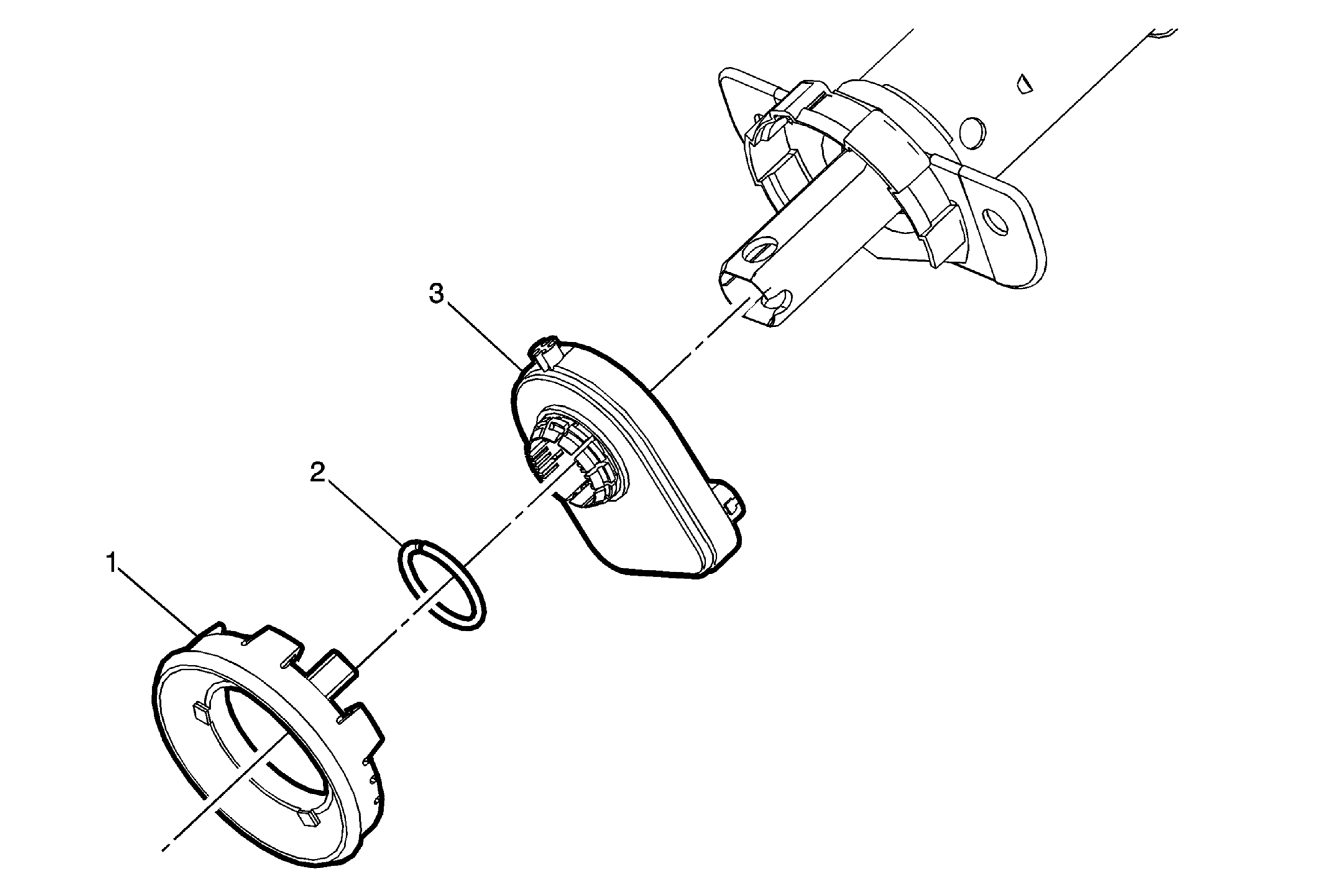

Fig 1: Steering Angle Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the steering column. Refer to Steering Column Replacement .
1	Steering Angle Sensor Retainer
2	Steering Angle Sensor Retaining Ring CAUTION: Refer to Fastener Caution . Procedure Remove and discard the old retaining ring. Do NOT reuse the retaining ring, replace with NEW only.
3	Steering Angle Sensor Procedure After the installation is complete, center the steering angle sensor. Refer to Steering Wheel Angle Sensor Centering .
