Steering Column Replacement

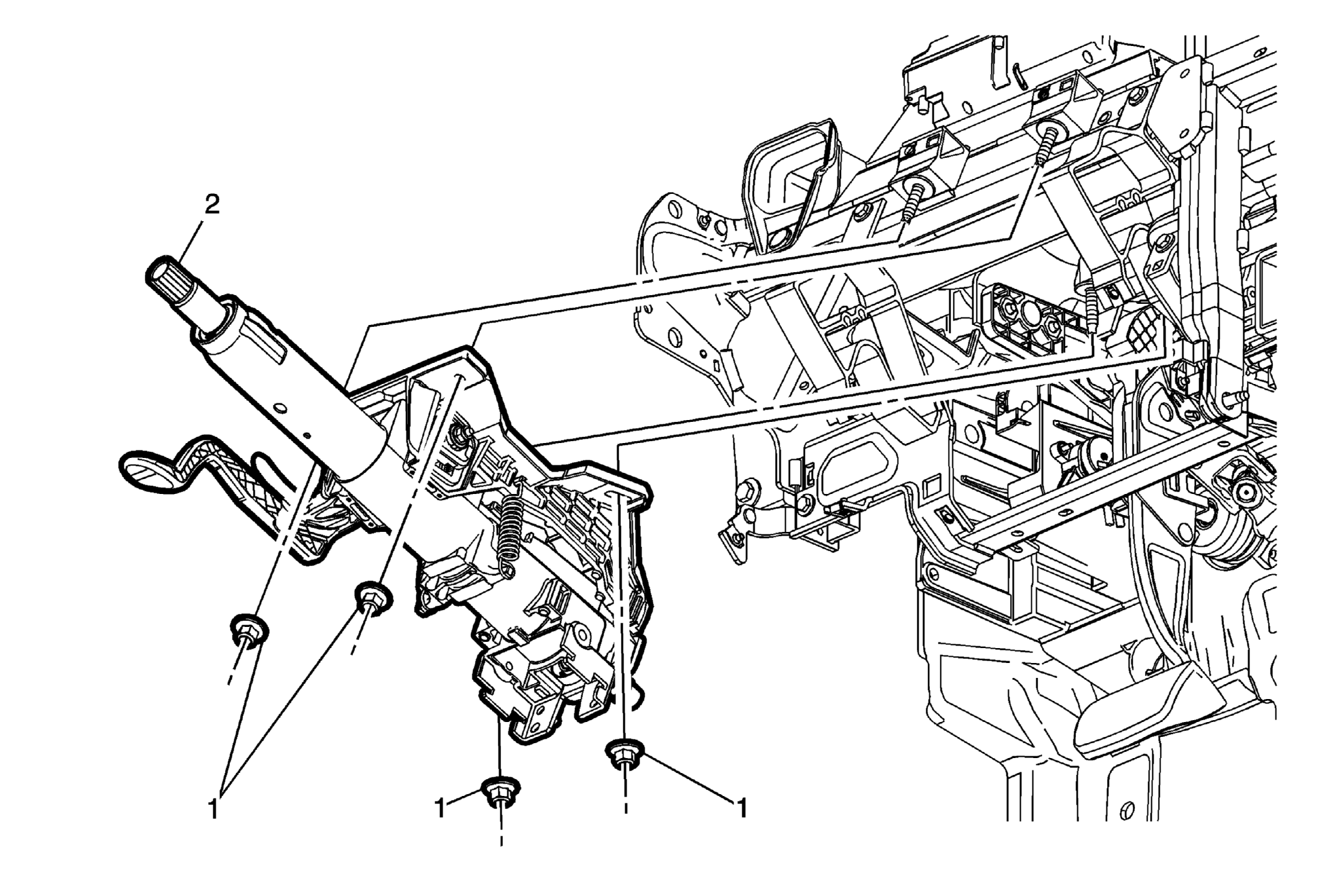

Fig 1: Steering Column
GM3581411Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Place match marks on the steering column shaft and the intermediate steering shaft and disconnect the intermediate steering shaft from the steering column. Refer to Intermediate Steering Shaft Replacement .
  2. Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1 Steering Column Nut (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Steering Column

Procedure

  1. If replacing the steering column, copy the match marks from the old steering column to the new steering column.
  2. If replacing the steering column, transfer components as necessary.
  3. After installation, center the steering angle sensor. Refer to Steering Angle Sensor Centering .
