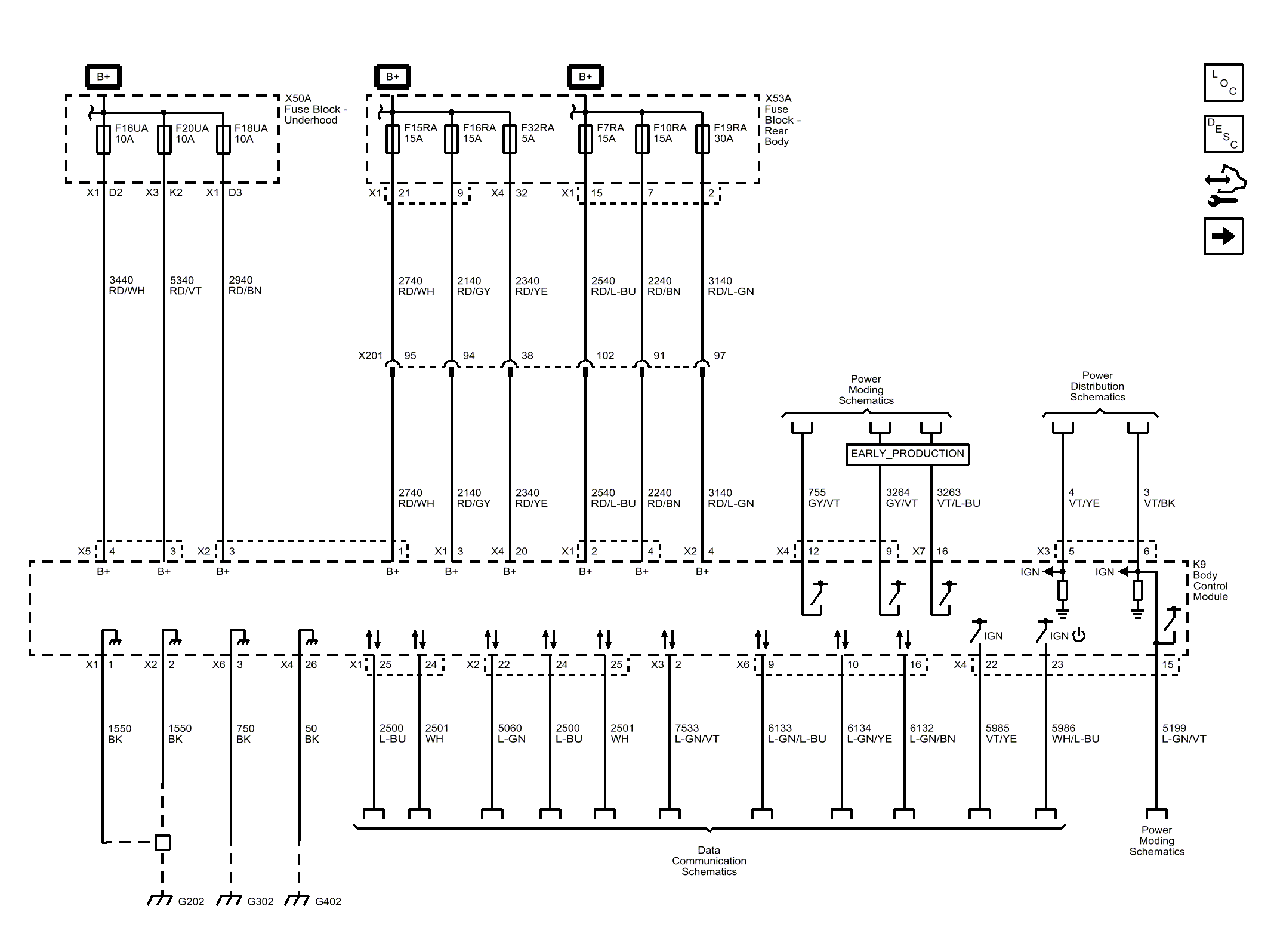

Home >> Chevrolet >> 2015 >> Corvette Z06, 2D Convertible, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Body Control System Schematics >> Power, Ground, and Data Communications
