Removal Procedure

  1. Electrical Connector - Disconnect

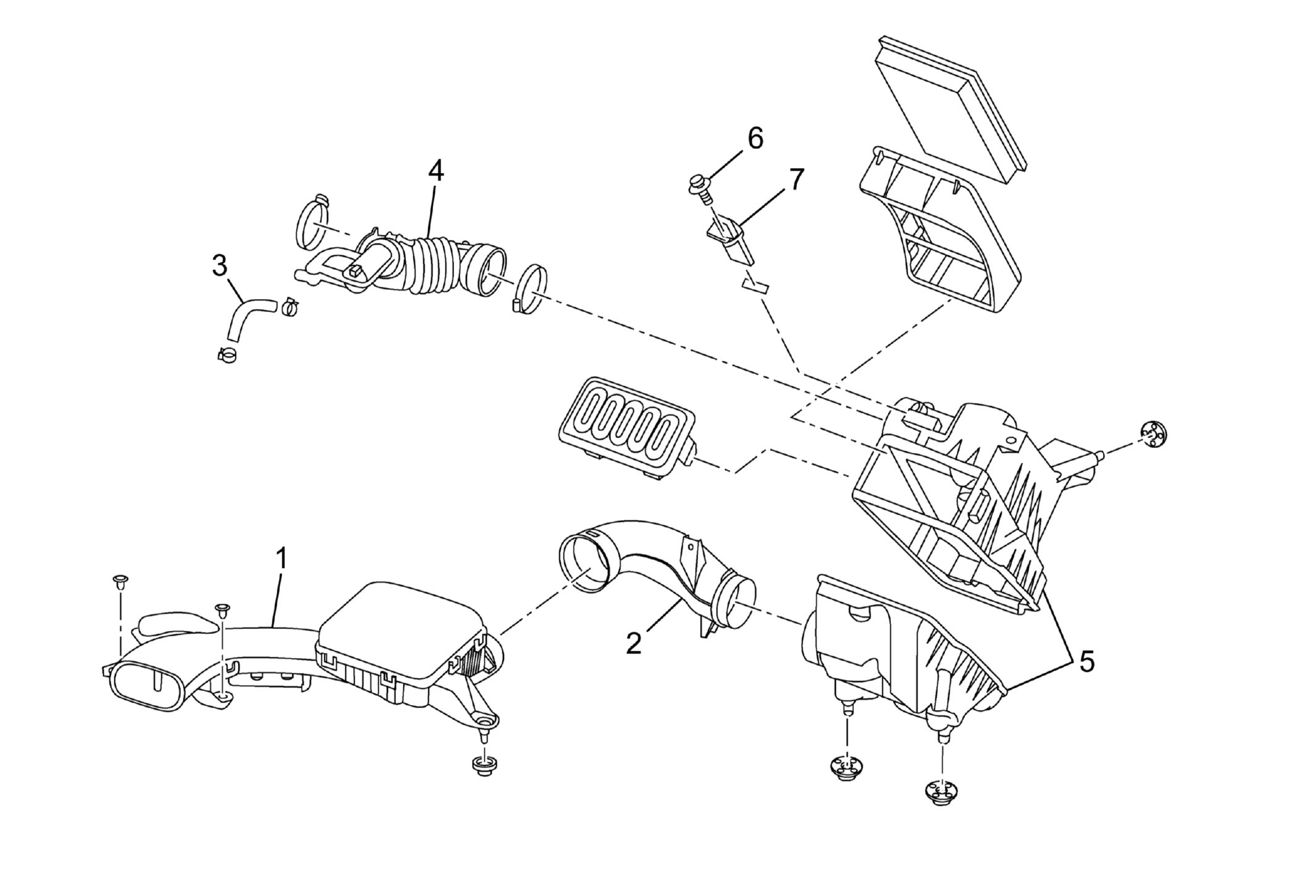

    GM3714320Courtesy of GENERAL MOTORS COMPANY
  2. Mass Airflow Sensor Bolt - Remove
  3. Mass Airflow Sensor - Remove
