Installation Procedure

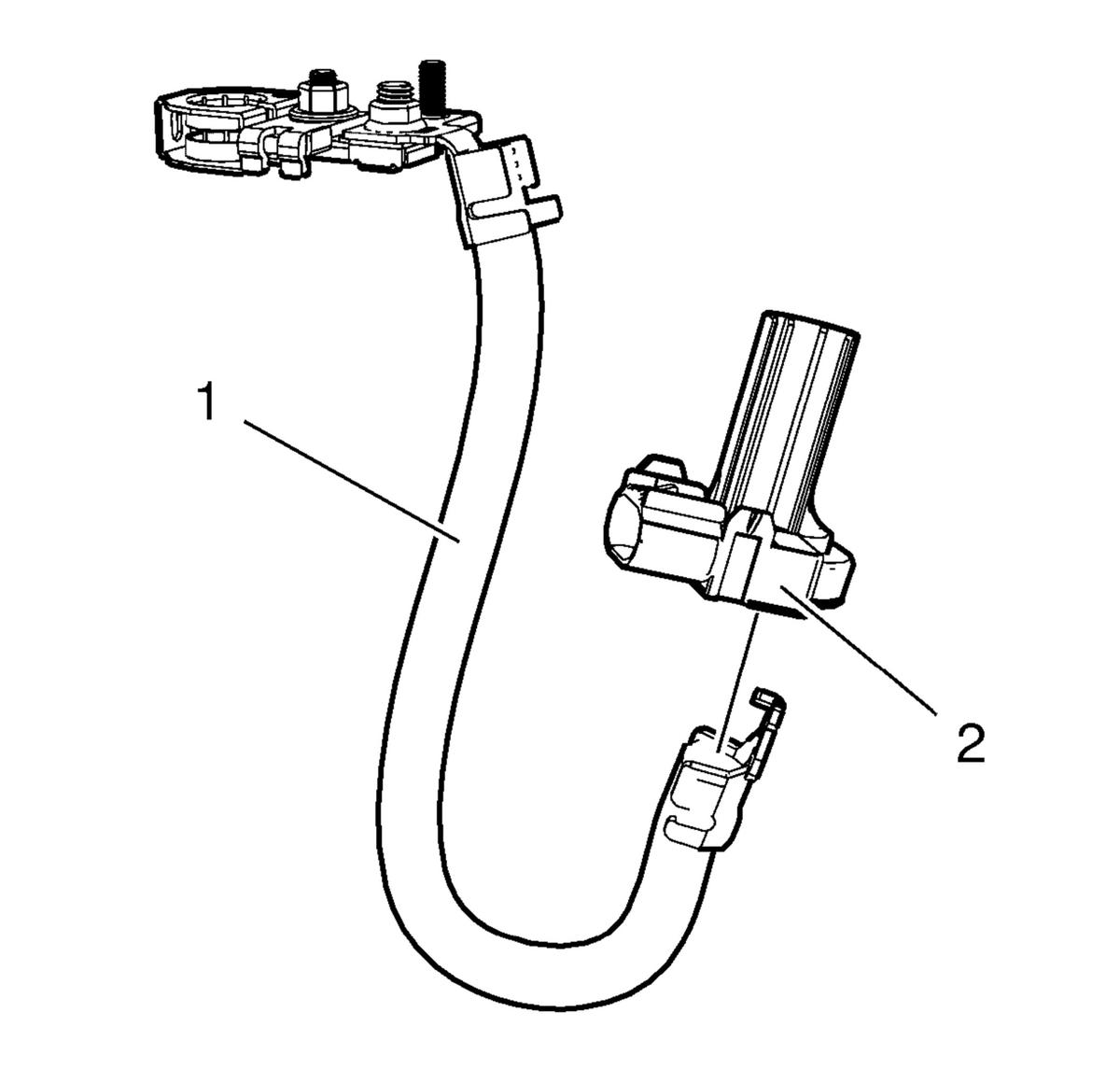

    Fig 1: Battery Negative Cable And Current Sensor
    GM2027819Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Note the orientation of the battery current sensor.

  1. Install the current sensor (2) to the battery negative cable (1).
  2. Install the battery negative cable. Refer to Battery Negative Cable Replacement .
