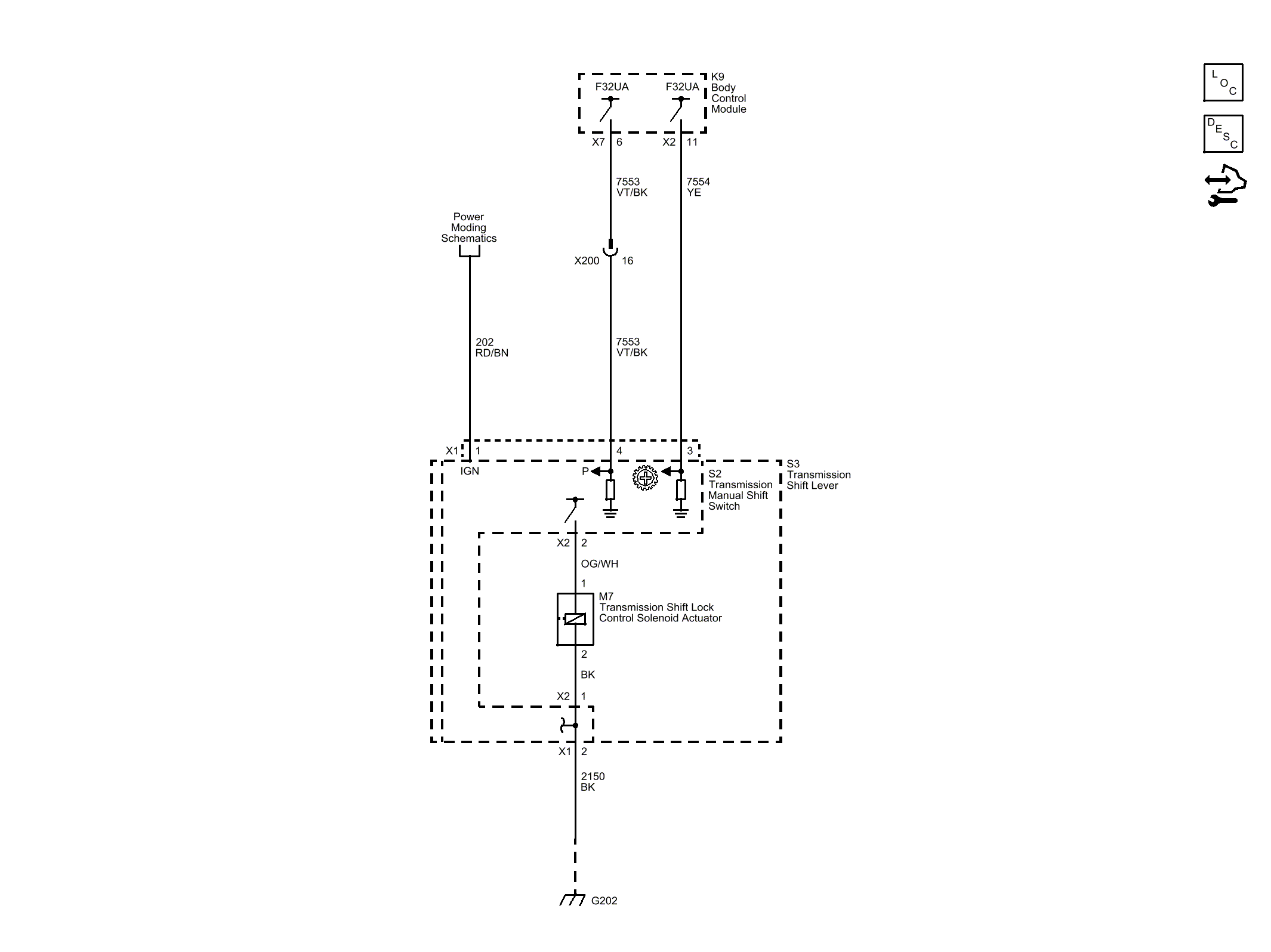

Home >> Chevrolet >> 2014 >> Cruze Diesel >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Lock Control System >> Schematic Wiring Diagrams >> Shift Lock Control Wiring Schematics >> MH8 Wiring Schematics
