Brake Control Brake Pedal Position Sensor
Brake Control Brake Pedal Position Sensor

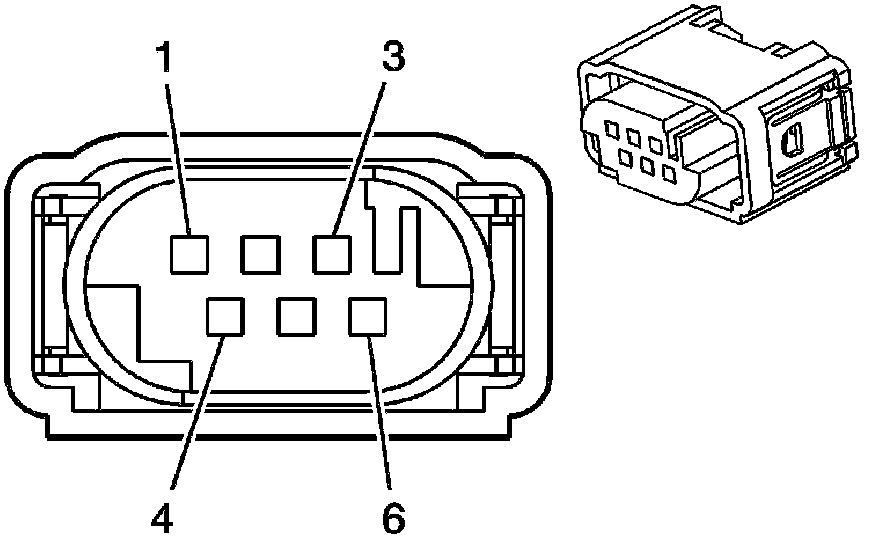

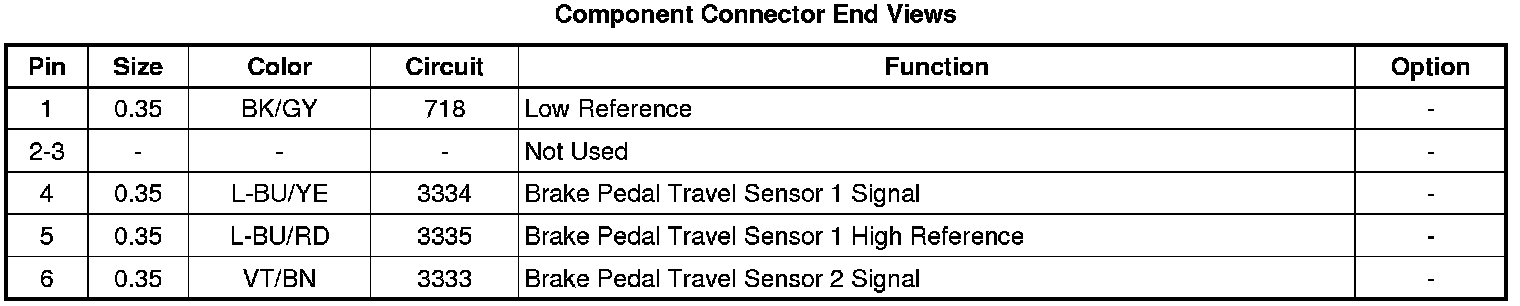

Component Connector End Views

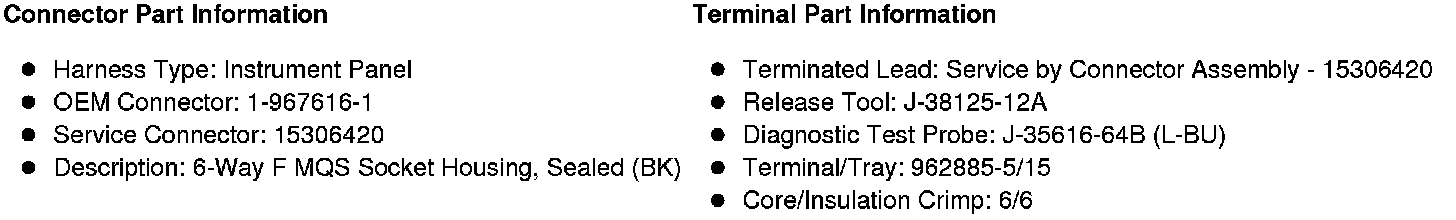

B201 Brake Control Brake Pedal Position Sensor
