Hybrid/EV Battery Interface Control Module 2 X2

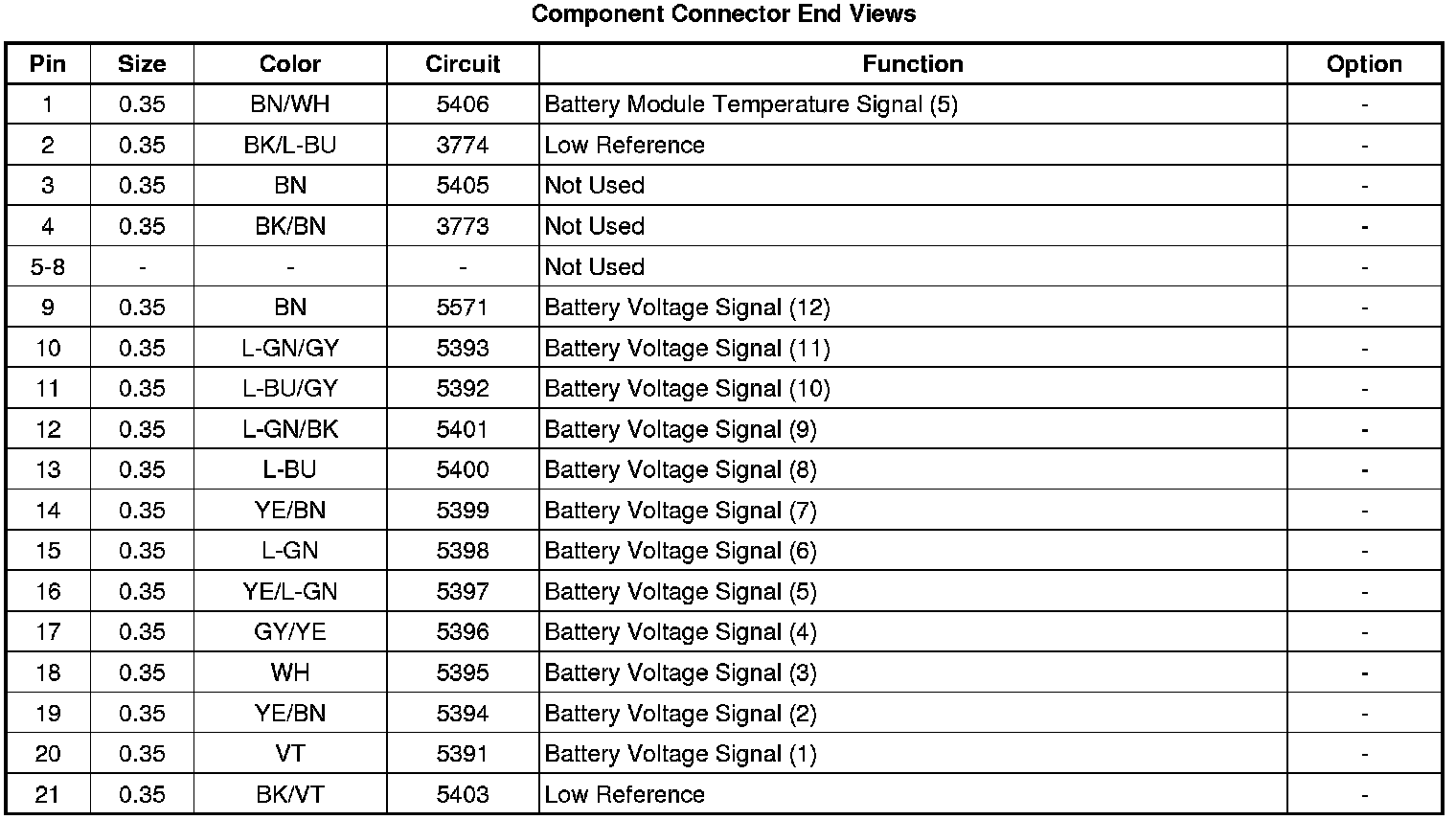

Component Connector End Views
K112B Hybrid/EV Battery Interface Control Module 2 X2
