Fuel Door Switch
Fuel Door Switch

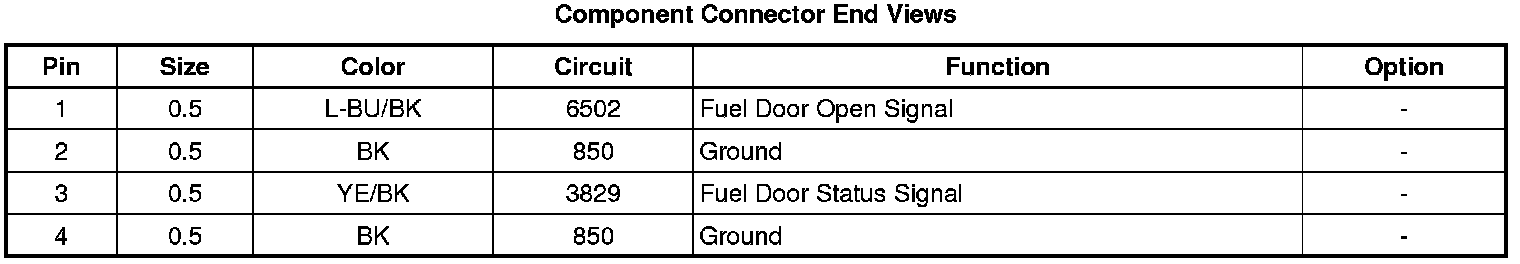

Component Connector End Views

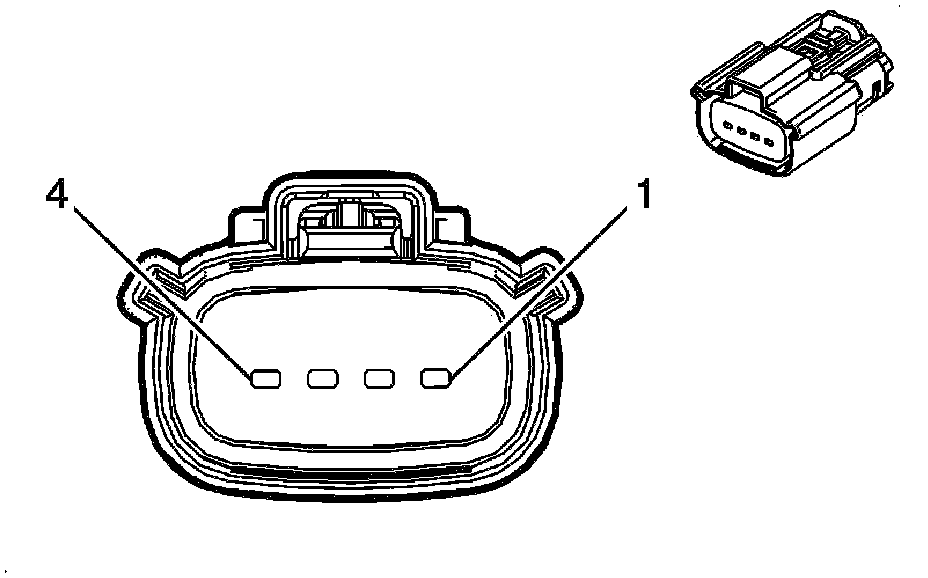

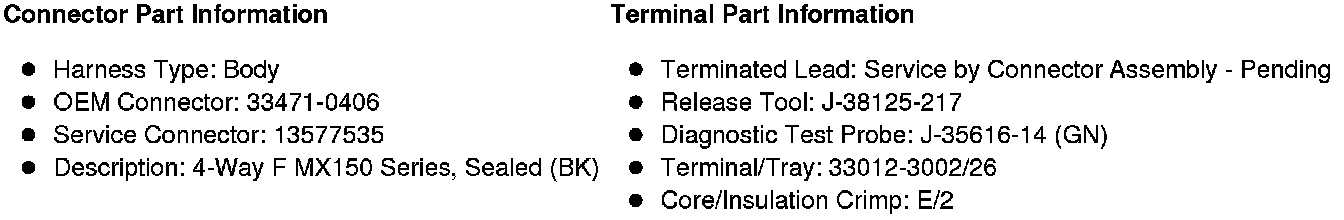

P208 Fuel Door Status Switch Assembly
