Body Control Systems




Body Control System Schematics

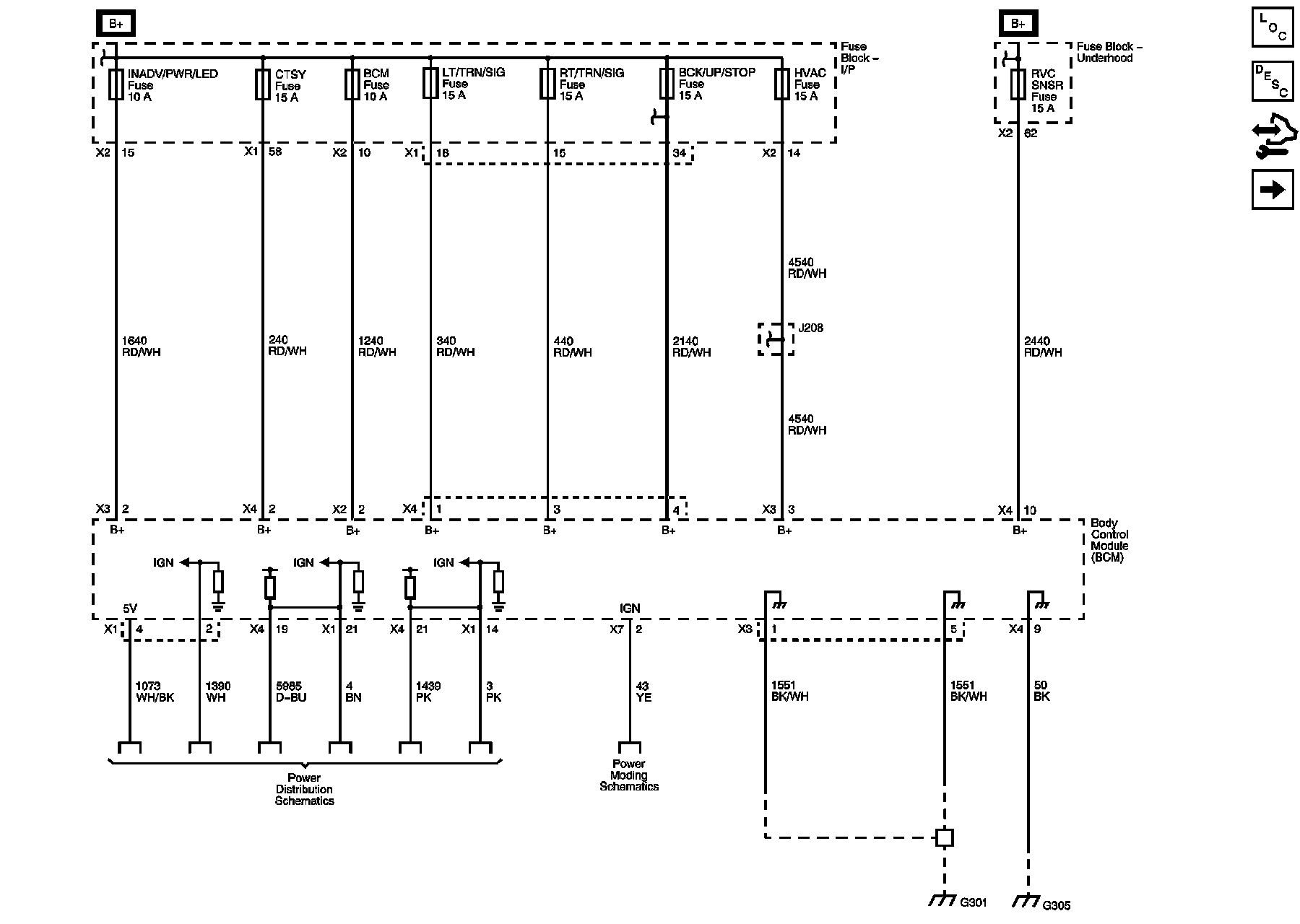

Power, Ground, and References to Power Distribution and Power Moding

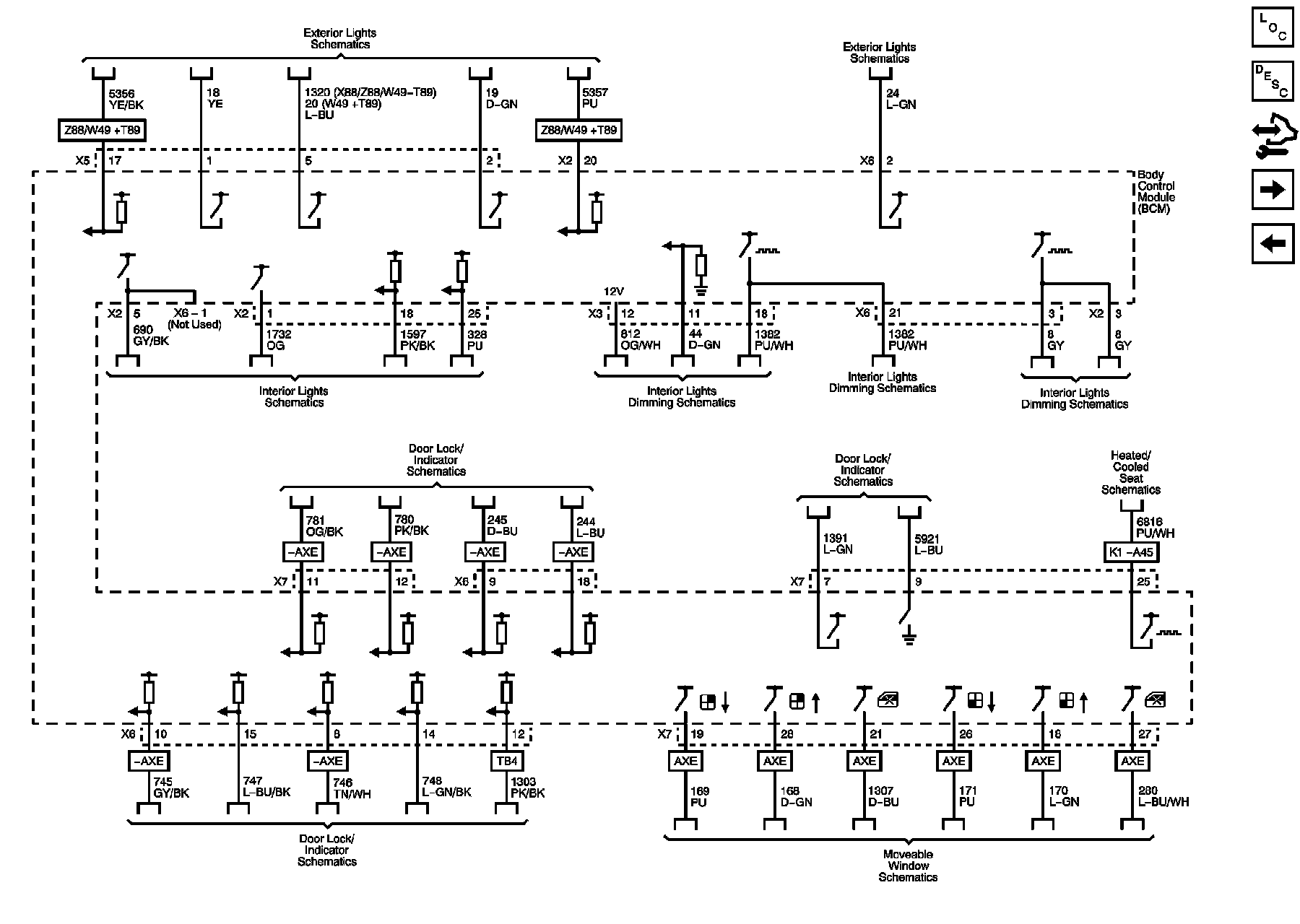

Subsystem References (1 of 3)

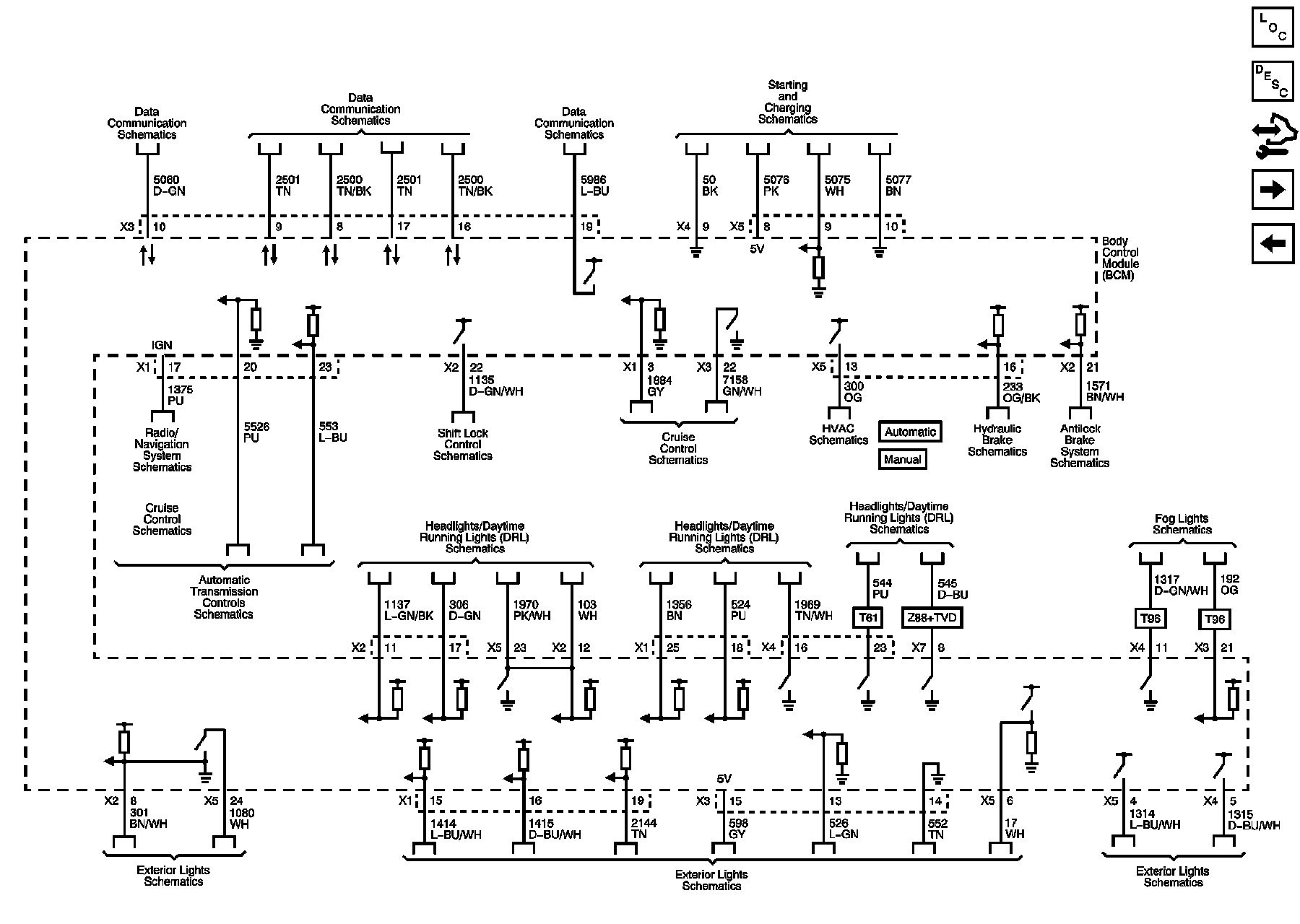

Subsystem References (2 of 3)






Subsystem References (3 of 3)
