Air Bag Control Module
>>
Inflatable Restraint Sensing and Diagnostic Module (SDM) X1
Inflatable Restraint Sensing and Diagnostic Module (SDM) X1
Component Connector End Views

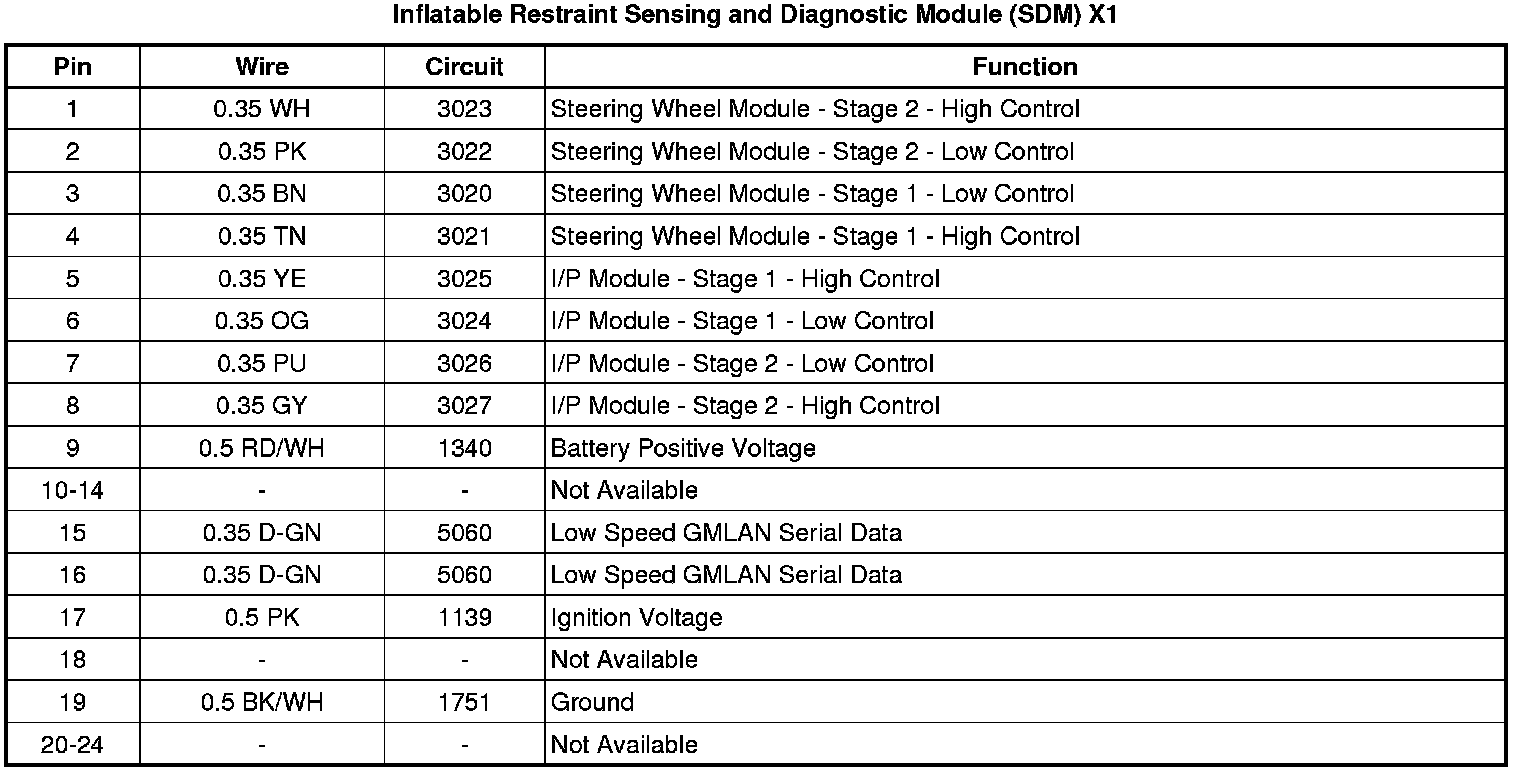

Inflatable Restraint Sensing and Diagnostic Module (SDM) X1
