Electrical Diagrams




Data Communication Schematics

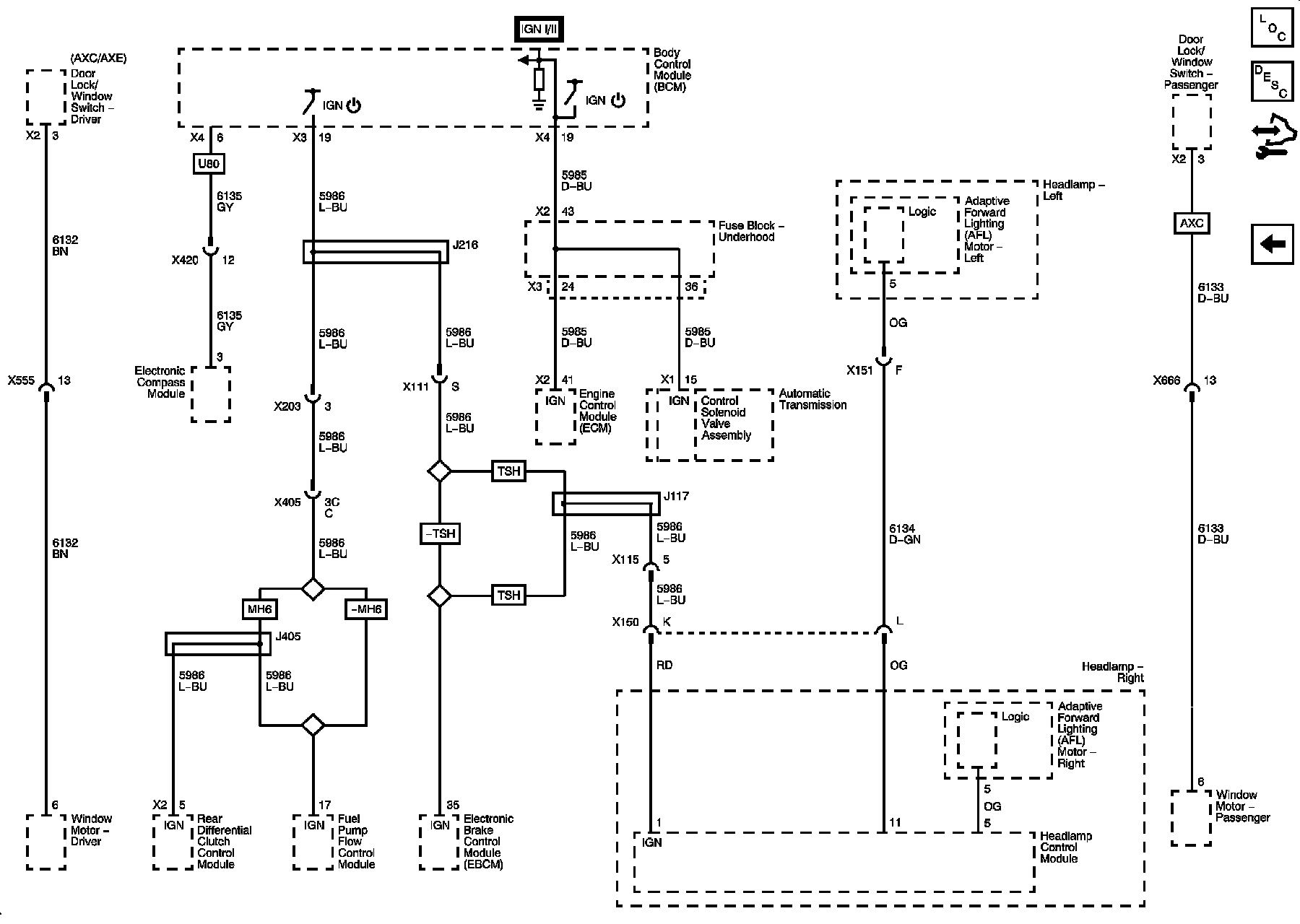

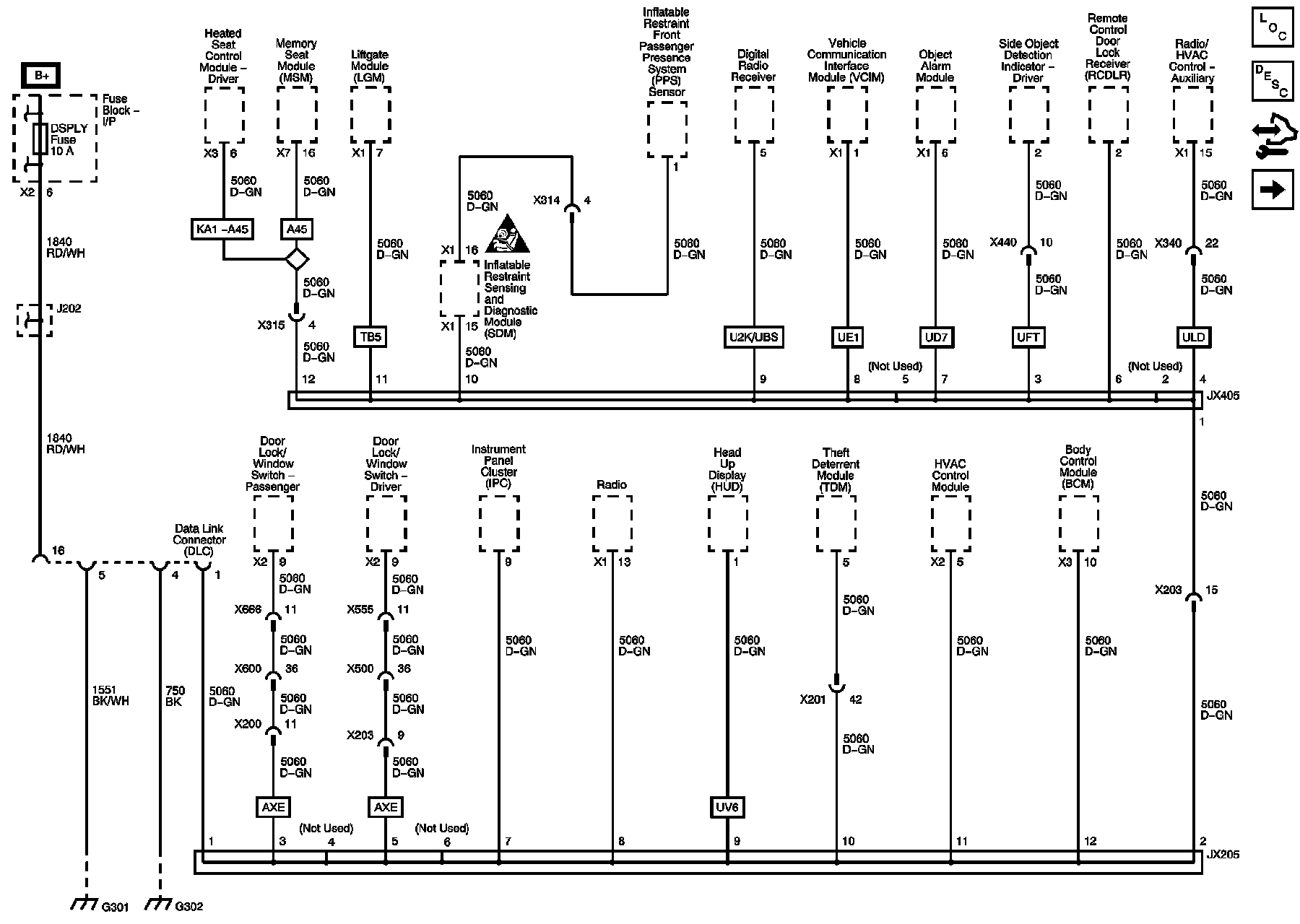

Low Speed GMLAN

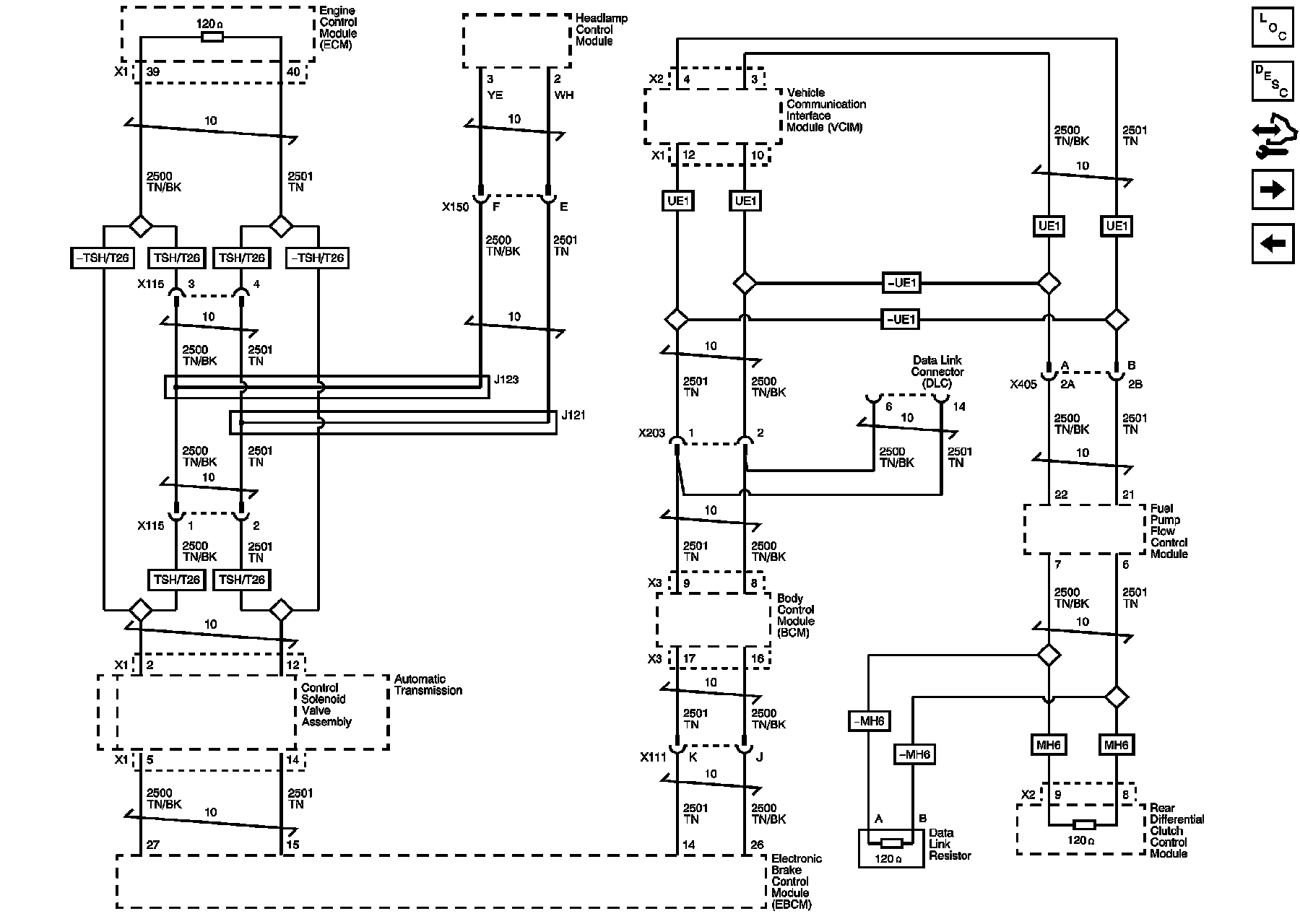

High Speed GMLAN






Communication Enable and Linear Interconnect Network (LIN)
